Flush Mount Installation Preparation
PREPARE THE INTERIOR

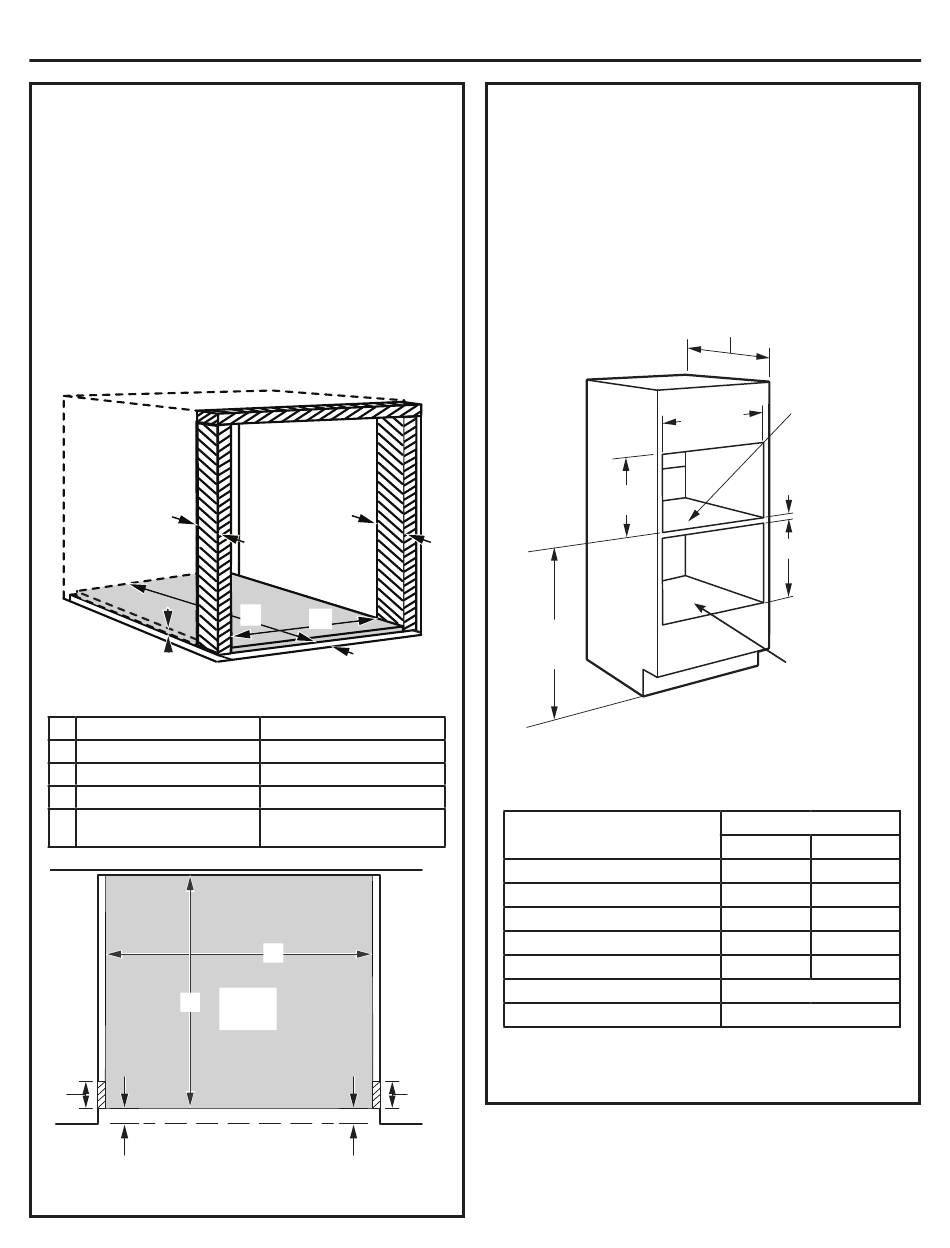

Cut and install side cleats:
• Cut side wood cleats to height of cabinet opening
and approx. 2-1/2" in depth. Install, on each side,
Dim. E (see table below) from the front face of the
cabinet.
Cut and install bottom cleat:
• Cut bottom wood cleat to a height of 1-1/8", a depth
of the cabinet minus Dim. E (see table below) and
a width of 25-1/4" to fit between side cleats. Install
onto the cabinet floor between the side cleats, push
it all the way back against cabinet wall and make
sure its front face aligns with the front faces of the
side cleats (Dim. E. see table below, gap from the
front cabinet face).
A
B
A Side and top cleats depth
B Bottom cleat height
C Bottom cleat depth
D Bottom cleat width
E All four cleats inset depth
C
A
Front Face of Cabinet
E
31-7000079 Rev.0
A
C
D
E
2-1/2" min.
1-1/8"
Cabinet depth minus Dim. E
25-1/4"
ZSB9131NSS: 1-3/8"
ZSB9132NSS: 1-7/16"
D
TOP
VIEW
E
PREPARE THE OPENING
The Advantium Built-In Oven can be installed
in combination with other Monogram Built-In
ovens. Always follow each product's Installation
Instructions to complete the installation.
Advantium Built-In Oven Installation:
Cut the opening in a cabinet to the dimensions
shown.
**20 1/2"
36-3/4"
Min.
• The support must be level and rigidly mounted,
flush with the bottom edge of the cutout.
Approved Flush Installation
Single Advantium
Over Warming Drawer
Over Oven
Over Oven and Warming Drawer
Over Advantium Built-In Oven
Double Advantium (side by side)
Under Cooktop or Countertop
** Top and bottom reveals are set to
A
Construct
.
23-1/2" min
solid bottom
- Min. 3/8"
plywood
supported on
all four sides.
Must be able to
F *
support weight
of oven and
contents.
2" min.
(3" recommended)
Per appliance
specs.
Oven or warming
drawer
Dimension F
1/8" Reveal 1/4" Reveal
30" 30- / "
1
4
30" 30- / "
1
4
30" 30- / "
1
4
30" 30- / "
1
4
30" 30- / "
1
4
See page 10
See page 10
/ ".
