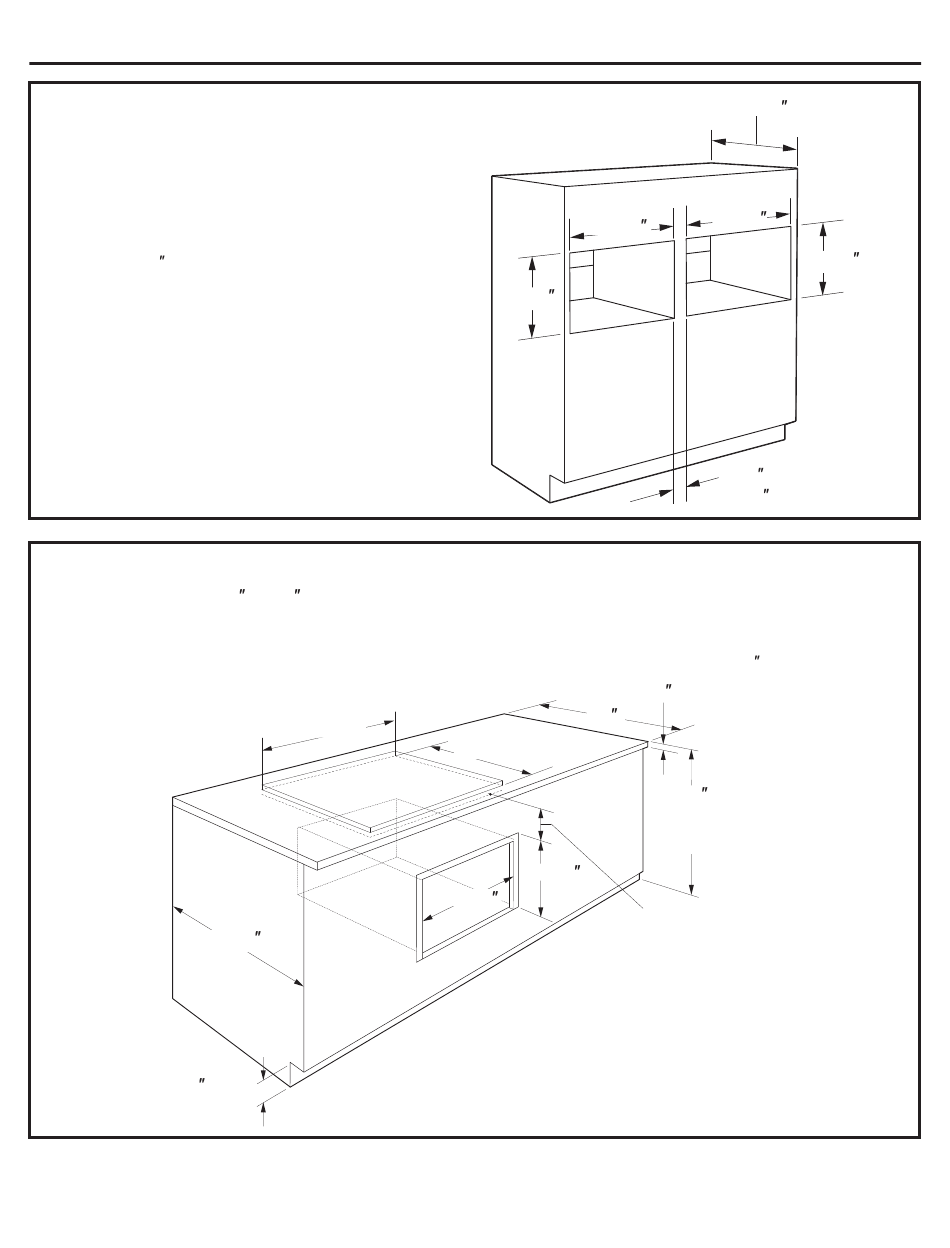

PREPARE THE OPENING
Installation beside another Advantium Built-In
Oven:
• If you are mounting an Advantium Built-In Oven beside
another, use the dimensions shown. The middle rail
separating the two openings may need to be larger
than the 4-1/2 minimum shown.
PREPARE THE OPENING
Installation under a 30 or 36 Cooktop or Countertop:
Gas or electric cooktops may be installed over this oven. See cooktop installation instructions for the cutout size.
See the label on top of the oven for approved cooktop models. This oven requires a separate, properly grounded
15-Amp, 120-Volt, 60Hz power supply. The cooktop requires a separate power supply. Use a 36 or wider base
cabinet.
23-1/2
4 High
Toekick
8
Standard Installation Preparation
(CONT.)
(CONT.)
Cooktop
25-1/4
17-1/2
25
Cooktop
17-1/2
25-1/4
Cooktop height including depth
of electrical box on some
models. Refer to cooktop
installation instructions.
No minimum clearance required
between cooktop and oven.
23-1/2
25-1/4
4-1/2 Min.
(5-1/2 Recommended)
1-1/2 Min.
36
Countertop
Height
17-1/2
