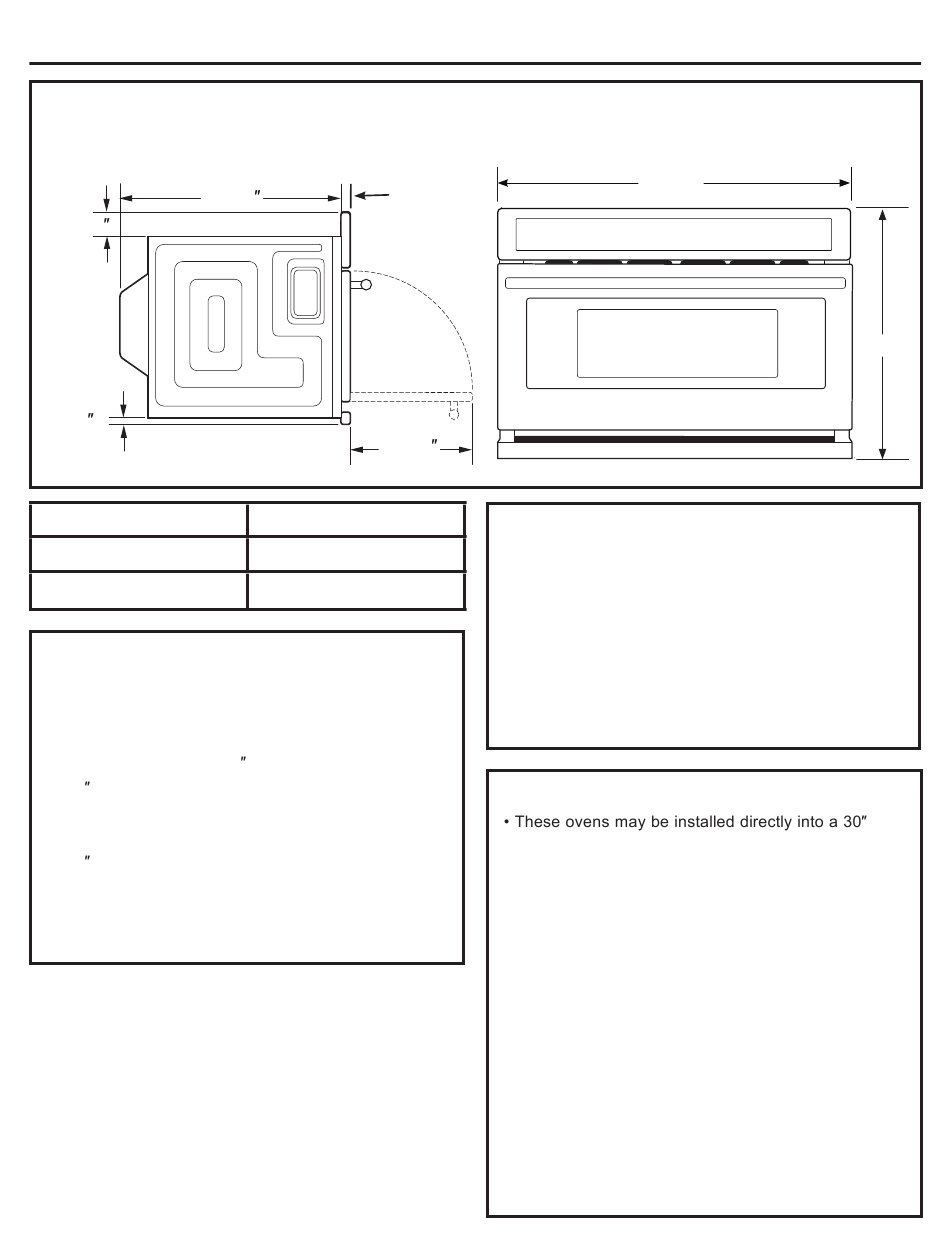

PRODUCT DIMENSIONS AND CLEARANCES

NOTE: Appearance will vary by model.
21-1/2
2-1/4
1
Model
ZSB9131NSS
ZSB9132NSS

TOOLS AND PARTS REQUIRED

)
(NOT SUPPLIED
• #2 Phillips screwdriver
• Hand-held drill
• High speed drill bit, 3/32 diameter
• 3/8 slot-head screwdriver
• Level
• Saw
• 3/8 min. plywood for floor (if required)
• Wood screws or other hardware for installing runner
or shelf to support oven (if required)
• Safety glasses or goggles
31-7000079 Rev.0
Design Information
Door Depth
See table
below
13 1/4
Door Depth
1-3/8"
1-7/16"
29-3/4"
FLUSH MOUNT INSTALLATION
This installation method allows for the unit face to be
inline with the cabinet face.
IMPORTANT: HIGH SKILL LEVEL IN CARPENTRY
IS REQUIRED. Non-standard cabinetry may be
required.
Flush installation of the oven will lead to the exposure
of the cabinet face frame edges.
Side cleats may be visible and should be a finished
surface.

ADVANCE PLANNING

wide oven cabinet with standard installation.
• Cutout height dimensions are different for
installations with an accessory storage drawer.
Make sure to use the correct cutout when preparing
the opening.
• Allow for clearance to adjacent corners, walls,
drawers, etc.
• Cabinets installed adjacent to wall ovens must have an
adhesion spec of at least 194ºF temperature rating.
The oven must be securely installed in a cabinet that
is firmly attached to the house structure. Weight on
the oven door could cause the oven to tip and result
in injury. Never allow anyone to climb, sit, stand or
hang on the oven door.
If installing the drawer accessory, the drawer must
be assembled to the oven prior to installation into
the cabinet. See the Accessory Storage Drawer
Assembly Instructions.
20-1/4"
3
