The following instructions provide the
necessary information for the proper
operation and preventive maintenance
of the Binks AA4000 Air-Assisted
Airless Spray Gun. Please read and
understand all information in this
document in order to get the maximum
performance from your new AA4000
spray gun.
In the AA4000 spray gun, the paint or
other material to be sprayed is preatom-
ized and forced through the carbide tip
by the typical 1,500-3,800 psi fluid
pressure (with capabilities up to 4,000
psi/275 bar). As a result of the preatom-
izing, the final shaping air supplied by
the air cap produces an exceptionally
fine and even spray pattern. The result
of this spray pattern is an even finish
that lends itself to products that need an
exceptionally fine finish with reduced
overspray and VOC emissions.
SPECIFICATIONS:
Maximum
Fluid Pressure:
4000 psi/275 bar
Maximum
Air Pressure:
100 psi/6.8 bar
Gun Body:
Forged Aluminum
Fluid Path:
Stainless Steel
Fluid
Shut Off Type:
Tungsten Carbide Seat standard
(UHMW Seat optional)
Fluid Inlet Size: 1/4" NPS(m) Thread
Air Inlet Size:
1/8" NPT(m) x 1/4" NPS(m)
D.M. Nipple
Gun Weight:
16-oz.

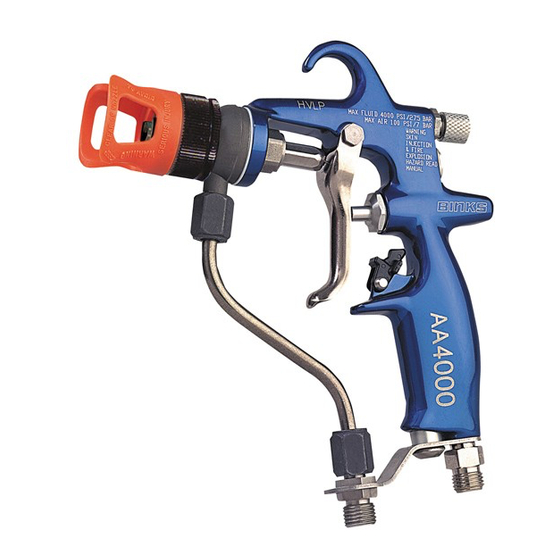

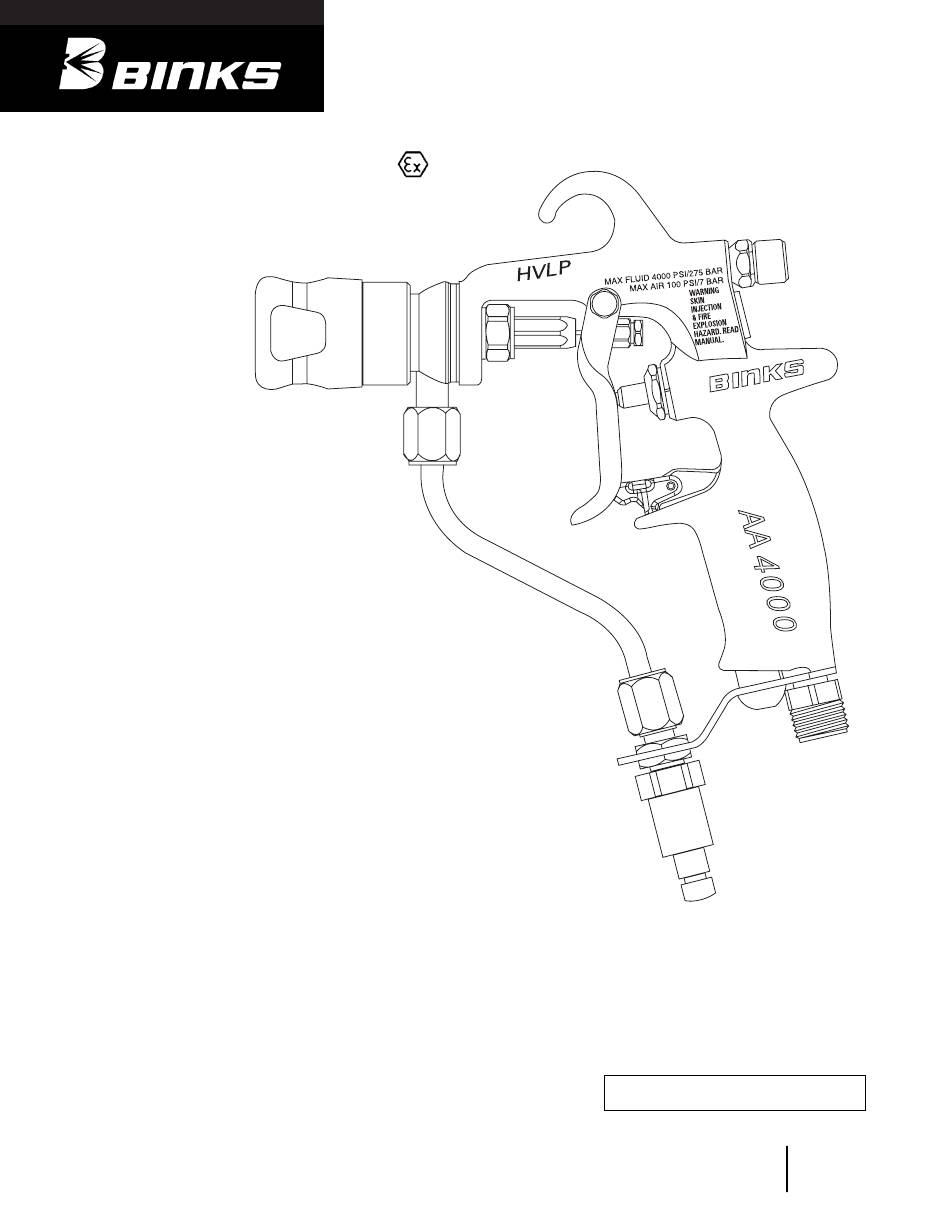

AA4000 AIR-ASSISTED
AIRLESS SPRAY GUN
II 2 G X
Product shown is covered by U.S. patent No. 6,276,616.
Foreign patents are issued or pending.
Replaces
Part Sheet
77-2776R-8
Part
Sheet
77-2776R-9

Advertisement

Table of Contents
loading

Related Manuals for Binks AA4000

Summary of Contents for Binks AA4000

  • Page 1 AA4000 spray gun. In the AA4000 spray gun, the paint or other material to be sprayed is preatom- ized and forced through the carbide tip by the typical 1,500-3,800 psi fluid pressure (with capabilities up to 4,000 psi/275 bar).
  • Page 2 Binks distributor. Spray from the gun, hose leaks, or ruptured components can inject fluid into • Do not alter or modify this equipment. Use only genuine Binks parts. your body and cause extremely serious injury, including poisoning or the need •...
  • Page 3 SPRAY GUN SET-UP 1. Connect your high-pressure airless fluid hose to the TYPICAL HOOK-UP gun fluid inlet and tighten securely. Oil and Water 2. Connect your air hose to the gun air connection and Grounding Pump Extractor Wire tighten securely. 3.

  • Page 4: General Troubleshooting

    IMPORTANT REGULATORY NOTE The AA-4000 Air-Assisted H.V.L.P. hand spray gun combines the proven efficiency of the Binks compliant spray guns with air-assisted atomization to yield a reliable, carefully engineered compliant spray gun. With 25' of 5/16" I.D. air hose and regulator set at only 20 p.s.i.

  • Page 5: Spray Pattern Troubleshooting

    Air in paint supply line. Check and tighten pump siphon hose connections, bleed air from paint line. Attempting to “feather” (Partially Cannot feather with an AA4000 gun. trigger gun). Striping Spray – Fingers Carbide tip partially plugged. Clean or replace carbide tip assembly.

  • Page 6: Air Valve Replacement

    These materials are staff. WIRE AND BALL ASSEMBLY AND SEAT REPLACEMENT Refer to assembly drawing on page 7 to locate numbered 5. Remove the AA4000 needle packing cartridge (8). items. 6. Carefully install new AA4000 needle packing 1. Engage the trigger safety.
  • Page 7 AA4000 AIR-ASSISTED AIRLESS SPRAY GUN note below (Alternate) (Alternate) NOTE Do not overtighten for ease of filter replacement. Adequate torque required is 5 – 6 ft. lbs.

  • Page 8: Spray Tip Selection Charts

    U.S./Canada Technical Service Office: WARRANTY 195 Internationale Blvd., Glendale Heights, IL 60139 Toll-Free Telephone: 1-888-992-4657 (U.S.A. and Canada only) This product is covered by Binks’ 1 Year Limited Warranty. Toll-Free Fax: 1-888-246-5732 77-2776R-9 Revisions: (P2) Replaced warnings. 12/07 © 2007...
