Binks AA4400M Instructions Manual

English: Pages 1 – 12
Español: Páginas S-1 – S-12
Français: Pages F-1 – F-12
Deutsch: Seiten G-1 – G-12
Italiano: Pagine I-1 – I-12
Polska: Strony P-1 – P-12
The following instructions
provide the necessary
information for the proper
operation and preventive
maintenance of the Binks

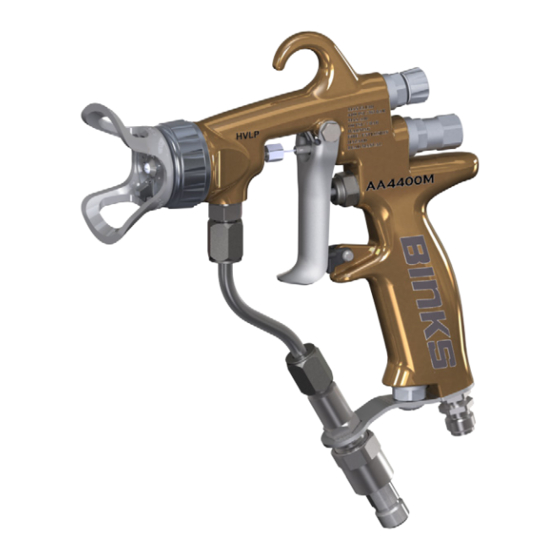

AA4400M Air-Assist Airless
Spray Gun. Please read and
understand all information in this
document in order to get the
maximum performance from
your new AA4400M spray gun.
In the AA4400M spray gun, the
paint or other material to be
sprayed is pre-atomized and
forced through the carbide tip by
the typical 1,600-3,800 psi fluid
pressure (with capabilities up to
4,400 psi/303 bar). As a result of
the pre-atomizing, the final
shaping air supplied by the air
cap produces an exceptionally
fine and even spray pattern. The
result of this spray pattern is an
even finish that lends itself to
products that need an
exceptionally fine finish with
reduced overspray and VOC
emissions.

SPEcIfIcatIonS:

Maximum
Fluid Pressure: 4400 psi /303 bar
Maximum
Air Pressure: 100 psi /6.8 bar
Gun Body: Forged Aluminum
Fluid Path: Stainless Steel
Fluid Seat: Tungsten Carbide Seat
Fluid Inlet Size: 1/4" NPS(m) Thread
Air Inlet Size: 1/4" NPS(m) Thread
Gun Weight: 17.28 oz./ 490 g
(without Tip, Aircap, Guard)
READ ALL InstRuCtIons bEfoRE opERAtInG tHIs bInKs pRoDuCt
AA4400M

AIRLEss spRAy Gun

(0909-4400-XXXXXX)
sEE pAGE 10 foR Gun AssEMbLy pARt nuMbER
(WItH fLAt tIp/tWIst tIp optIon,
fAn sIZE ADJustMEnt fEAtuRE AnD
HVLp/tRAns-tECH tECHnoLoGy)
