• USB 2.0 Host LED — When the transmitter and receiver are connected through the SFP port and a USB 2.0 Host
device is connected to the transmitter, the LED remains lit to indicate an active connected device.
USB 2.0 1 LED — When the transmitter and receiver are connected through the SFP port and a USB 2.0 Host
•
device is connected to the transmitter, the LED remains lit to indicate an active connected device.

Reset

Press the rear panel recessed reset button (see figure 1, on page 1) if the FOX3 transmitter or receiver firmware is corrupted
or the unit gets disconnected during the update process. The reset allows the product to revert to the factory loaded firmware
(see the FOX3 T/R 301 and FOX3 T/R 311 User Guide, available at www.extron.com, for details on the reset modes).

Configuration and Control

See the FOX3 T/R 301 and FOX3 T/R 311 User Guide for details on operating and monitoring the transmitter and receiver using
SIS commands, Extron Product Configuration Software, or the internal web pages.

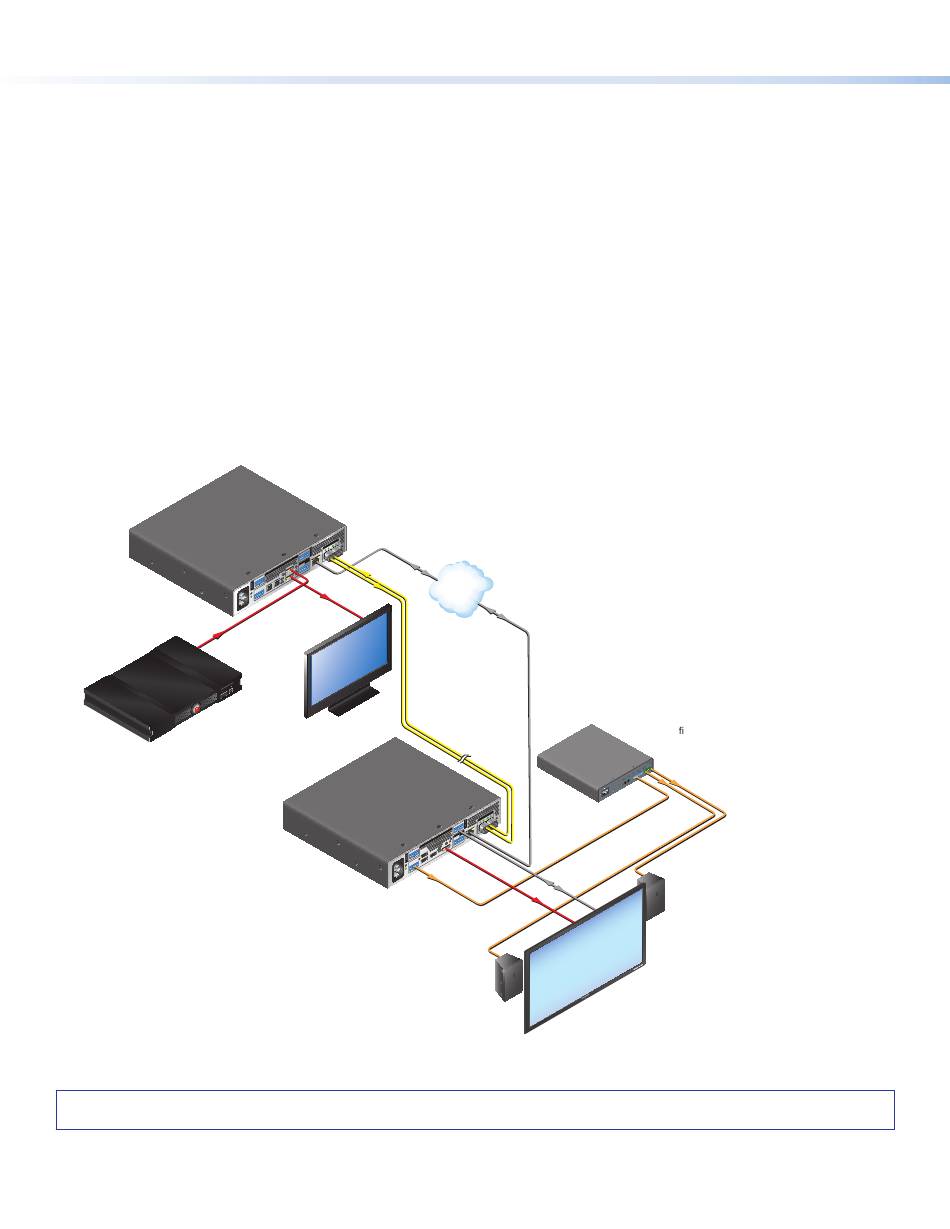

Application Diagram

HDMI Input
S
TU
STA
AY
PL
R
WE
PO
B
US
RD
CA
SD
4K Media Player
