Extron electronics FOX3 SR 301 PC Setup Manual

FOX3 SR 301 PC, FOX3 SR 311 PC,
and FOX3 SR 201 PC • Setup Guide
IMPORTANT NOTE:
www.extron.com
Go to
product to the power source.
The Extron FOX3 PC Fiber Optic scaling receivers are modular, compact single slot boards for the Extron PowerCage 411 that receive
lossless 4K @ 60 Hz video, audio, RS-232 control, and USB HID and USB 2.0 over fiber. This guide provides instructions for an experienced
installer to install and operate the devices.
WARNING: The FOX3 PC scaling receivers output continuous invisible light (Class 1 rated), which may be harmful to the eyes;
use with caution. Plug the attached dust caps into the optical transceivers when the fiber cable is unplugged.
CLASS 1 LASER PRODUCT, see the PowerCage 411 Series User Guide, at www.extron.com.
AVERTISSEMENT : Le FOX3 PC émetteur émet une lumière invisible en continu (conforme à la classe 1) qui peut être dangereux
pour les yeux, à utiliser avec précaution. Branchez les protections contre la poussière dans l'ensemble émetteur/récepteur lorsque le
câble fibre optique est débranché.
Produit laser de classe 1, voir le PowerCage 411 Series User Guide sur
Installation

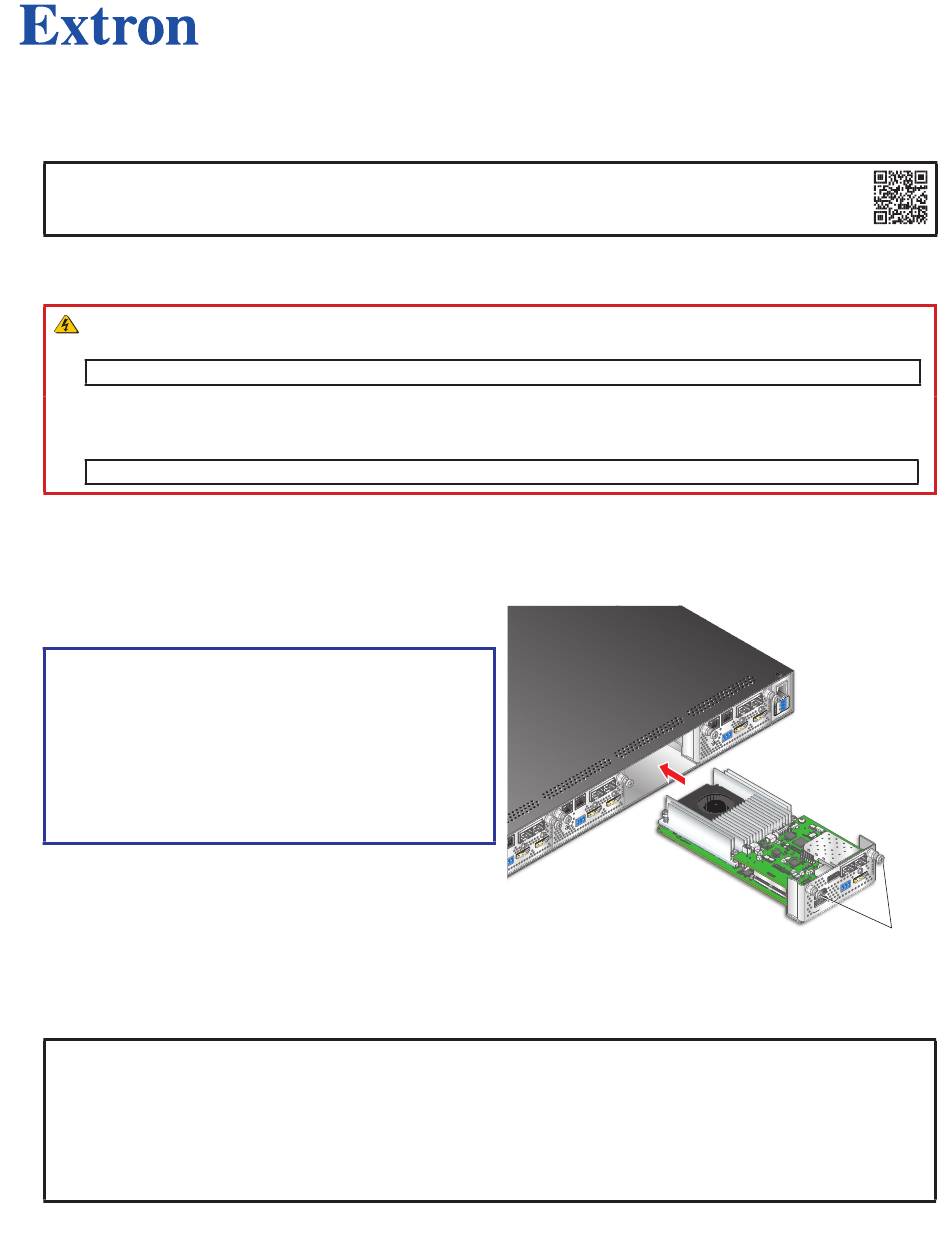

Board Installation
Install the scaling receiver into a PowerCage 411 enclosure as
required.
ATTENTION:
•
Use ESD precautions when installing a board to avoid
damaging it. Keep the board in the anti-static bag until
it is needed. Use proper grounding techniques during
installation.
•
Prenez les précautions ESD lorsque vous installez une
carte afin d'éviter de l'endommager. Gardez la carte dans le
sachet dépoussiérant jusqu'à ce que vous en ayez besoin.
Utilisez des techniques de mise à la terre correctes pendant
l'installation.
1.
If applicable, remove any blank plates or previously installed
boards from the PowerCage 411 enclosure to fit the board.
2.
With the ports facing away from the PowerCage 411 enclosure
and the screws positioned at the top, align the bottom board
edges with the posts of the desired slots on the PowerCage 411
enclosure.
3.
Carefully slide the board into the slot and push it firmly into place.
4.
Tighten the screws with a tool to secure the board to the
enclosure.
NOTES:
•
FOX3 endpoints are not backwards compatible with FOX or FOX II endpoints.
•
A FOX3 endpoint with a LinkLicense cannot pass uncompressed 4K @ 60 Hz video signal to a FOX3 endpoint without the
LinkLicense.
•
PowerCage boards are hot-swappable.
•
Ensure the boards are flush with the rear of the enclosure and the screws are tightened securely before applying power.
•
Each slot is independent from other slots. The type of board installed in a slot or the order of slots filled does not impact boards
installed in other slots.
for the complete user guide, installation instructions, and specifications before connecting the
www.extron.com
B
A
IN
O U T
IN
T
O U
T
O U
O P
.0 L O
B 2
U S
U T
ID 2
B H -2 3 IN P
R S M I
U S H D
IN
B D IO
A U G
R x
T x
A
IN
T
O U
IN
T
O U
T
O U
O P
B 2 .0 L O
U S
2 U T Align board and
-2 3 IN P
R S M I
H D
G
R x
T x
slide into slot.
(en anglais).
B
A
IN
T
O U
IN
T
O U
T
O U
O P
.0 L O
B 2
U S
U T
ID -2 3 2 IN P
B H
R S M I
U S
H D
IN
D IO
A U G
R x
T x
B
A
IN
T
O U
.0
B 2
IN
U S
T
O U
1
A -2 3 2
0 m O U T
R S
5 0 M I
H D
B H ID
G
U S R x
T x
1
2
A E S
0 m
V IC
1 0 D E
Screws
(2 per board)
1
