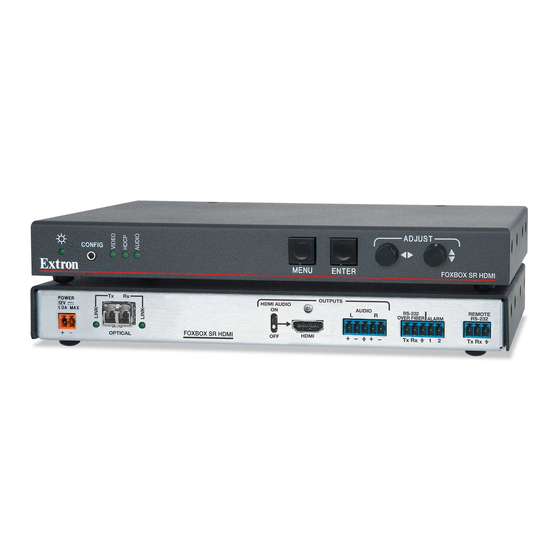

FOXBOX SR HDMI • Setup Guide
This guide provides quick start instructions for an experienced installer to set up and operate the
Extron FOXBOX SR HDMI scaling fiber optic receiver.
CLASS 1 LASER PRODUCT, see the FOXBOX SR HDMI User Guide at www.extron.com.
CAUTION
:
These units output continuous invisible light, which may be harmful to the eyes; use with caution. For additional safety, plug
•
the attached dust caps into the optical transceivers when the fiber optic cable is unplugged.
Ces produits émettent une lumière invisible continue, qui peut être dangereuse pour les yeux ; à utiliser avec précaution.
•
Pour une sécurité renforcée, associez les bouchons anti-poussière à l'ensemble émetteur/récepteur optique lorsque le câble
fibre optique est débranché.

Installation

Step 1 — Mounting
Turn off or disconnect all equipment power
sources and mount the receiver as required.
Step 2 — Throughput Connections

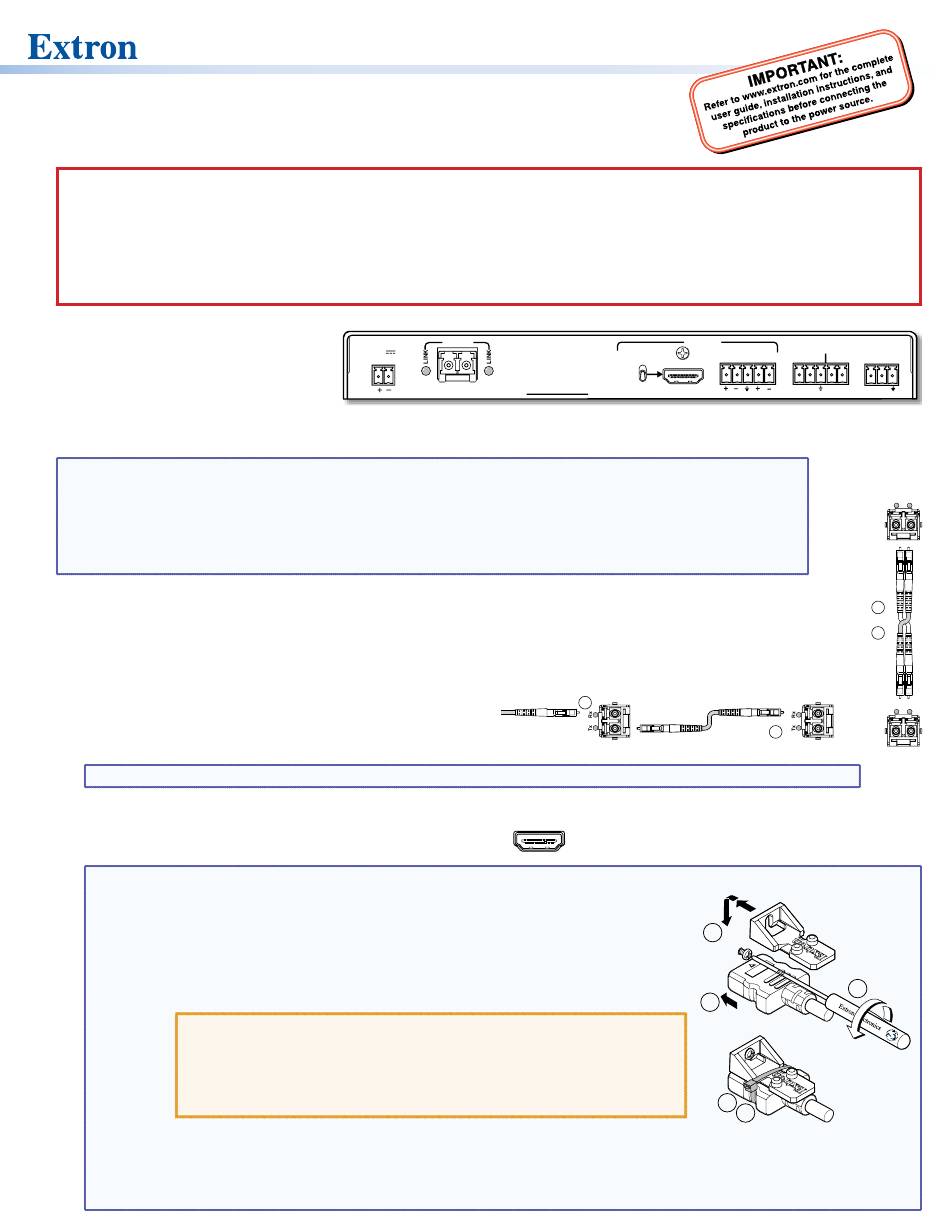

NOTES: See the two fiber cable connection drawings below. You can connect the transmitter and one or more
•
receivers in one of three ways:
One way (transmitter to receiver) only, perform step 2a.
•
Two way (transmitter to receiver and return), perform steps 2a and 2b.
•
One way (transmitter to receiver) with daisy chain (receiver to receiver), perform steps 2a and 2c.
•
HDCP compliance requires both fiber cables.
•
a. Connect the fiber between the Tx port on the transmitter and the Rx port on the receiver.
b. If you want the receiver to send return serial data (such as responses from a controlled device) to the transmitter,
connect a cable between the Tx port on the receiver and Rx port on the transmitter.
c. If you want a receiver to daisy-chain the optical signal to another receiver (up to 10 receivers in a daisy chain):
• Connect the receiver Tx fiber cable to Rx on another receiver.
• Set each receiver to daisy chain mode. See
and Daisy Chain
Tx Link and Rx Link LEDs — When lit, the link is active (light
is output [Tx LED] or received [Rx LED]).
NOTE: The Link LEDs indicate transmission of light only, not whether there is data encoded in the optical link.
Step 3 — Output Connections
a. Connect an HDMI video display to the HDMI Output connector.
NOTE: Use a LockIt Lacing Bracket to securely fasten an HDMI cable to the receiver as follows.
1. Plug the HDMI cable into the panel connection
2. Loosen the HDMI connection mounting screw from the panel enough to allow
the LockIt lacing bracket to be placed over it. The screw does not have to be
removed.
3. Place the LockIt lacing bracket on the screw and against the HDMI connector,
then tighten the screw to secure the bracket.
ATTENTION:
•
•
4. Loosely place the included tie wrap around the HDMI connector and the LockIt
lacing bracket as shown.
5. While holding the connector securely against the lacing bracket, use pliers or similar tools to tighten the tie wrap, then
remove any excess length.
POWER
12V
1.0 A MAX
"Return Link
Modes," on the next page.
Do not overtighten the HDMI connector mounting screw. The shield it
fastens to is very thin and can easily be stripped.
Ne serrez pas trop la vis de montage du connecteur HDMI. Le blindage
auquel elle est attachée est très fin et peut facilement être dénudé
Tx Rx
HDMI AUDIO
OPTICAL FOXBOX SR HDMI
2a
From Transmitter
or Daisy-Chained
Receiver
HDMI
OUTPUTS
AUDIO
RS-232
OVER FIBER ALARM
ON L R
OFF Tx Rx
HDMI
Receiver
3c
Receiver
3
1
3
4
5
REMOTE
RS-232
1 2
Tx Rx
Tx Rx
Transmitter
2a
and
2b
Receiver
Tx Rx
2
