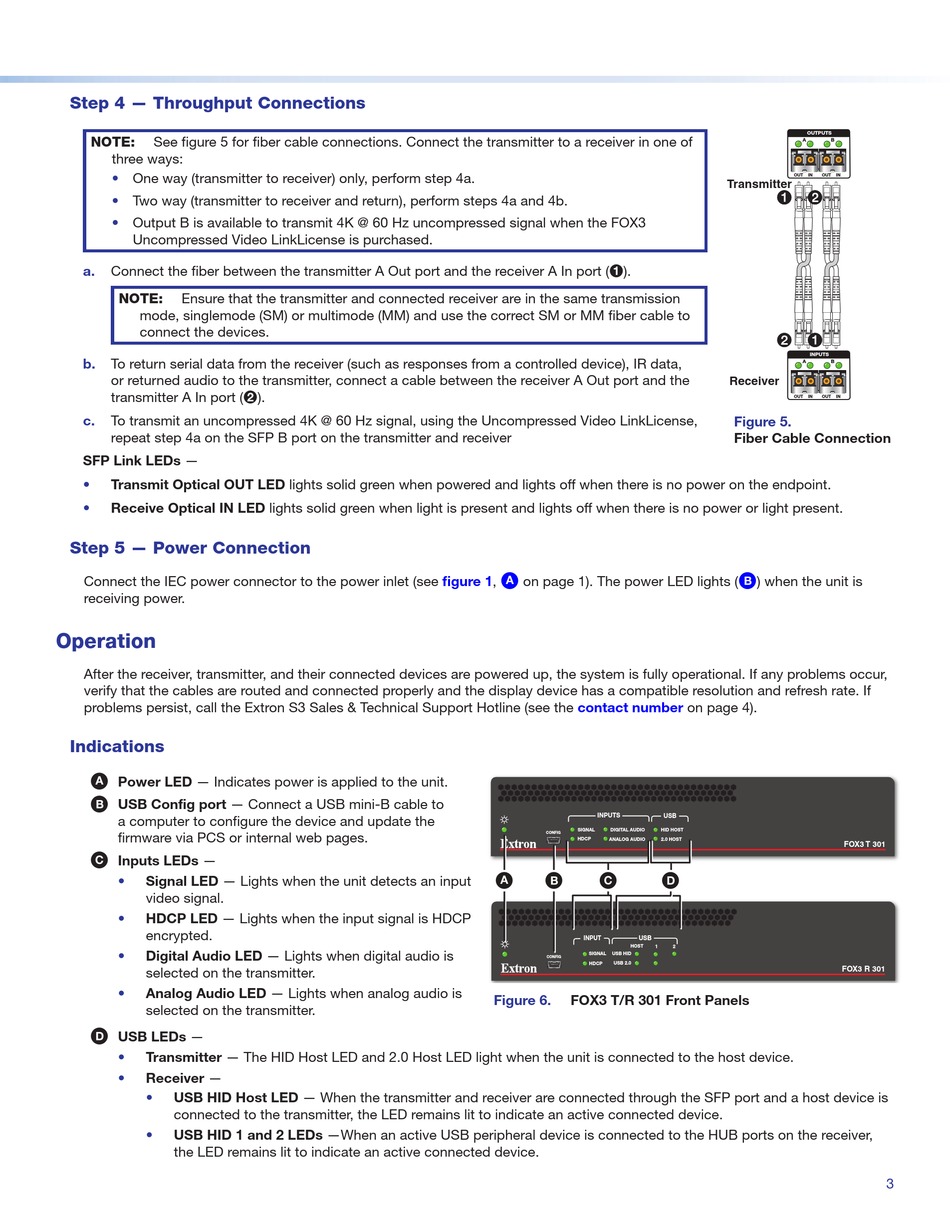

Step 4 — Throughput Connections
NOTE: See figure 5 for fiber cable connections. Connect the transmitter to a receiver in one of
three ways:
• One way (transmitter to receiver) only, perform step 4a.
• Two way (transmitter to receiver and return), perform steps 4a and 4b.
• Output B is available to transmit 4K @ 60 Hz uncompressed signal when the FOX3
Uncompressed Video LinkLicense is purchased.
a. Connect the fiber between the transmitter A Out port and the receiver A In port (
NOTE: Ensure that the transmitter and connected receiver are in the same transmission
mode, singlemode (SM) or multimode (MM) and use the correct SM or MM fiber cable to
connect the devices.
b. To return serial data from the receiver (such as responses from a controlled device), IR data,
or returned audio to the transmitter, connect a cable between the receiver A Out port and the
transmitter A In port (
c. To transmit an uncompressed 4K @ 60 Hz signal, using the Uncompressed Video LinkLicense,
repeat step 4a on the SFP B port on the transmitter and receiver
SFP Link LEDs —
Transmit Optical OUT LED lights solid green when powered and lights off when there is no power on the endpoint.
•
Receive Optical IN LED lights solid green when light is present and lights off when there is no power or light present.
•
Step 5 — Power Connection
Connect the IEC power connector to the power inlet (see figure 1,
receiving power.

Operation

After the receiver, transmitter, and their connected devices are powered up, the system is fully operational. If any problems occur,
verify that the cables are routed and connected properly and the display device has a compatible resolution and refresh rate. If
problems persist, call the Extron S3 Sales & Technical Support Hotline (see the

Indications

A Power LED — Indicates power is applied to the unit.
B
USB Config port — Connect a USB mini-B cable to
a computer to configure the device and update the
firmware via PCS or internal web pages.
C
Inputs LEDs —
Signal LED — Lights when the unit detects an input
•
video signal.
• HDCP LED — Lights when the input signal is HDCP
encrypted.
Digital Audio LED — Lights when digital audio is
•
selected on the transmitter.
• Analog Audio LED — Lights when analog audio is
selected on the transmitter.
D USB LEDs —
• Transmitter — The HID Host LED and 2.0 Host LED light when the unit is connected to the host device.
Receiver —
•
• USB HID Host LED — When the transmitter and receiver are connected through the SFP port and a host device is
connected to the transmitter, the LED remains lit to indicate an active connected device.
USB HID 1 and 2 LEDs —When an active USB peripheral device is connected to the HUB ports on the receiver,
•
the LED remains lit to indicate an active connected device.
).
2
).
1
A
on page 1). The power LED lights (
contact number
INPUTS USB
SIGNAL DIGITAL AUDIO HID HOST
CONFIG
HDCP ANALOG AUDIO 2.0 HOST
A A A B B B C C C D D D
INPUT
USB
HOST 1 2
SIGNAL USB HID
CONFIG
HDCP USB 2.0
Figure 6. FOX3 T/R 301 Front Panels
OUTPUTS
B
A
OUT IN OUT IN
Transmitter
1 1 2 2
2 2 1 1
INPUTS
A B
Receiver
OUT IN OUT IN
Figure 5.
Fiber Cable Connection
B
) when the unit is
on page 4).
FOX3 T 301
FOX3 R 301
3
