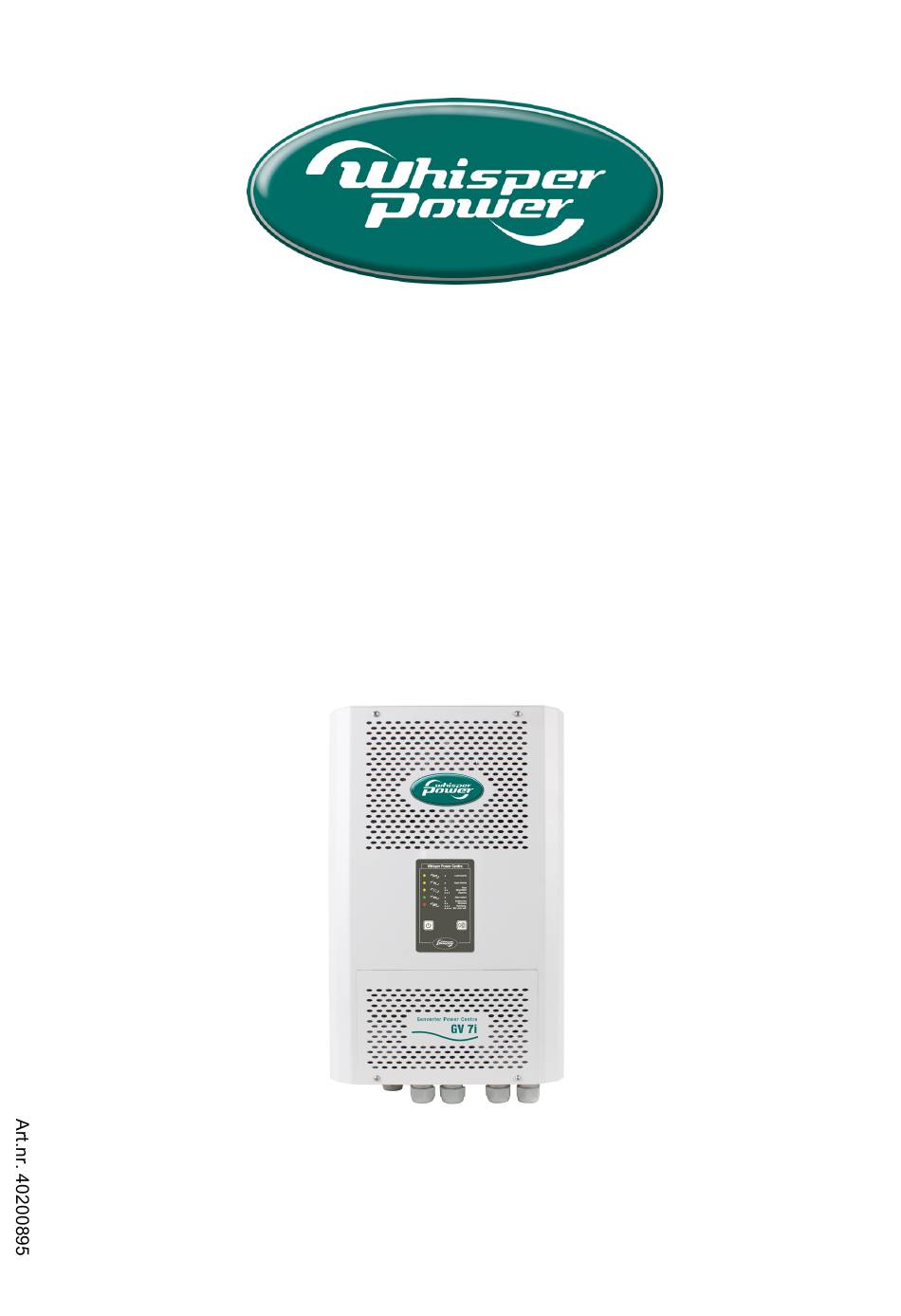

- Page 1 USER MANUAL Whisper Power Center 12-2000 / 24-3500 / 48-4000 / 24-5000 / 48-6000 Unit combining inverter, battery charger and transfer system. WHISPER POWER BV Kelvinlaan 82 9207 JB Drachten Netherlands Tel.: +31-512-571550 Fax.: +31-512-571599 V3 February 2020 www.whisperpower.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS INTRODUCTION ..............................4 GENERAL INFORMATION ..........................4 Operating instructions ............................ 4 Conventions ..............................5 Quality and warranty ............................5 2.3.1 Exclusion of warranty ..........................5 2.3.2 Exclusion of liability ............................ 6 Warnings and notes ............................6 2.4.1 General ............................... - Page 3 TABLE OF CONTENTS 6.2.3 Transfer relay ............................25 6.2.4 Battery charger ............................27 6.2.5 Battery protection ............................ 28 6.2.6 WPC protection ............................29 MULTI-UNIT CONFIGURATION ........................30 7.1.1 Three-phase system ..........................30 7.1.2 Increasing the power by paralleling units ....................30 7.1.3 Combined system .............................
-
Page 4: Introduction
1 INTRODUCTION Congratulations! You are about to install and use a device from the Whisper Power Centre range. You have chosen a high-tech device that will play a central role in energy saving for your electrical installation. The WPC has been designed to work as an inverter / charger with advanced functions, which can be used in a completely modular way and guarantee the faultless functioning of your energy system. -
Page 5: Conventions
Drachten (the Netherlands). The warranty for this equipment depends upon the strict application of the instructions appearing in this manual. The warranty period for the Whisper Power Centre is 2 years. Refer to the Whisper Power general conditions of sales. 2.3.1 Exclusion of warranty No warranty claims will be accepted for damage resulting from handling, usage or processing that does not explicitly appear in this manual. -
Page 6: Exclusion Of Liability
GENERAL INFORMATION through poor connections can cause extreme heat and fire. • Damage due to atmospheric surge voltage (lightning) • Damage due to inappropriate transportation or packaging • Disappearance of original marking elements 2.3.2 Exclusion of liability The placement, commissioning, use, maintenance and servicing of the WPC cannot be the subject of monitoring by WhisperPower. -
Page 7: Precautions For Using The Batteries
GENERAL INFORMATION 2.4.2 Precautions for using the batteries The batteries should only be chosen, dimensioned and installed by qualified personnel, trained in this specific area. Lead-acid or gel batteries produce a highly explosive gas with normal use. No source of sparks or fire should be present in the immediate vicinity of the batteries. -
Page 8: Installation Site
ASSEMBLY AND INSTALLATION 3.4 I NSTALLATION SITE The installation site for the WPC is of particular importance and must satisfy the following criteria: • Protected from any unauthorised person. • Protected from water and dust and in a place with no condensation. •... -
Page 9: Fastening
ASSEMBLY AND INSTALLATION The WPC must be installed vertically with sufficient space around it to guarantee adequate ventilation of the device. 3.5.1 Fastening Fastening of the WPC 5000-24 First fix the mounting bracket (26) supplied with the device using 2 Ø < 6-8 mm >screws. -
Page 10: Connections
ASSEMBLY AND INSTALLATION It is imperative to ensure complete and safe fastening of the device. A device that is simply hung may detach and cause severe damage. In motor vehicles or when the support may be subject to strong vibrations, the WPC must be mounted on anti-vibration supports. - Page 11 ASSEMBLY AND INSTALLATION The unit’s connection compartment must remain permanently closed when in operation. It is imperative to close the protection cap on the connection terminals after each intervention in the device. After opening, check that all sources of AC and DC voltage (batteries) have been disconnected or put out of service.
- Page 12 ASSEMBLY AND INSTALLATION Pos. Denomination Description Comment Connector for connecting the auto- Refer to DDC and RCC/PSCP manual Auto start start cable Connector for the battery See chapter 8.2.2 – p. 32. Temp. Sens temperature sensor Only connect the original WhisperPower BTS-01 sensor Double connector for connecting See chapter 0 –...
-
Page 13: Dipswitch Functions
ASSEMBLY AND INSTALLATION 3.6.3 Dipswitch functions (only applicable for WPC 2000-12, 3500-24 and 4000-48) To set the behavior of the input switching component of the WPC a dipswitch is available at the input switching board. To access it, open the connection compartment cover. The figure below show the location of the dipswitch. Dipswitch location Dipswitch Function... -
Page 14: Cabling
COMMISSIONING 4 CABLING The connection of the WPC inverter / charger is an important installation step. It may only be carried out by qualified personnel and in accordance with the applicable local regulations and standards. The installation must always comply with these standards. Pay attention that connections are completely tightened and that each wire is connected at the right place. -
Page 15: Earthing System
ASSEMBLY AND INSTALLATION accepts no liability for damages due to non-confirming installation and to the lack of compliance with the local rules or with the recommendations of this manual. 4.2 E ARTHING SYSTEM The WPC is a protection class I unit, which is intended for cabling in a grid type TT, TN-S or TNC-S*. The earthing of the neutral conductor (E) is carried out at a sole installation point, upstream of the RCD circuit breaker (D). -
Page 16: Installation With Automatic Pe-Neutral Switching
COMMISSIONING parameter {1486}. In this case the appearance of the first fault will lead to the installation stopping or the disconnection of the protection devices upstream and/or downstream of the WPC. Safety is guaranteed by the equipotential bonding and by any RCD circuit-breakers placed downstream. This connection (C) is not permitted if a socket is installed upstream of the WPC. -
Page 17: Dimensioning The Inverter
ASSEMBLY AND INSTALLATION The method proposed below is strictly indicative and in no way constitutes a guarantee of perfect dimensioning. The installer is solely responsible for good dimensioning and installation. 4.3.2 Dimensioning the inverter The inverter is dimensioned in such a way that the rated power output covers the power of all the consumers which will be used at the same time. - Page 18 COMMISSIONING / WPC / EN February 2020...
-
Page 19: Battery Cable Cross-Section And Dc Protective Devices
ASSEMBLY AND INSTALLATION 4.5.1 Battery cable cross-section and DC protective devices The battery cables must be protected by one of the following measures in all cases: - protection device (fuse) at each pole - protection device (fuse) on the pole not connected to the earth The battery cables must also be as short as possible. -
Page 20: Battery-Side Connection
One of the two battery conductors can be earthed. This may be either the positive or negative pole. However in Europe in most cases the negative conductor is grounded. This is recommended by Whisper Power. In all cases the installation must conform to the local regulations and usage or specific standards associated with the application. -
Page 21: Connecting The Ac Supply Sources
ASSEMBLY AND INSTALLATION If the assistance function at the source (Smart Boost) is not used, the size of the protection device for the output (F) will be established at a maximum value equal to the rated current of the inverter, or at the maximum value of the protection device at the input (H) if this is exceeds the rated current of the inverter. -
Page 22: Connecting The Auto-Start Cable
COMMISSIONING Cable-glands that are not in use must be properly closed. If this instruction is not respected, the equipment loses its degree of protection (IP54) and dust or small animals may enter the equipment causing significant damage which is not covered by the warranty. 4.5.9 Connecting the communications cables The WPC is equipped with a pair of RJ45/8 connectors that allow information transfer via a communication bus for different consumer types which have the proprietary protocol of WhisperPower. -
Page 23: Powering Up The Installation
ASSEMBLY AND INSTALLATION 6 POWERING UP THE INSTALLATION It is imperative that the closing cap for the connection compartment be installed and screwed tight before the installation is energised. There are dangerous voltages within the interior of the connection compartment. The Power up of the WPC must be carried out in the order given below. -
Page 24: Description And Functioning
DESCRIPTIONS AND FUNCTIONS 7 DESCRIPTION AND FUNCTIONING 7.1 C WPC 2000-12, 3500-24 4000-48) IRCUIT DIAGRAM ONLY APPLICABLE FOR 7.2 D ESCRIPTION OF THE MAIN FUNCTIONS 7.2.1 Inverter The WPC is equipped with a high-performance inverter which supplies a perfect and very precise sine wave. Any unit designed for the 230 V/50 Hz electrical grid may connect to it without any problem, up to the rated power out of your WPC. -
Page 25: Transfer Relay
DESCRIPTION AND FUNCTIONS 7.2.3 Transfer relay The WPC can be connected to an alternative power source such as a generator or public grid. When the voltage at the entry satisfies the voltage {1199 + 1470} and frequency {1505 - 1506} parameters, the transfer relay will be activated after a delay {1528}. - Page 26 DESCRIPTIONS AND FUNCTIONS Due to the current assistance feature, the battery can be fully discharged despite the presence of the grid or the generator! The average power consumed by the user must not exceed the power of the source, at the risk of discharging the battery.
-
Page 27: Battery Charger
DESCRIPTION AND FUNCTIONS Setting the current "Input limit" The maximum input current can be adjusted by the remote control WPC-PSCP/RCC. The parameter {1107} is part of the basic parameters of the device and must be adjusted at commissioning depending on the capacity of the source as follows: •... -
Page 28: Battery Protection
DESCRIPTIONS AND FUNCTIONS If the “Smart Boost” function is activated {1126} and the power required by the consumer exceeds the power of the source, the battery will be discharged (c) despite the presence of the grid or the generator. In this case the LED “charge” (4) goes out. -
Page 29: Wpc Protection
DESCRIPTION AND FUNCTIONS permanently and will only start again via an operator’s manual restart. Battery protection specifically for the WPC 5000-24 When the battery is connected to DC consumers, these can drain the battery so far that this battery cannot any longer start the WPC 5000-24;... -
Page 30: Multi-Unit Configuration
The compatibility of the new units must be checked by giving Whisper Power the serial numbers of the inverters in the existing installation. The inverters belonging to the same system must be equipped with the same software version. Take care to download the latest software version from manufacturer’s website and do update all units of the system... -
Page 31: Accessories
DESCRIPTION AND FUNCTIONS 8.2 A CCESSORIES 8.2.1 Control centre and display WPC-RCC/PSCP (remote control) A WPC-RCC/PSCP remote display and programming unit can be optionally connected to the WPC via one of the two RJ45-8-type “Com. Bus” (3) connectors. These connectors may only be used for connecting a WPC-bus compatible accessory, excluding any other connection such as LAN, Ethernet, ISDN, etc. -
Page 32: Bts-01 Temperature Sensor
DESCRIPTIONS AND FUNCTIONS 8.2.2 BTS-01 temperature sensor The optimal operating voltages for lead batteries vary depending on the temperature. A temperature sensor is optionally available to correct the battery voltage and guarantee an optimum charge whatever the battery temperature. The correction factor given by the correction of the sensor is set by the parameter {1139}. 9 CONTROL 9.1 D ISPLAY AND CONTROL PANEL... - Page 33 CONTROL Indicated alarm Comment (Imminent) stoppage as a result If the device has not yet stopped, it is recommended to disconnect all non-priority of low battery voltage. consumers and/or start up the generator. If the WPC has stopped it will restart automatically when the battery voltage has reached the correct value again {1110}.
- Page 34 CONTROL battery is discharged – the “charge” indicator (44) will be glowing. If grid feeding is allowed {1127} this indicator is blinking 2 times while feeding. (46) AC OUT This indicator is glowing continuously when an alternative voltage of 230V is present at the equipment output.
-
Page 35: Table Of Factory's (Defaults) Parameters Settings
FACTORY SETTINGS 10 TABLE OF RELEVANT FACTORY (DEFAULTS) PARAMETERS SETTINGS No. of Denomination / description Units Fact. Mod. config value value 1107 Maximum current of the AC source 1108 Under voltage of the empty battery V/cell 1.93 1109 Sub-voltage of the charged battery V/cell 1.75 1110... - Page 36 FACTORY SETTINGS 1264 Auxiliary contact 1 activated by power 3 No. of Denomination / description Units Fact. Mod. config value value 1265 Power 3 above which will be activated auxiliary contact 1 1266 Duration of power 3 for activation of auxiliary contact 1 min.
- Page 37 TECHNICAL DATA February 2020/ WPC / EN...
-
Page 38: Technical Data - Wpc
TECHNICAL DATA 11 TECHNICAL DATA – WPC 11.1 T YPE PLATE The model indication, operating voltage and currents as well as the serial number of the unit is printed on the type plate which is located on the the left side of the WPC. Example type plate for WPC 2000-12 model, serial number XXEN 00070 Denomination Description... - Page 39 TECHNICAL DATA Inverter WPC model 2000-12 3500-24 4000-48 5000-24 6000-48 Rated battery voltage Input voltage range 9.5 - 17V 19 - 34V 38 - 68V 19-34V 38 - 68V Continuous power @ 25°C 2000VA 3000VA 3500VA 4500VA 5000VA Smart Boost power 2000VA 3500VA 4000VA...
- Page 40 TECHNICAL DATA Low voltage disconnection 10.8V/9.5- 43.2V / 38 - 21.6V/19- 34V Reduced floating duration - / 0 - 32 days Periodical absorption - / 0 - 10 hours Temperature -5 / 0 to -8mV/°C/Cellule (option WP-BTS) compensation General data WPC model 2000-12 3500-24...
-
Page 41: Dimensions
TECHNICAL DATA 11.3 D IMENSIONS February 2020/ WPC / EN... -
Page 42: Maintenance Of The Installation
MAINTENANCE 12 MAINTENANCE OF THE INSTALLATION With the exception of the periodic checking of connections (tightening and general condition) the WPC does not require any special maintenance. 13 PRODUCT RECYCLING The model of the WPC series conform to the European directive 2002/95/EC on hazardous substances and does not contain the following elements: lead, cadmium, mercury, hexavalent chrome, PBB or PBDE. -
Page 43: Eec Declaration Of Conformity
EEC DECLARATION 13 EEC DECLARATION OF CONFORMITY MANUFACTURER: WHISPER POWER BV Address: WHISPER POWER BV Kelvinlaan 82 9207 JB Drachten NETHERLANDS Declares hereby in accordance with EN ISO 17050-1:2004 the equipment specified conforms to the following Directives and Standards: WPC series: Inverter/batterycharger/transfer system... - Page 44 Kelvinlaan 82, 9207 JB Drachten, Netherlands Tel : + 31-512-571550 / Fax : + 31-512-571599 www.whisperpower.com / info@whisperpower.com...
