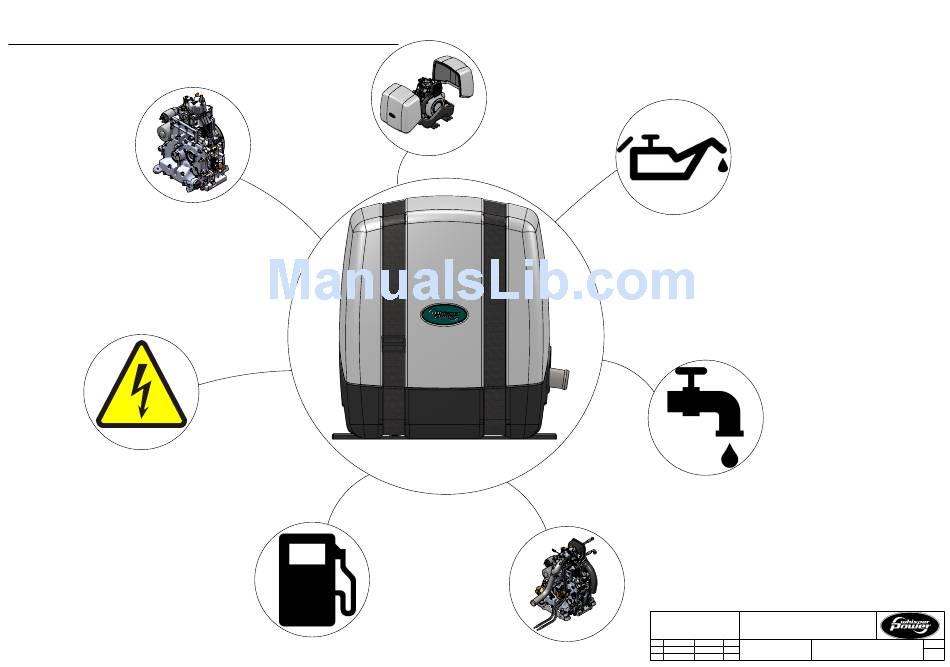

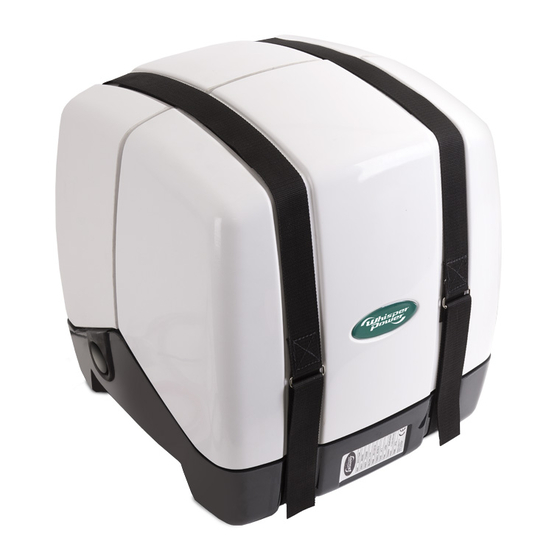

Service manual Piccolo
7 Engine
6 Electrical
1 Canopy
5 Fuel
2 Oil
3 Water
STATUS:
Design Review
NAME
4 Attachment
D.K.
DRAWN
CHK'D
M.F.
TITLE:
M-GV4 Piccolo
SIGNATURE
DATE
SHEET FORMAT:
ARTICLE NO.
9500MAN308001A152757 Servicepart manual
28-4-2015
A2
Piccolo
01-01-1900
SHEET 1 OF 8
REVISION
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Whisper Power M-GV4 Piccolo
Summary of Contents for Whisper Power M-GV4 Piccolo
- Page 1 Service manual Piccolo 1 Canopy 7 Engine 2 Oil 6 Electrical 3 Water STATUS: TITLE: M-GV4 Piccolo Design Review NAME SIGNATURE DATE SHEET FORMAT: ARTICLE NO. REVISION 5 Fuel 4 Attachment D.K. DRAWN 9500MAN308001A152757 Servicepart manual 28-4-2015 Piccolo CHK'D M.F.
- Page 2 1. Canopy 7019P142422 Pipe flash exhaust slot 1003P11226 7502P003 canopy 7502P002 base 7502P008 rvs strip 7019P142415 Lashing strap canopy Piccolo STATUS: TITLE: M-GV4 Piccolo Design Review NAME SIGNATURE DATE SHEET FORMAT: ARTICLE NO. REVISION DRAWN D.K. 9500MAN308001A152757 Servicepart manual 28-4-2015...
- Page 3 2. Oil 40401284 Oil plug OIL DIP STICK 50203333 40401340 Oil filter container WP1 40401018 Oil pipes and fittings kit 40401029 Oil cooler GV ASSY KIT STATUS: TITLE: M-GV4 Piccolo Design Review NAME SIGNATURE DATE SHEET FORMAT: ARTICLE NO. REVISION...
- Page 4 3. Water Kit nr. 40201271 40201270 Complete pump Kit nr. 40209011 1001P131328 Pump mounting brackets STATUS: TITLE: M-GV4 Piccolo Design Review NAME SIGNATURE DATE SHEET FORMAT: ARTICLE NO. REVISION DRAWN D.K. 9500MAN308001A152757 Servicepart manual 28-4-2015 Piccolo CHK'D SHEET 4 OF 8...
- Page 5 40401327 Airfilter base 40401086-1 fillingring 40401329 Air filter element 1001P131230 Cover Generator PM 4kW 40401333 Cover air filter 40401087 Fan 50261205 Bracket STATUS: TITLE: M-GV4 Piccolo Design Review NAME SIGNATURE DATE SHEET FORMAT: ARTICLE NO. REVISION 9500MAN308001A152757 Servicepart manual DRAWN D.K.
- Page 6 40209030 Fuel filter Fuel hose kit 40401031 Fuel hose kit 40401031 50201160 Fuel lift pomp Fuel hose kit 40401031 Fuel hose kit 40401031 STATUS: TITLE: M-GV4 Piccolo Design Review NAME SIGNATURE DATE SHEET FORMAT: ARTICLE NO. REVISION 9500MAN308001A152757 Servicepart manual DRAWN D.K.
- Page 7 50209236 OIL PRESS SWITCH 40401103 Rotor 40401386 Starter motor 50209219 Temperature sensor 40401240 Fuel pump Solenoid 40401060 wiring loom Piccolo 50209239 Oilpressure switch 5,5 bar STATUS: TITLE: M-GV4 Piccolo Design Review NAME SIGNATURE DATE SHEET FORMAT: ARTICLE NO. REVISION 50209238 EXHAUST TEMP SWITCH...
- Page 8 40401354 Outer rotor(big) 40401353 Inner rotor(big) 40401352 Oil pump cover 40401380 Shim set 40401346 Lube oil pump 40401347 O-ring 34.5x1.8-A 40401352 Oil pump cover STATUS: TITLE: M-GV4 Piccolo Design Review NAME SIGNATURE DATE SHEET FORMAT: ARTICLE NO. REVISION 9500MAN308001A152757 Servicepart manual DRAWN D.K.
