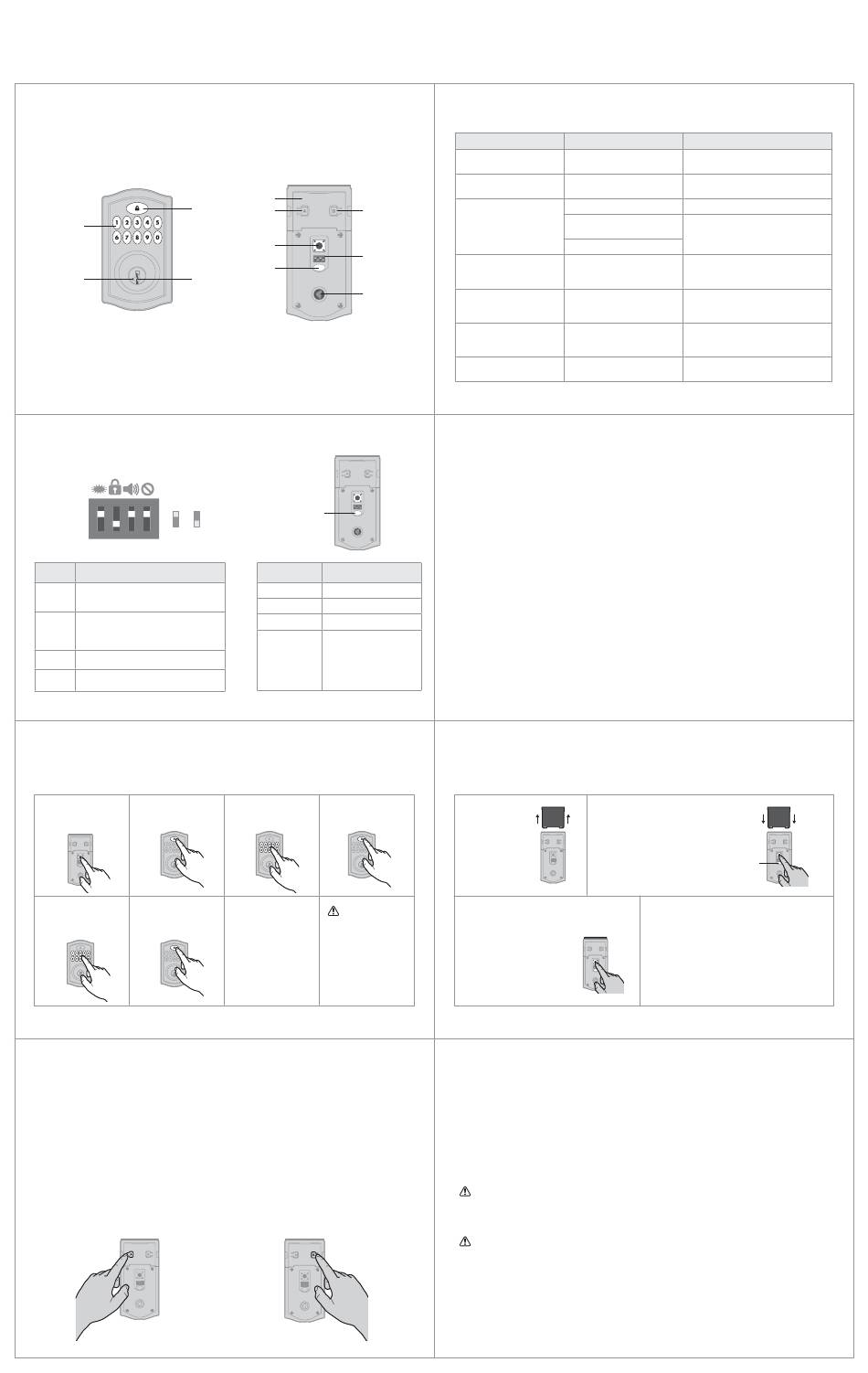

SmartCode at a Glance
Exterior
Keypad
SmartKey
tool hole
Switches and Status LED colors
Switches
On Off
1 2 3 4
Switch Function
Door lock status LED blinks every 6
1
seconds
Lock automatically re-locks door 30
2 seconds after unlocking. Disabled if no
codes are programmed.
3 Audio
4 Not used.
Deleting a single user code
Note: All codes may be deleted at once if the mastercode is enabled. For more information about the
mastercode, consult the SmartCode 914 Programming and Troubleshooting Guide at www.kwikset.com.
1 Keep door open. 2 Press Lock
Press Program button once.
button once.
5 Re-enter user code. 6 Press Lock
button once.
If no button is pressed for five seconds, the system will time out, and
you will need to restart the procedure.
Network Information
ZigBee System Notes
ZigBee is a "Wireless mesh network," and results may vary based on building construction and
communication path, with 35+ feet being typical installed distance in a standard home environment and
250 feet+ when the lock has a clear line of sight with the smart home controller. It may be necessary to
install additional ZigBee devices to enhance the communication path between the lock and controller for a
more robust ZigBee network.
Adding the lock to the network
During the pairing process, press button "A" on the
lock interior four times.
Interior (cover removed)
Back
panel
Lock
Button "A"
button
Program
button
Status
LED
Keyway
Note: When the cover is removed,
the turnpiece shaft can be used to
manually lock and unlock the door.
Status
LED
Color Lock Status
Blinking green Unlocked
Blinking amber Locked
Blinking red Low battery
Door handing process
did not work properly.
Solid red See the online
Programing and
Troubleshooting Guide.
3 Enter user code 4 Press Lock
to be deleted. button once.
If unsuccessful
Test code
Make sure to enter
While the door is
the same valid code
open, test the user
in steps 3 and 5.
code to make sure
it no longer unlocks
the door.
Removing the lock from the network
Press button "B" on the lock interior nine times.
Reference Guide
System Alerts
Alert
Keypad flashes green once
with one beep*.
Keypad flashes red once with
one beep*.
Button "B"
Keypad flashes red three
times with three beeps*.
Switches
Keypad flashes red 15 times
with 15 beeps*
Turnpiece
Keypad flashes red with fast
shaft
beeping sound for three to
four seconds.
Keypad flashes red with
continuous beeping sound
for two seconds.
Lock beeps continuously.
*Beeping sound will only be heard if switch #3 is on.
Troubleshooting
Factory Reset
A factory reset will delete all codes associated with the lock,
and it will remove it from your smart home system.
1 Remove
battery pack.
3 Press the Program button
once more. When the LED
flashes green and you
hear one beep, the lock
has been reset.
Important Safeguards
1. Read all instructions in their entirety.
2. Familiarize yourself with all warning and caution statements.
3. Remind all family members of safety precautions.
4. Protect your user codes and mastercode.
5. Dispose of used batteries according to local laws and regulations.
CAUTION: Prevent unauthorized entry. Since anyone with access to the back panel
can change the user codes, you must restrict access to the back panel and routinely
check the user codes to ensure they have not been altered without your knowledge.
The use of a mastercode can help protect your system's settings.
WARNING: This Manufacturer advises that no lock can provide complete security
by itself. This lock may be defeated by forcible or technical means, or evaded by
entry elsewhere on the property. No lock can substitute for caution, awareness of
your environment, and common sense. Builder's hardware is available in multiple
performance grades to suit the application. In order to enhance security and reduce
risk, you should consult a qualified locksmith or other security professional.
Reason Solution
Successful programming. N/A
One incorrect code entered. Re-enter code.
No user code programmed. Program at least one user code.
Programming timeout after five
seconds.
Attempt programming procedure again.
Unsuccessful programming.
Three incorrect codes entered Re-enter code after 60 second keypad
within one minute. lockout.
Low battery. Replace batteries.
Door jammed while attempting Manually re-lock door. If needed,
to lock. reposition strike.
Interior assembly is Remove battery pack, reconnect the interior
disconnected from exterior. to the exterior, then reinstall battery pack.
A complete SmartCode 914 Programming and
Troubleshooting Guide is available at www.kwikset.com.
2 Press and HOLD the Program
button while reinserting
the battery pack.
Keep holding the button for 30
seconds until the lock beeps
and the status LED flashes red.
4 Perform the door handing process again
to teach the lock the orientation of the
door, pair the lock with your smart home
system, and add user codes to your lock.
Status
LED
