Integrating Technology
Getting Started
To successfully complete the professional installation,
commissioning and testing of the audio/video systems
associated with Verb Active Media Table, we recommend
that you contract a commercial audiovisual engineer to
ensure codes, compliance, safety and warranties are in
order. Additionally, you may want to consider bringing in a
network administrator to assist with more complex systems.
The following sections will describe the components of the
Verb Active Media Table along with high-level suggestions
on how to connect and configure both simple and complex
Verb Active Media Table systems.
12

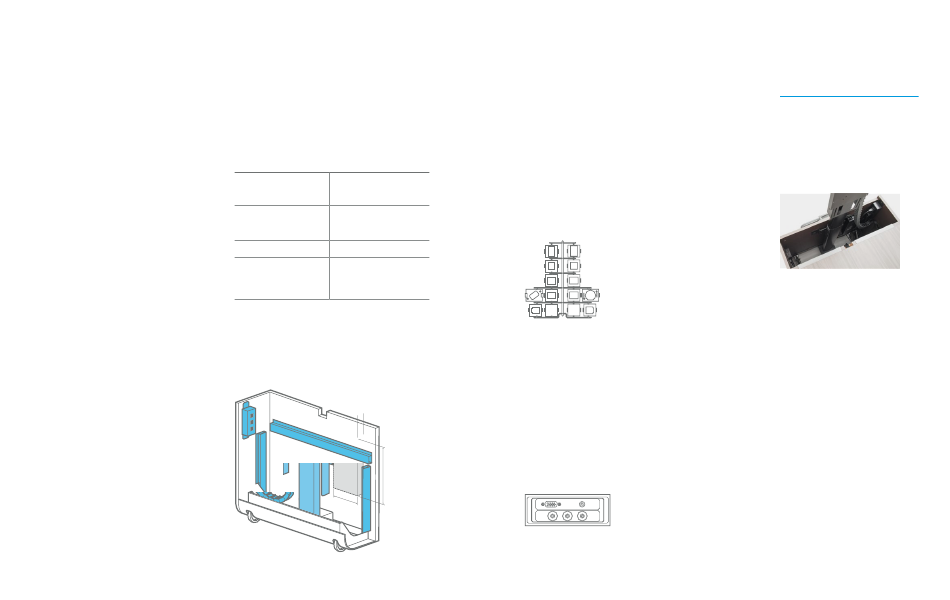

Specify Displays
Any wall-mountable flat panel display that supports the display
requirements below can be used with the Verb Active Media
Table. However, we recommend you choose commercial
displays that offer a three-year warranty and 16 x 7
operation and button/input lock features.
Width: 29.32" (744.7 mm)
34" table max. monitor size Height: 21.20" (538.5 mm)
Depth: 3.50" (88.9 mm)
Width: 38.32" (973.3 mm)
43" table max. monitor size Height: 22.70" (576.5 mm)
Depth: 3.65" (92.7 mm)
Maximum weight capacity 130 lb
75 mm x 75 mm
Universal mounting patterns
100 mm x 100 mm
accommodates standard
200 mm x 100 mm
VESA mounts:
200 mm x 200 mm
Wireless Connectivity
Wireless content sharing devices may also be installed within
the media case to allow users to wirelessly share content.
A
B
C
AVAILABLE SPACE FOR TECHNOLOGY
WITHIN THE MEDIA CASE
34" CASE: A: 2 3/4", B: 15 3/4", C: 8"
43" CASE: A: 3 3/4", B: 13 3/4", C: 12"
Specify User Connections
There are two options to install wired user connections.
The Byrne Ellora in-surface power and data access port
®
comes with either a voice/data adapter kit or an Extron
AAP plate as an option.
VOICE/DATA ADAPTER KIT (INCLUDED)
The adapter kit allows mounting A/V and data connections
using the accessory cables and adapters found at
www.byrne.com/data. Up to three adapters can be
mounted within the power and data access port.
EXTRON AAP MOUNTING PLATE (OPTIONAL)
The mounting plate supports the Extron AAP modules
•
within the Byrne Ellora in-surface Power and data
®
access port.
Up to two Extron AAP modules can be installed within
•
the power and data access port.
This optional adapter plate must be ordered with
•
the Verb Active Media Table and is not sold separately;
however, Extron AAP modules can be purchased by
authorized Extron resellers.
More information about Extron AAP modules can
•
be found at www.extron.com.

OPEN ARCHITECTURE

Tables accommodate a range of technology
that can be securely mounted to the media
case and powered by power receptacles
within the case. Customers are responsible
for bringing and integrating technology
and audiovisual components with the
table and monitor lift.
