How to Connect and Share Content
Tables with Dynamic Content Control
Lecture
This mode and configuration is ideal for presenting and assigning group work.
The presenter's source is routed to all displays.
•

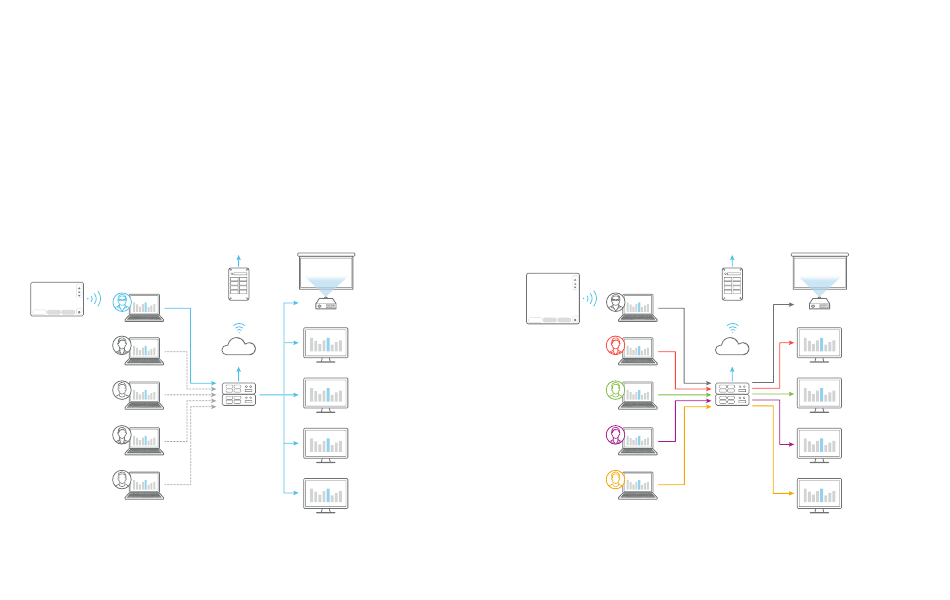

HOW ONE PRESENTER CAN CONNECT
TO MULTIPLE DISPLAYS
The instructor's Volume
laptop is being
sent to all
displays.
OFF
Lecture Co-create Group Share
INSTRUCTOR
STUDENT AT TABLE 1
STUDENT AT TABLE 2
STUDENT AT TABLE 3
STUDENT AT TABLE 4
18
3-WIRE RELAY CONTROL
TO EACH TABLE
CONTROL SYSTEM
WITH 8 RELAYS
(2 for each VAMT) ROOM DISPLAY
CORPORATE WIFI
DISPLAY AT TABLE 1
MATRIX SWITCHER
DISPLAY AT TABLE 2
DISPLAY AT TABLE 3
DISPLAY AT TABLE 4
Co-Create
In a co-create mode, groups work together at their individual tables.
The instructor's computer is routed to the large screen room display,
•
which could be a projector or very large 4K commercial TV.
A student feed from each table is routed back to its own display.
•
HOW INDIVIDUALS CAN CONNECT
TO A DISPLAY
The instructor's
Volume
laptop is being sent
to the room display.
Each Verb Active
Media Table
is in standalone
mode.
OFF
Lecture Co-create Group Share
INSTRUCTOR
STUDENT AT TABLE 1
STUDENT AT TABLE 2
STUDENT AT TABLE 3
STUDENT AT TABLE 4
3-WIRE RELAY CONTROL
TO EACH TABLE
CONTROL SYSTEM
WITH 8 RELAYS
(2 for each VAMT) ROOM DISPLAY
CORPORATE WIFI
DISPLAY AT TABLE 1
MATRIX SWITCHER
DISPLAY AT TABLE 2
DISPLAY AT TABLE 3
DISPLAY AT TABLE 4
