Bottom (Front) - Steelcase Verb Active Media Table Integration Manual

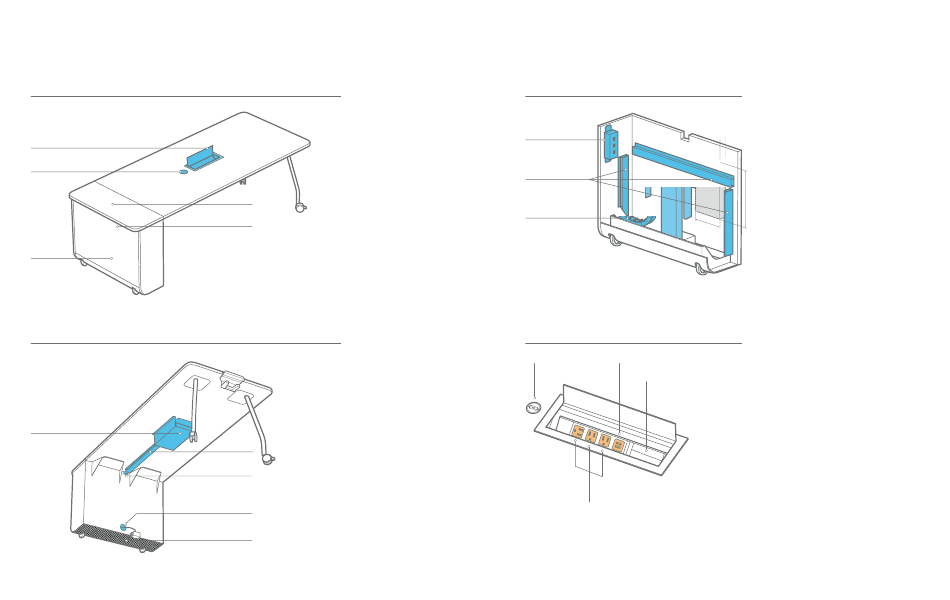

Components
TOP (REAR)
POWER AND DATA
ACCESS PORT
DISPLAY LIFT
CONTROL
MEDIA CASE

BOTTOM (FRONT)

CABLE PATH
(FROM INSERT OF EXTRON AAP)
1" X 1.5"
POWER CORD
8-FOOT LENGTH
06
FALSE DISPLAY
LIFT TOPPER
PASSIVE VENTILATION
(EXHAUST)
CABLE PATH
(WIRE MANAGER)
23"
CABLE PATH
(TO USER TROUGH)
2" x 2"
CABLE PATH
(TO FLOOR)
2.5" DIAMETER
PASSIVE VENTILATION
INTAKE
MEDIA CASE (REAR)
POWER BOX
120V/1320W
RECEPTACLES
WIRE MANAGER
VERTICAL
15" LONG
HORIZONTAL
34" DEPTH – 30"
43" DEPTH – 39"
DISPLAY WIRE
C
MANAGER
34" DEPTH – 30"
43" DEPTH – 37"
AVAILABLE SPACE FOR TECHNOLOGY
WITHIN THE MEDIA CASE
34" CASE: A: 2 3/4", B: 15 3/4", C: 8"
43" CASE: A: 3 3/4", B: 13 3/4", C: 12"
POWER AND DATA ACCESS PORT
DISPLAY LIFT 2 USB CHARGING PORTS
CONTROL 5V 1A MAX
A/V CONNECTIONS
OPTION: 3 KNOCKOUTS VOICE/DATA
ADAPTER KIT OR AAP MOUNTING PLATE
POWER
120V/1320W
TAMPER-RESISTANT RECEPTACLES
A
B
07
