System Power - Steelcase Verb Active Media Table Integration Manual

How to Connect and Share Content
Tables with Dynamic Content Control
Group Share
The group share mode and table arrangement is intended
to allow all participants to review content from each group.
Any source can be selected to be displayed on all screens.
•
Pick a source
Volume
to show on all
displays:
TABLE 2 TABLE 3
TABLE 1 TABLE 4
INSTRUCTOR
LAPTOP
OFF
Lecture Co-create Group Share
INSTRUCTOR
STUDENT AT TABLE 1
STUDENT AT TABLE 2
STUDENT AT TABLE 3
STUDENT AT TABLE 4

SYSTEM POWER

Power Off. When the OFF button is pressed on the
instructor's user interface, the room and table displays
turn off. The display lifts begin to descend into the media
case until the display lift stops.
20

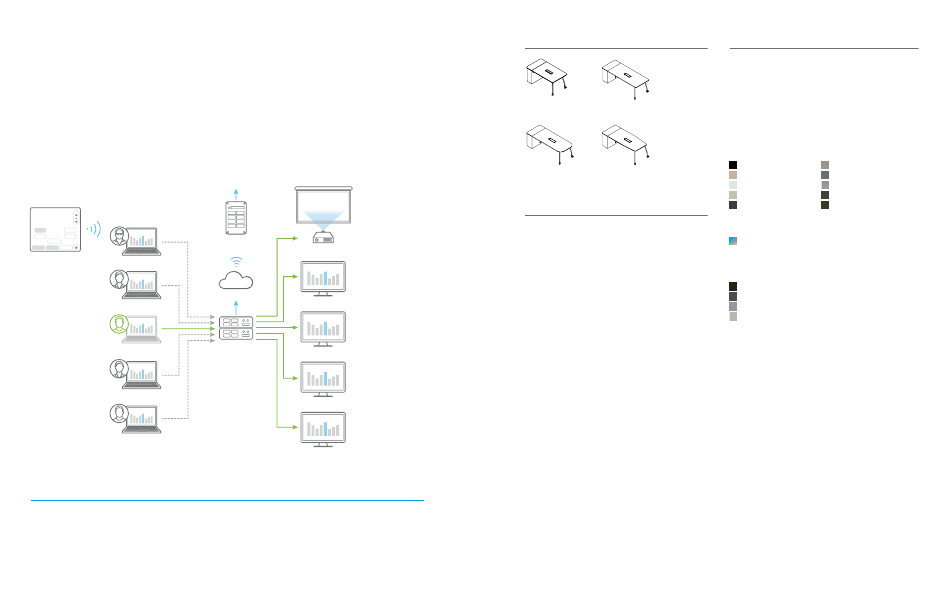

3-WIRE RELAY CONTROL
TO EACH TABLE
CONTROL SYSTEM
WITH 8 RELAYS
(2 for each VAMT) ROOM DISPLAY
CORPORATE WIFI
DISPLAY AT TABLE 1
MATRIX SWITCHER
DISPLAY AT TABLE 2
DISPLAY AT TABLE 3
DISPLAY AT TABLE 4
Power On. When any of the mode buttons are pressed
on the instructor's user interface, the room and table
displays should turn on and the lifts should begin to rise
until the display lift stops.
STATEMENT OF LINE
61" Rectangle 87" Rectangle
Rounded Tapered
FEATURES
TABLES
1"- thick top, high-pressure
POWER PLUG TYPE
•
laminate
NEMA 3-prong plug
•
3 mm radius profile edge
Thread low-profile plug
•
•
Available in depths of 34"
•
and 43"
MEDIA CASE POWER
Standard three outlets
•
ELECTRICAL HEIGHT-
Optional five outlets
•
ADJUSTABLE MONITOR LIFT
Universal Mounting Patterns
•
INTEGRATED WIRE
Contact closure interface
•
MANAGERS
Near Silent Operation
•
Lift mechanism for 32"D
•
LEG OPTIONS
tables for up to 32" TV
Access legs with locking
•
with 130lb lift capacity
casters or glides
Lift mechanism for 43"D
•
tables for up to 43" TV
OPTIONAL ACCESSORIES
with 130lb lift capacity
Side Hook and Dock
•
Stow Hook
•
POWER AND DATA
ACCESS PORT
Three outlets, one USB
•
and three knockouts
Three outlets, one USB
•
and Extron plate cover
SURFACE MATERIALS
Legs are available in ten finishes plus PerfectMatch.
•
Tables available in all Steelcase laminates and open line laminates.
•
Side dock with storage hook and stow hook available in the
•
following plastic finishes: Midnight (6259), Sterling Dark Solid
(6059), Platinum Solid (6249) and Element (6337).
PAINT FINISHES
Price Group 1: Price Group 2:
Black (7207) Champagne Metallic (4750)
Sand (7225) Sterling Metallic (4798)
Arctic White (7241) Platinum Metallic (4799)
Seagull (7243) Midnight Metallic (7246)
Merle (7360) Dark Bronze (7278)
Price Group 3:
PerfectMatch
PLASTIC COLORS
Midnight (6259)
Sterling Dark Solid (6059)
Platinum Solid (6249)
Element (6337)
Colors are representative and may vary slightly from actual material.
For further options, visit us online.
