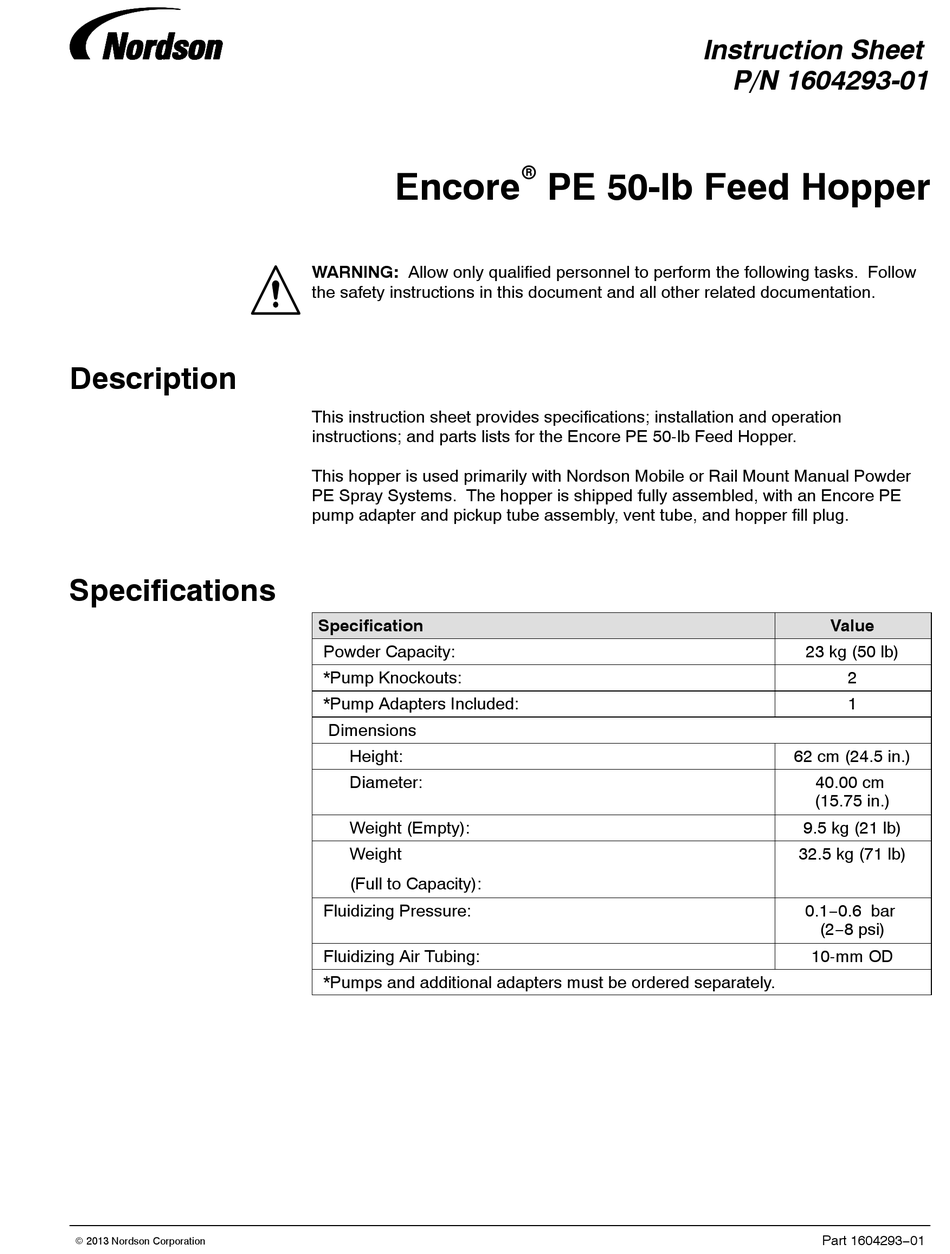

Description

Specifications

E 2013 Nordson Corporation
Encore
WARNING: Allow only qualified personnel to perform the following tasks. Follow
the safety instructions in this document and all other related documentation.
This instruction sheet provides specifications; installation and operation
instructions; and parts lists for the Encore PE 50-lb Feed Hopper.
This hopper is used primarily with Nordson Mobile or Rail Mount Manual Powder
PE Spray Systems. The hopper is shipped fully assembled, with an Encore PE
pump adapter and pickup tube assembly, vent tube, and hopper fill plug.
Specification
Powder Capacity:
*Pump Knockouts:
*Pump Adapters Included:
Dimensions
Height:
Diameter:
Weight (Empty):
Weight
(Full to Capacity):
Fluidizing Pressure:
Fluidizing Air Tubing:
*Pumps and additional adapters must be ordered separately.
r
PE 50-lb Feed Hopper
Instruction Sheet
P/N 1604293-01
Value
23 kg (50 lb)
2
1
62 cm (24.5 in.)
40.00 cm
(15.75 in.)
9.5 kg (21 lb)
32.5 kg (71 lb)
0.1−0.6 bar
(2−8 psi)
10-mm OD
Part 1604293−01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Encore PE and is the answer not in the manual?

Questions and answers

Summary of Contents for Nordson Encore PE

  • Page 1 Encore PE 50-lb Feed Hopper. This hopper is used primarily with Nordson Mobile or Rail Mount Manual Powder PE Spray Systems. The hopper is shipped fully assembled, with an Encore PE pump adapter and pickup tube assembly, vent tube, and hopper fill plug.
  • Page 2 Encore PE 50-lb Feed Hopper Installation Basic See Figure 1. 1. Make sure the fluidizing drum (6) and cover (2) are securely clamped to the body (3), and that all gaskets are undamaged and sealing properly. 2. Connect 10-mm flexible air tubing to the fitting labeled with the fitting on the rear of the controller labeled with the hopper fluidizing icon ( ).
  • Page 3 Encore PE 50-lb Feed Hopper Figure 1 NHR-2-50 Encore PE Feed Hopper 1. Vent hose adapter 4. Ground stud 2. Cover 5. Fluidizing air connector 3. Body 6. Fluidizing drum Operation WARNING: Wear an approved respirator, protective clothing, and gloves when handling powder.
  • Page 4 Encore PE 50-lb Feed Hopper Parts To order parts, call the Nordson Industrial Coating Systems Customer Service Center at (800) 433-9319 or your local Nordson representative. See Figure 2. Item Part Description Quantity Note 1604292 HOPPER ASSEMBLY, NHR Encore PE, 50 lb., packaged...
  • Page 5 Encore PE 50-lb Feed Hopper Figure 2 Hopper Parts Part 1604293−01 E 2013 Nordson Corporation...
  • Page 6 Encore PE 50-lb Feed Hopper Hopper Cover Item Part Description Quantity Note — 1074532 COVER, hopper, NHR-2 assy, packaged 1008081 S NUT, conduit, 1.25 in. 1008080 S GASKET, vent stack 1008079 S FITTING, pvc, 1 in., male adapter 1070199 S PLUG, hopper fill, NHR...
  • Page 7 Encore PE 50-lb Feed Hopper Fluidizing Drum Item Part Description Quantity Note — 1074531 DRUM, fluidizing 1074535 S ELBOW, male, -in. RPT x 10-mm tube 984702 S NUT, hex, M5, brass 983401 S LOCK WASHER, split, M5, steel, zinc 983021 S WASHER, flat, 0.203 x 0.405 x 0.040 in., brass...
  • Page 8 Encore PE 50-lb Feed Hopper Issued 7/13 Original copyright date 2013. Encore, Nordson, and the Nordson logo are registered trademarks of Nordson Corporation. Part 1604293−01 E 2013 Nordson Corporation...
