Alarm

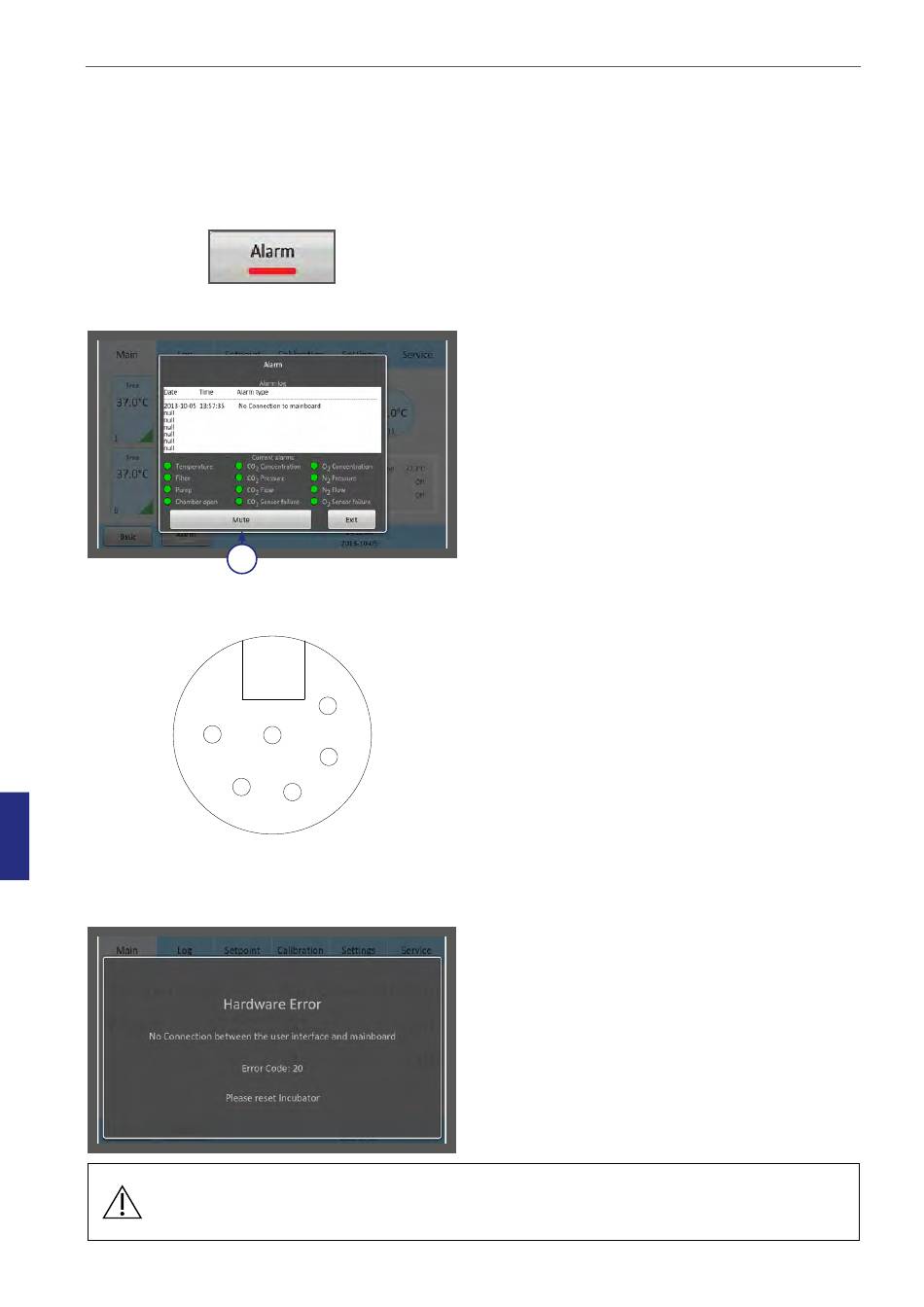

A flashing red light alarm button indicates that an alarm has been activated. An audible alarm will also
be activated. Press the alarm button to open the alarm message box.
5
9
CAUTION: Do not use the incubator if an alarm is triggered and the cause of the failure
has not been corrected.
34
1
1
6
2
4
3
The alarm box shows information about the
current alarm. Press Mute (1) to turn off the
audible alarm.
The alarm will be activated:
• If the chamber temperature is too high or
too low.
•
If the gas concentrations are too high or
too low.
• If there is a CO or O
2
• When there is a hardware error.
The unit is equipped with an external alarm
connector which can be connected to a
monitoring device. The connector can be
connected to either a voltage source or a current
source.

External Alarm Connector

This section for installers of third-party
monitoring systems
XLR6 Receptacle Connector:
• Alarm 1: Position 1-2 responds to Gas
alarm
•
Alarm 2: Position 3-4 responds to Pressure
alarm
• Alarm 3: Position 5-6 responds to
Temperature alarm
• Alarm output: Rated to max 24V/1A

Errors

In the case of a hardware error, a message and
an error code will be shown.
For more information about alarms, see "Section
11 - Troubleshooting" on page 41.
