CAUTION: If the equipment is used in a manner not specified by this manual, the
safety of the user may be at risk and the equipment may be damaged. Always use the
equipment as stated in this User Manual.
Operating Environment
To be used at ambient temperature in a medical environment, clinic or hospital laboratory under
normal working conditions.

Dish Inserts

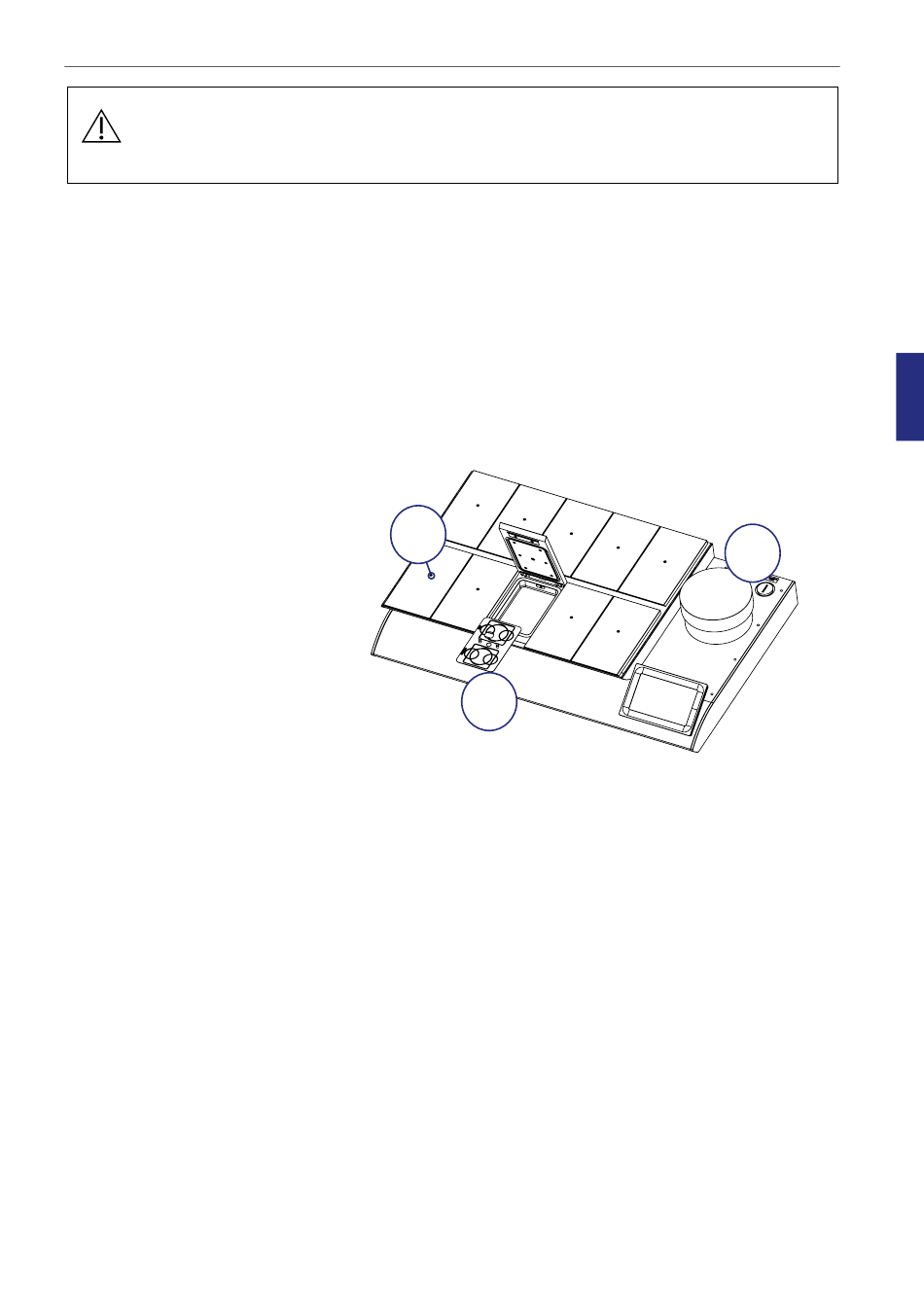

The chambers should only be fitted with special Dish Inserts (1), that allow safe placement of standard
culture dishes (LifeGlobal, Falcon, Nunc, Vitrolife).
Ensure the culture dishes
are placed securely in the
correct milled grooves of
the Dish Inserts.

Chamber Heating

Each chamber is heated with K-Systems' unique non-inductive EM Neutra™ heating system, which
provides a uniform heat distribution. All chambers are equipped with individual temperature sensors
to ensure stable temperatures at all times, and unidirectional gas flow across the chambers ensures
even gas distribution in each chamber.

Chamber Lid

Each lid has a sensor that, when opened, will disconnect the gas flow to minimize ambient air entering
the gas system. The gas flow restarts immediately after closing the lid.
The silicone plugs (2) in the lid of each chamber are for the collection of gas samples. These plugs
should be replaced when penetrated a maximum of 5 times.

Preparation Chamber

The Preparation Chamber (3) is intended to be used for the equilibration and heating of pre-filled
culture dishes with an oil overlay or flask of oil.
The Preparation Chamber also has a lid sensor which will disconnect the gas flow when the lid is
opened, to minimize the ingress of ambient air into the gas system. The gas flow restarts immediately
after closing the lid.
Gas flow to the Preparation Chamber can be disconnected through the user interface (see page 29).
