ASL INTERCOM V400 Installation Manual page 8

Recommended Installation Procedure
Please read and observe the instructions and guidelines in Section "3 Safety and Precautions" (page 22)
! !
prior to installation. Failure to follow these instructions and guidelines may cause personal injury and/or
damage to the equipment.
1. If fitted, then remove the V400 front panel by undoing the two captive M3 Pozidriv screws on the right
side of the front panel.
2. Fit the mainframe into a 19-inch standard equipment rack on supporting rails, and secure the
mainframe in position using the fixing screws and washers provided; see Figure 2.
1)
!
!
2)
3)

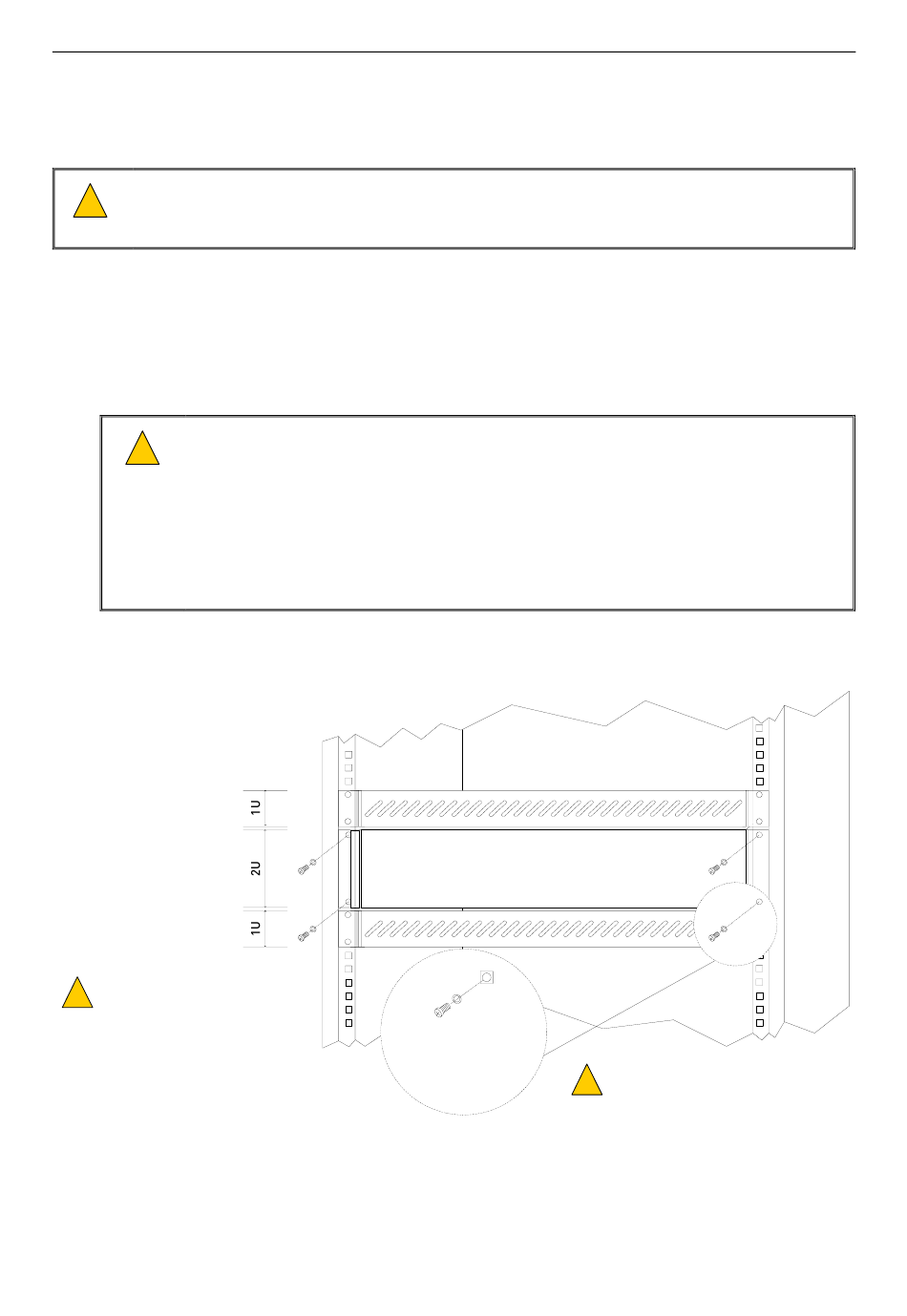

Figure 2 Installing the V400 into the rack
VENTILATION PANEL
V400
VENTILATION PANEL
ENSURE 1U VENTILATION
!
!
PANELS ARE FITTED ABOVE AND
BELOW THE EQUIPMENT.
DO NOT OBSTRUCT VENTILATION
HOLES.
V400 – Installation Guide
This equipment is heavy (max. 20 kg). Please move and handle with care to avoid strain or
impact injuries, and follow the recommended installation procedure. Install modules after
mounting mainframe in equipment rack.
Do not use the handles to lift or carry the mainframe. The handles are designed for sliding
the unit into and out of the equipment rack, and not to support its weight. Use the
underside edges of the mainframe to lift and carry it.
Always ensure adequate ventilation is provided for the equipment by fitting 1U ventilation
panels above and below the equipment, and do not obstruct ventilation holes.
M6 POZIDRIV SCREW
M6 PLAIN WASHER
M6 CAGE NUT
U-0398-0607.doc – Issue: 03 complete, approved
GENERIC 19-INCH 2U FORMAT
!
!
Page 8 of 24
SUPPORTING RAILS MUST BE USED.
