NSINT CONNECTIONS
LSIDC CONNECTIONS
V400 – Installation Guide

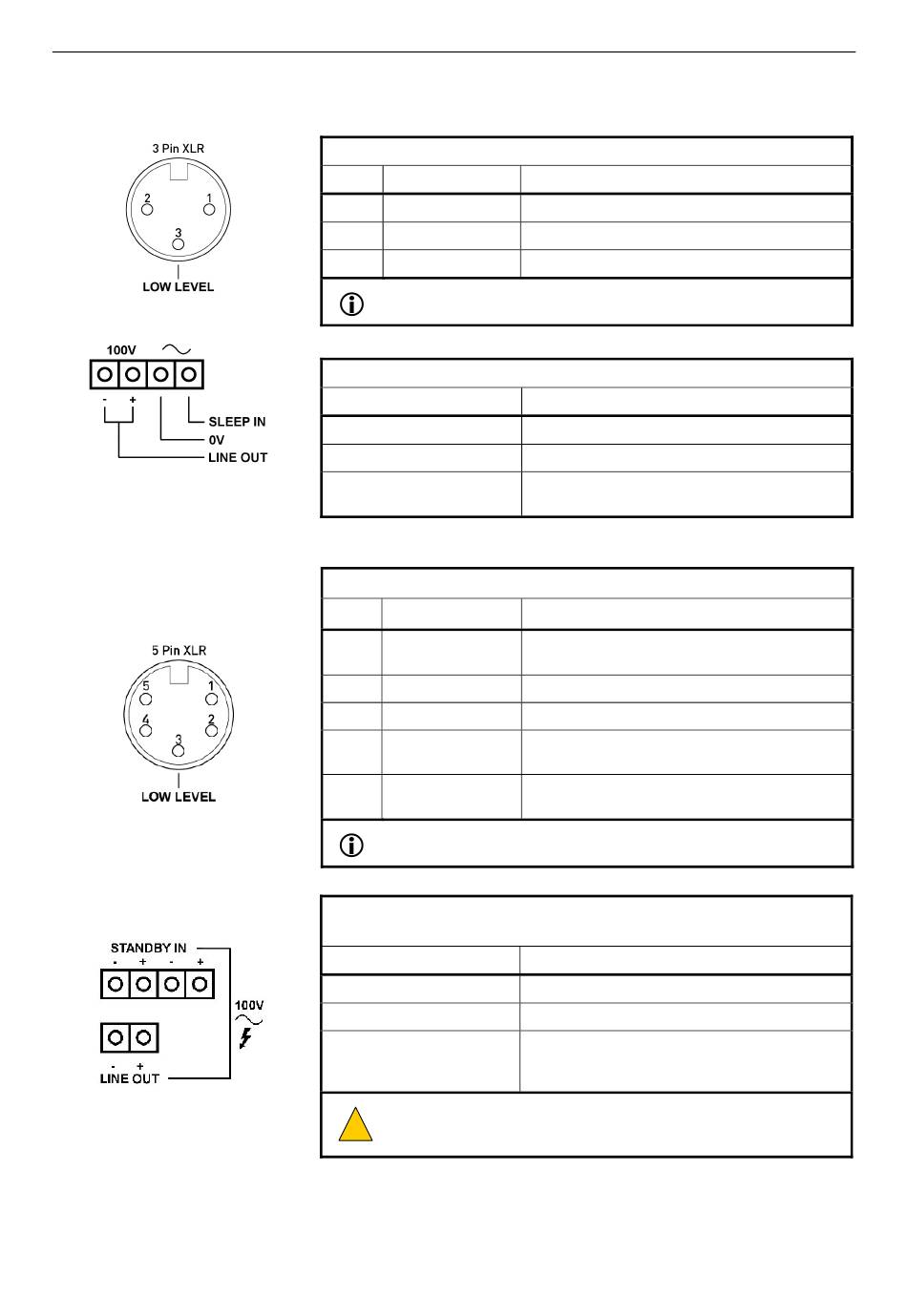

AUDIO INPUT: 3-PIN XLR (FEMALE)
Pin No Signal
1 Signal common
2 Audio I/P +
3 Audio I/P -
For best EMC performance, always connect cable screen to the back shell of
the connector.
100 V CONNECTIONS: 4-WAY PLUGGABLE WAGO CAGE CLAMP (FEMALE)
Signal
LINE OUT
0V
SLEEP IN
AUDIO INPUT AND STANDBY CONNECTIONS: 5-PIN XLR (FEMALE)
Pin No Signal
1 STANDBY LOCKOUT
2 AUDIO IN + (HOT)
3 AUDIO IN - (COLD)
STANDBY OUT +
4
(HOT)
STANDBY OUT -
5
(COLD)
For best EMC performance, always connect cable screen to the back shell of
the connector.
100 V STANDBY CONNECTION: 4-WAY PLUGGABLE WAGO CAGE CLAMP (MALE)
100 V LOUDSPEAKER CONNECTION: 2-WAY PLUGGABLE WAGO CAGE CLAMP (MALE)
Signal
LINE OUT +
LINE OUT +
STANDBY IN
Ensure +/- phase is preserved.
! !
