Ricoh StreamPunch
Contents
1.
2.
3.
4.
5.
6.
7.
8.
ACCO Brands, Inc.
Four Corporate Drive
Lake Zurich, IL 60047
www.acco.com
Installation Manual

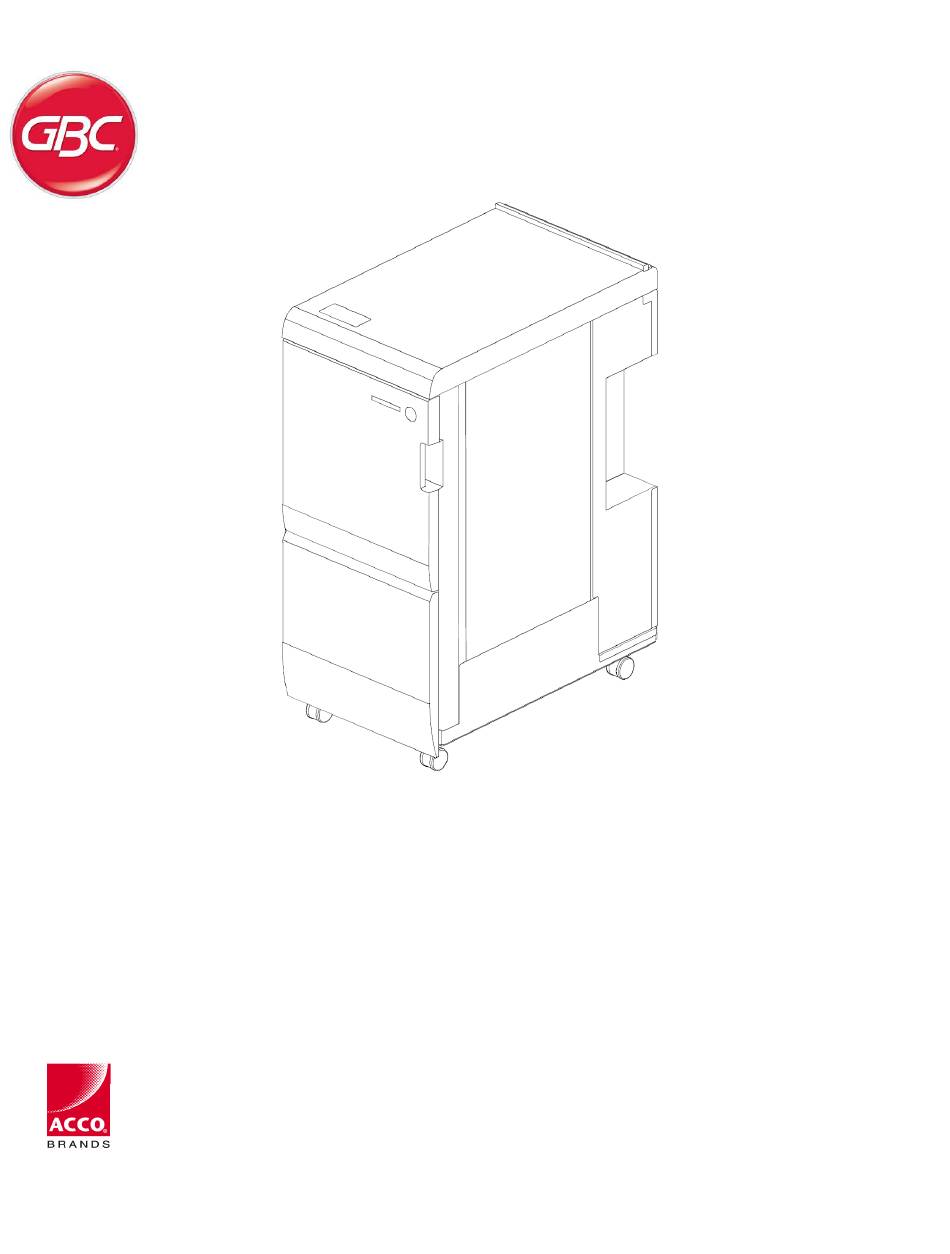

Ricoh StreamPunch Ultra/MP Installation Manual
Ultra/ Ultra MP
™
Page
2
2
2
3
4
5
9
10
Part No.
Rev No.
Issue Date:
7715807
E1
April, 2020
1
Advertisement
Related Manuals for ACCO Brands GBC Ricoh StreamPunch Ultra
Summary of Contents for ACCO Brands GBC Ricoh StreamPunch Ultra
-
Page 1: Table Of Contents
Configurations Sheet guides installation Docking Bracket Installation Cable connections Leveling & Height Adjustment Final Steps Part No. 7715807 Rev No. ACCO Brands, Inc. Issue Date: April, 2020 Four Corporate Drive Lake Zurich, IL 60047 www.acco.com Ricoh StreamPunch Ultra/MP Installation Manual... -
Page 2: Recommendations And Pre-Requisites
1. Recommendations and Pre-requisites You will need the installation kit provided with the StreamPunch Ultra/MP unit, which can be found in • the main carton. Using a jogging unit on the finisher will improve the stack quality for binding purposes. •... -
Page 3: Sheet Guides Installation
4. Sheet guides installation 4.1 Entrance side guides Install the entrance guide provided in the Installation kit with the supplied M4-8mm long round tipped screws (2 Nos.). If installing the StreamPunch Ultra/MP directly downstream to a printer that utilizes a decurl unit, the Entrance guides need not be installed. -
Page 4: Docking Bracket Installation
5. Docking Bracket Installation The docking brackets are shipped in a separate bag along with size M4 mounting screws (not shown). The screws are 6mm long. Important Note: If installing punch unit directly downstream to a printer that utilizes a decurl unit, docking bracket D434-1476 must be used to complete installation. -
Page 5: Cable Connections
6. Cable connections Power OFF the entire system before making the connections. It is important to turn OFF the main power switch inside the front door of the printer. a) Cable Connections for Finisher or Stack: Unplug and remove the finisher (or) stacker rear cover and plug the supplied communication cable to connector as shown below (see section 3. - Page 6 b) Cable Connection for GBC Communications Board: 1. Disconnect the Power Cord. 2. Remove the rear cover of the StreamPunch Ultra/MP. 3. Hold the Rear Cover in place so it doesn’t fall as you remove the M4 X 8 Screws (8) from the Rear Cover. 4.
- Page 7 Punch Finisher Jumper/ Jumper position & AC power cable position cable Ricoh StreamPunch Ultra/MP Installation Manual...
- Page 8 Once the jumper and AC Cable are set correctly then replace the rear cover. c) Plug the free end of the communication cable to the communication port of StreamPunch Ultra/MP in the rear side of the machine. c) Replace the finisher rear cover and make sure the finisher cable is plugged in. Ensure that the communication cables are not pinched anywhere.
-
Page 9: Leveling & Height Adjustment
7. Leveling & Height Adjustment 7.1 Height Setting No height adjustment of the StreamPunch Ultra/MP is required for an installation site with a level floor. If the floor is uneven then it is recommended to set the level of the StreamPunch Ultra/MP using the upstream device as a reference. -
Page 10: Final Steps
Using the 17mm (11/16”) wrench, rotate the caster stems to change the height. Re-tighten the jam nuts once the correct height is achieved. 8. Final Steps 8.1 Printer & Finisher Firmware Confirm that the printer and finisher have the latest firmware installed. Firmware is available for download www.tscweb.net (US) or https://www.my-ricoh.com/... - Page 11 8.3 StreamPunch Ultra MP settings In the StreamPunch Ultra MP LCD go to SETTINGS> PRINTER and select either CHARIS or MARTINI per the table below. This menu will not appear for StreamPunch Ultra. Printer Setting MARTINI MP 6503 MP 7503 MP 9003 IM C6500 CHARIS...
