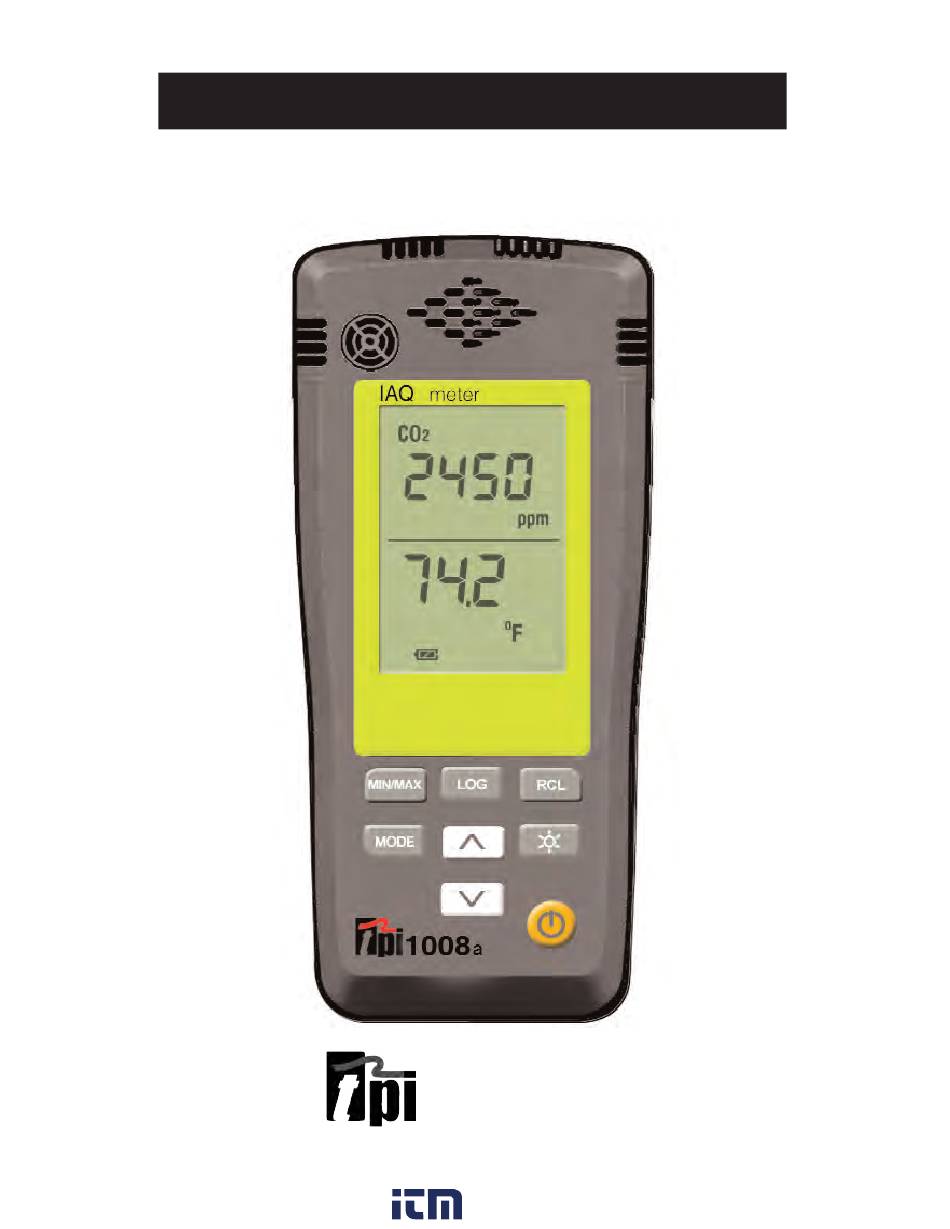

- Page 1 Indoor Air Quality Meter 1008a Rev. 3x Meters The Value Leader 1.800.561.8187 information@itm.com www. .com...
-
Page 2: Table Of Contents
Contents Introduction General Overview Familiarization Front View Soft Keys Back View Operation Turning On & Off / Performing a Test / Main Display Selecting Temperature Units Min / Max Mode Activating the Backlight Printing Test Results Setting CO2 Alarm Level Ambient Air CO2 Reset Data Logging Retrieving Logged Data... -
Page 3: Introduction
3 Year unit and 2 Year sensor Guarantee. 2. General Overview The 1008a IAQ meter uses state of the art sensors to measure carbon dioxide (CO2), and temperature. The CO2 sensor in your meter will need to be replaced periodically and calibration is recommended once every year. - Page 4 General Overview (Continued) This manual will guide you through the functions of the TPI 1008a which will give you many years of reliable service. Your TPI 1008a Indoor Air Quality meter comes complete with the following standard accessories: • TPI 1010 Instrument •...
-
Page 5: Familiarization
3. Familiarization 3.1 Front View CO2 & Temperature Sensor Location Infrared Window Display for Printing Test Results (Requires optional A740 printer) Protective Rubber Boot Keypad Power Adapter USB Port Socket Sensor Locations: Places where the CO and Temperature sensors are located and protected. Display : Large 2 Parameter Backlit LCD Display. -
Page 6: Soft Keys
3.2 Soft Keys On / Off key - Used to turn the IAQ meter on or off. Press to turn on, press and hold to turn off. Up Arrow key - Used to select and change parameters. Down Arrow key - Used to select and change parameters. Mode key - Used to switch between Celsius and Fahrenheit units of display and to enter CO2 alarm level input mode. -
Page 7: Back View
3.3 Back View Hanger Hole Tilt Stand Battery Cover Screw Hanger Hole: Use to hang instrument for hands free operation. Can be used with A127 magnetic strap kit or A103 hook. Tilt Stand: Use to stand instrument on a table. Batter Cover Loosen this screw and open cover to access batteries. -
Page 8: Operation
Battery indicator Temperature The 1008a has a CO2 alarm. If the CO2 level measured is at or above the set alarm level the 1008a will beep and the display will flash red as a warning. This alarm point is adjustable. Additional functions can be acti- vated during testing. -
Page 9: Selecting Temperature Units
Align the infrared window of the A740 printer with the infrared window of the 1008a located on the upper right side of the meter. Keep the printer in clear line of sight approximately 6 to 8 inches away from the 1008a. Press... -
Page 10: Setting Co2 Alarm Level
The CO2 sensor can be reset at ambient level as needed. This can be performed if the CO2 reading seems to be too high or low or just to ensure your 1008A is operating properly. Note: This does not take the place of a full factory calibration which is recommended once per year. -
Page 11: Data Logging
The logging interval tells the 1008a how often to sample. For example, a logging interval of 1 minute (01) means the 1008a will log a reading every minute. A log- ging interval of 10 minutes (10) means the 1008a will log a reading every 10 min- utes. -
Page 12: Retrieving Logged Data
6. Retrieving Logged Data Logged data can be displayed on the 1008a display or sent to a PC by using the USB cable and software included. The PC software also provides the capability of real time monitoring from a PC. -
Page 13: Technical Specifications
7. Technical Specifications Function Range Accuracy 0 to 5000ppm 50°F~104°F: ±(5% of rdg+75ppm) <50°F, >104°F: ±(10% of rdg+75ppm) Temperature -5°F to 140°F ±2°F -20°C to 60°C ±1°C Data Logging: Up to 50 samples 1 minute to 60 minutes in 1, 2, 3, 5, 10, 20, 30, 40, 50, 60 minute intervals Display Type: 2 line with annunciators and backlight CO2 Alarm: Audible and visual, selectable level (factory default off) -
Page 14: Maintenance
8. Maintenance It is recommended that the instrument be calibrated every 12 months. Please consult Test Products International for further details. 8.1 Battery Replacement When the batteries become low they will require replacement. 1. Turn the meter over so the back is facing you. 2. -
Page 15: Technical Information
9. Technical Information Recommended Levels by Agency Parameter IDPH ASHRAE OSHA PEL ACGIH TLV Humidity 20% - 60% 30% - 60% Temperature 68 - 75 (winter) 68 - 75 (winter) 73 - 79 (summer) 73 - 79 (summer) Carbon Dioxide 1,000ppm 1,000ppm 5,000ppm... -
Page 16: Error Codes & Troubleshooting
If the CO2 sensor fails to initialize or is faulty the 1008a will display an error code. Try turning the 1008a off and on again. If it displays the error code again the 1008a is in need of service. Please return your instrument to TPI.
