- Page 1 Indoor Air Quality Meter 1008 Rev. 2.x Meters The Value Leader...
-
Page 2: Table Of Contents
Contents Introduction General Overview Familiarization Front View Soft Keys Back View Operation Turning On & Off / Performing a Test / Main Display Selecting Temperature Units Min / Max Mode Activating the Backlight Setting CO2 Alarm Level Data Logging Retrieving Logged Data Technical Specifications Maintenance Battery Replacement... -
Page 3: Introduction
3 Year unit and 2 Year sensor Guarantee. 2. General Overview The 1008 IAQ meter uses state of the art sensors to measure carbon dioxide (CO2), and temperature. The CO2 sensor in your meter will need to be replaced periodically and calibration is recommended once every year. - Page 4 General Overview (Continued) This manual will guide you through the functions of the TPI 1008 which will give you many years of reliable service. Your TPI 1008 Indoor Air Quality meter comes complete with the following standard accessories: • TPI 1008 Instrument •...
-
Page 5: Familiarization

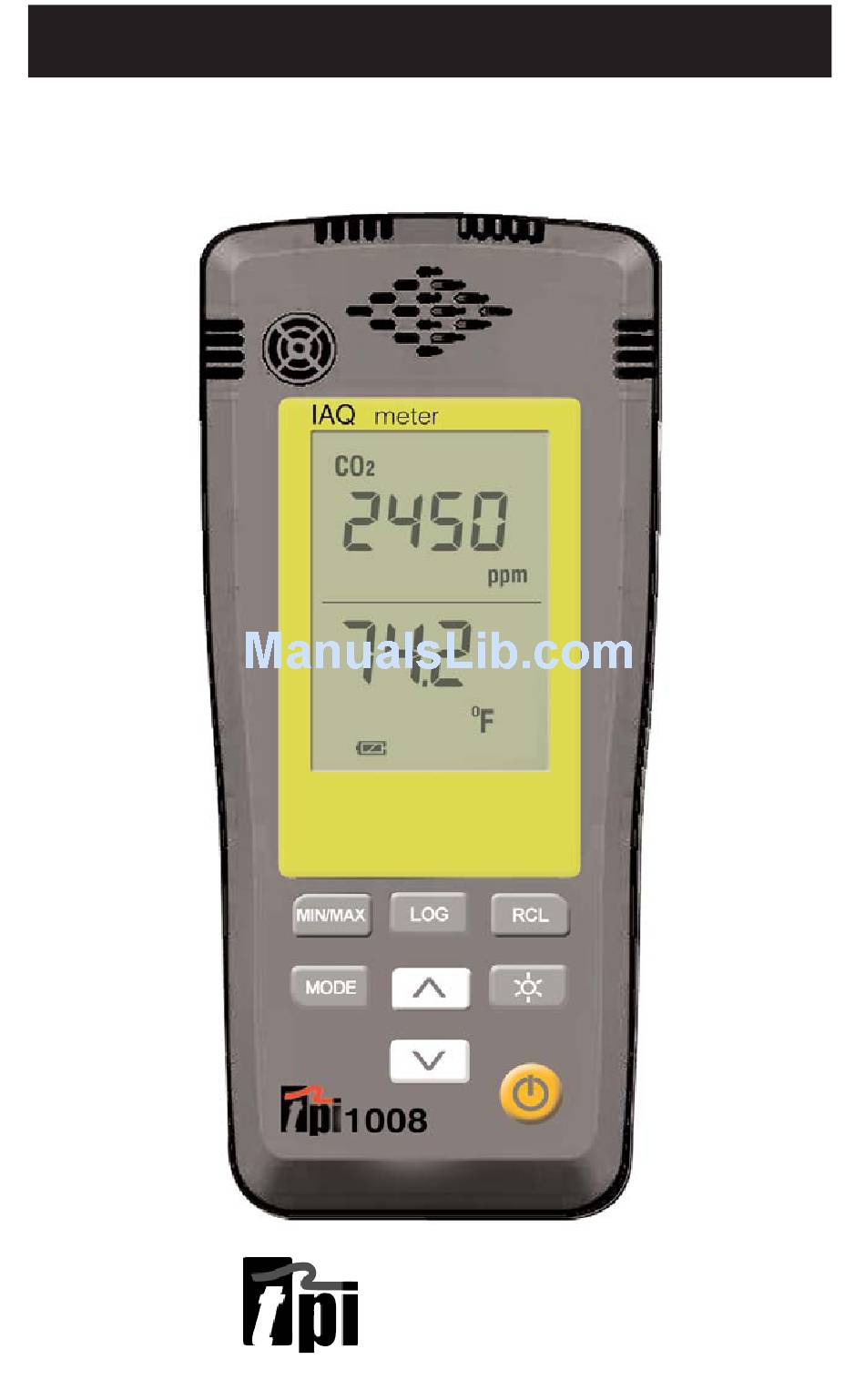

3. Familiarization 3.1 Front View CO2 & Temperature Sensor Location Display Protective Rubber Boot Keypad Power Adapter USB Port Socket Sensor Locations: Places where the CO and Temperature sensors are located and protected. Display : Large 2 Parameter Backlit LCD Display. Protective Rubber Boot Provides protection to meter housing and sensors. -
Page 6: Soft Keys
3.2 Soft Keys On / Off key - Used to turn the IAQ meter on or off. Press to turn on, press and hold to turn off. Up Arrow key - Used to select and change parameters. Down Arrow key - Used to select and change parameters. Mode key - Used to switch between Celsius and Fahrenheit units of display and to enter CO2 alarm level input mode. -
Page 7: Back View
3.3 Back View Hanger Hole Tilt Stand Battery Cover Screw Hanger Hole: Use to hang instrument for hands free operation. Can be used with A127 magnetic strap kit or A103 hook. Tilt Stand: Use to stand instrument on a table. Batter Cover Loosen this screw and open cover to access batteries. -
Page 8: Operation
Battery indicator Temperature The 1008 has a CO2 alarm. If the CO2 level measured is at or above the set alarm level the 1008 will beep and the display will flash red as a warning. This alarm point is adjustable. Additional functions can be acti- vated during testing. -
Page 9: Selecting Temperature Units
Min/Max mode and “Max Min” will be displayed. Pressing the In this mode the 1008 will keep track of the minimum, maximum, and average CO2 and Temperature being measured. When “Min Max” is displayed the 1008 will display the real time reading. -
Page 10: Setting Co2 Alarm Level
4.5 Setting CO2 Alarm Level The 1008 is equipped with an audible and visual alarm for carbon dioxide. The alarm level is factory set to off. When CO2 above the alarm level is measured, the 1008 will beep and the display will flash red. -
Page 11: Data Logging
The logging interval tells the 1008 how often to sample. For example, a logging interval of 1 minute (01) means the 1008 will log a reading every minute. A log- ging interval of 10 minutes (10) means the 1008 will log a reading every 10 min- utes. -
Page 12: Retrieving Logged Data
6. Retrieving Logged Data Logged data can be displayed on the 1008 display or sent to a PC by using the USB cable and software included. The PC software also provides the capability of real time monitoring from a PC. -
Page 13: Technical Specifications
7. Technical Specifications Function Range Accuracy 0 to 5000ppm 50°F~104°F: ±3% of rdg+75ppm <50°F, >104°F: ±5% of rdg+75ppm Temperature -5°F to 140°F ±2°F -20°C to 60°C ±1°C Data Logging: Up to 50 samples 1 minute to 60 minutes in 1, 2, 3, 5, 10, 20, 30, 40, 50, 60 minute intervals Display Type: 2 line with annunciators and backlight CO2 Alarm: Audible and visual, selectable level (factory default off) -
Page 14: Maintenance
- Include with the product your name, address, phone number, writ- ten description of the problem and proof of purchase date. Carefully package and return to: TPI / Attn. Repair 9615 SW Allen Blvd. Suite 104 Beaverton, OR 97005... -
Page 15: Technical Information
9. Technical Information Recommended Levels by Agency Parameter IDPH ASHRAE OSHA PEL ACGIH TLV Humidity 20% - 60% 30% - 60% Temperature 68 - 75 (winter) 68 - 75 (winter) 73 - 79 (summer) 73 - 79 (summer) Carbon Dioxide 1,000ppm 1,000ppm 5,000ppm... -
Page 16: Error Codes & Troubleshooting
If the temperature sensor fails to initialize or is faulty the 1008 will display an error code. Try turning the 1008 off and on again. If it displays the error code again the 1008 is in need of service. Please return your instrument to TPI.
