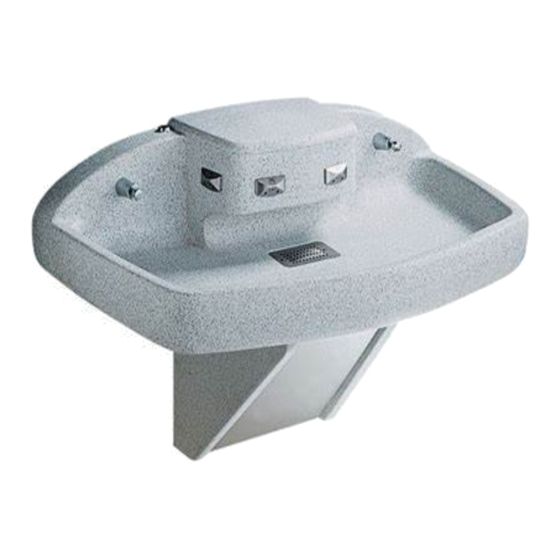

Bradley Terreon Quadra-Fount MF2949/IR Installation Manual

Wallhung washfountain with adaptive infrared control
Hide thumbs Also See for Terreon Quadra-Fount MF2949/IR:

Advertisement

Quick Links

Download this manual
Installation
Packing List
•
•
•
IS
T H
•
E
S ID
U P
215-1249 Rev. R; ECN 14-00-006
© 2014 Bradley
Page 1 of 12
6/5/2014
IMPORTANT!
Read this entire installation manual to ensure proper installation. When
finished with the installation, file this manual with the owner or maintenance
department.
Separate parts from packaging and make sure all parts are accounted for
before discarding any packaging material. If any parts are missing, do not
begin installation until you obtain the missing parts.
Water supply requires a flowing pressure of at least 20 psi, but no greater
than 80 psi.
Make sure that all water supply lines have been flushed and then completely
turned off before beginning installation. Debris in supply lines can cause
valves to malfunction.
Hardware supplied by installer must be appropriate for wall construction. Wall
anchors used must have a minimum pull-out rating of 1,000 lbs.
The adaptive infrared control must be connected with a 24 VAC Class II
transformer. Connections to 110 VAC can cause personal injury and will result
in damage to the electronics.
Product warranties may be found under "Product Information" on our web site
at www.bradleycorp.com.

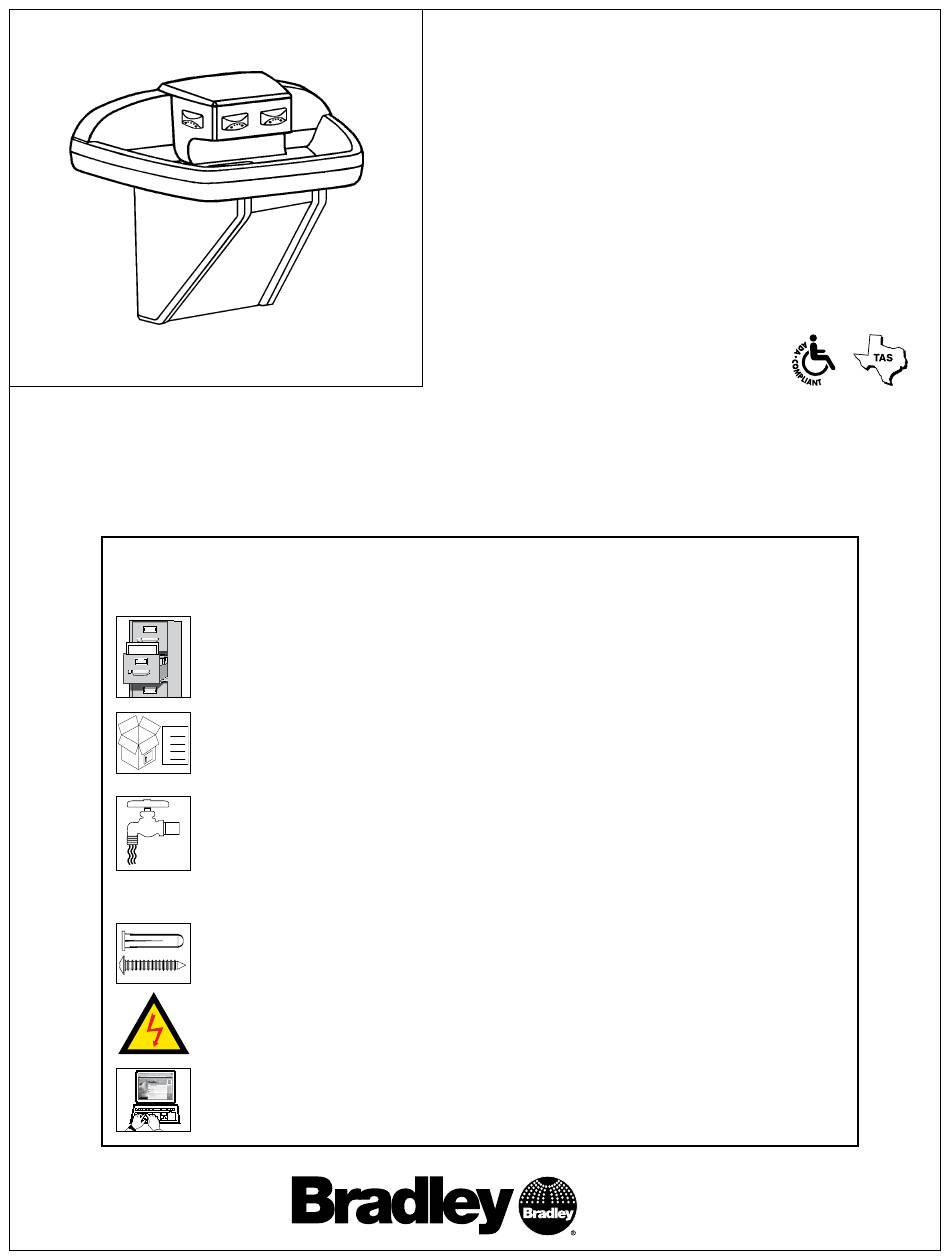

Installation
MF2949/IR
Terreon
Quadra-Fount
®
Hung Washfountain with Adaptive
Infrared Control
(Standard*, Juvenile* and OBC Height)
* Standard and Juvenile Height are ADA/TAS Compliant

Table of Contents

Pre-Installation Information . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-8
Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . . . . . .9-10
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-12
P .O . Box 309, Menomonee Falls, WI 53052-0309
Phone: 1-800-BRADLEY Fax: (262) 251-5817
http:\\www .bradleycorp .com
Wall-
™
. . . . . . . . . . . . . . . . . 3
™

Advertisement

loading
Need help?

Need help?

Do you have a question about the Terreon Quadra-Fount MF2949/IR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bradley Terreon Quadra-Fount MF2949/IR

Summary of Contents for Bradley Terreon Quadra-Fount MF2949/IR

  • Page 1: Table Of Contents

    Product warranties may be found under “Product Information” on our web site at www.bradleycorp.com. 215-1249 Rev. R; ECN 14-00-006 P .O . Box 309, Menomonee Falls, WI 53052-0309 Phone: 1-800-BRADLEY Fax: (262) 251-5817 © 2014 Bradley http:\\www .bradleycorp .com Page 1 of 12...

  • Page 2: Pre-Installation Information

    • 110 VAC power source for 110/24 VAC plug-in transformer supplied • OPTIONAL: Bradley recommends installing an electrical cut-off switch to the unit . This feature prevents accidental water delivery during regular maintenance and service . Pre-Installation Information Terreon material The Quadra-Fount is constructed of Terreon, a densified solid surface material composed of polyester resin .

  • Page 3: Parts Included With The Quadra-Fount

    Quadra-Fount until you obtain all parts . ™ Solenoid Assembly with Two Mounting Screws Hose-Stop Prepack - TL S45-2731 (optional) Hose Hose-Stop Prepack - TMA S45-2730 Stop Hose Stop Bradley • 215-1249 Rev. R; ECN 14-00-006 6/5/2014...

  • Page 4: Installation Instructions

    (641) 18-1/2" * Wall Frame (57) (470) 4-1/4" (108) 8-1/2" (216) Finished Floor Finished Floor * Subtract 1" from these dimensions for Ontario Building Code height or 4" for Juvenile Height Model. Bradley • 215-1249 Rev. R; ECN 14-00-006 6/5/2014...
  • Page 5 . Left Pedestal Tighten the screws to secure the pedestal panels to the frame assembly . Right Pedestal Bradley • 215-1249 Rev. R; ECN 14-00-006 6/5/2014...
  • Page 6 Install strainer in the bowl drain using the two #10-24 x 1/2" flat socket head screws supplied . Connect the drain trap (supplied by installer) to the drain spud and drain line . Bradley • 215-1249 Rev. R; ECN 14-00-006 6/5/2014...
  • Page 7 Yellow Supply Tube (From Sprayhead) Solenoid Tube Connector Transformer Circuit Plug Red Spade Terminal Green Spade Terminal Black Spade Terminal Navigator ® Mixing Valve Supply Inlet White Jumper Terminals Yellow Spade Terminal Bradley • 215-1249 Rev. R; ECN 14-00-006 6/5/2014...
  • Page 8 . Access Panel Tighten the screw to secure the bottom of the access panel in place . #10 - 32 x 3/8" Screw Bracket Slot Bradley • 215-1249 Rev. R; ECN 14-00-006 6/5/2014...

  • Page 9: Cleaning And Maintenance

    Avoid contact with harsh chemicals such as paint remover, bleach, acetone, etc. Avoid contact with hot pans and objects. Repair Kits: Terreon repair kits are available . Contact your Bradley representative or distributor for part numbers and pricing . Repair kits are made to order and have a shelf life of 30 days.
  • Page 10 . Many products named are regional in distribution, and can be found in local supermarkets, department and hardware stores, or through your cleaning service . It is emphasized that all products should be used in strict accordance with package instructions . Bradley • 215-1249 Rev. R; ECN 14-00-006 6/5/2014...

  • Page 11: Troubleshooting

    • reconnect to the adjacent valve and turn on the water supplies to the unit; • pass your hand in front of the sensor . If the station still fails to turn on, replace the sensor . Bradley • 215-1249 Rev. R; ECN 14-00-006 6/5/2014...
  • Page 12 198-014 Check Valve* 132-051 Retaining Ring* 118-319 Valve Body 146-079 U-Clip * Included with Prepack S65-326 Tempered Line Adapter Option Part no. S39-804 (replaces S59-4000 if tempered line is used) Strainer (173-028) Bradley • 215-1249 Rev. R; ECN 14-00-006 6/5/2014...
