215-1586 Rev. D; ECN 13-08-025
© 2014 Bradley
Page 1 of 22
4/9/2014

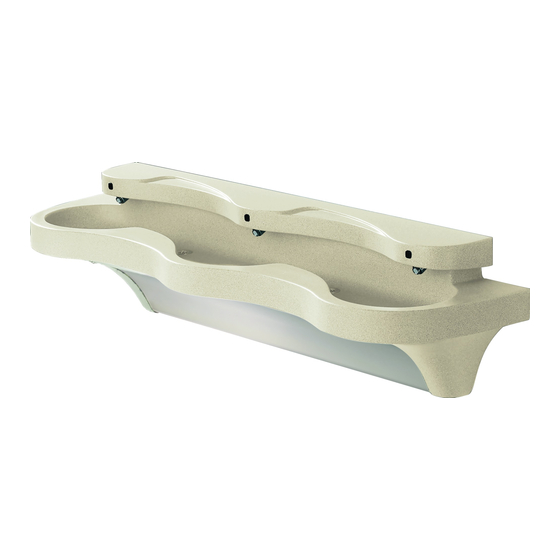

Installation
MG-3/NDT
Express
Lavatory System
®
MG-Series
with NDITE
®
Express
Lavatory Systems
®
are ADA and TAS compliant.
Patents Pending

Table of Contents

Supplies Required by Installer. . . . . . . . . . . . . . . . . . . . 2
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . 5-13
Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . . . 14
Assembly of Components . . . . . . . . . . . . . . . . . . . 15-18
Troubleshooting NDITE
Solenoid Valve Parts . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Valve Maintenance and Parts . . . . . . . . . . 22
®
Cleaning the Strainer . . . . . . . . . . . . . . . . . . . . . . . . . . 22
P.O. Box 309, Menomonee Falls, WI 53052-0309
Phone: 1.800.BRADLEY
bradleycorp.com
Infrared Control
Components . . . . . . . . . 19-20
®
Fax: 262.253.4161

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MG Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bradley MG Series

Summary of Contents for Bradley MG Series

  • Page 1: Table Of Contents

    Cleaning the Strainer ......22 215-1586 Rev. D; ECN 13-08-025 P.O. Box 309, Menomonee Falls, WI 53052-0309 © 2014 Bradley Phone: 1.800.BRADLEY Fax: 262.253.4161...

  • Page 2: Supplies Required By Installer

    • (8) ³⁄₈" wall anchors, bolts and 1" min. O.D. washers to mount main frame and bowl to wall (minimum pull-out rating of 1,000 lbs.) • ½" Nominal copper tubing for hot and cold supplies • 1½" NPT drain piping Bradley • 215-1586 Rev. D; ECN 13-08-025 4/9/2014...

  • Page 3: Dimensions

    (762mm) 57" (1445mm) 77" (1956mm) 22" (559mm) 9½" (241mm) 21½" *39" (546mm) (991mm) *33½" (851mm) *17½" *29½" (445mm) (749mm) *Subtract 4" from vertical dimensions for compliance with ADA guidelines for children’s use. Bradley • 215-1586 Rev. D; ECN 13-08-025 4/9/2014...
  • Page 4 30" (762mm) TAS Juvenile Height Grades Pre-K thru 5 or 6 26" (660mm) 14" (356mm) 37-1/2" (952mm) 32" TAS Juvenile Height (813mm) Grades 6 thru 8 or 9 28" (711mm) 16" (406mm) Bradley • 215-1586 Rev. D; ECN 13-08-025 4/9/2014...

  • Page 5: Installation Instructions

    STUB OUT 2" ³⁄₈" WALL ANCHORS, (8) PLACES MIN. PULL-OUT STRENGTH 1000 LBS. PER ANCHOR *Juvenile Height Mounting: Subtract 4" (102mm) from vertical dimensions for compliance with ADA guidelines for children’s use. Figure 1 Bradley • 215-1586 Rev. D; ECN 13-08-025 4/9/2014...
  • Page 6 4" (102mm) STUB OUT 2" FLOOR ½" NOMINAL COPPER TUBING FOR HOT AND COLD SUPPLIES STUB OUT 2" ³⁄₈" WALL ANCHORS, (8) PLACES MIN. PULL-OUT Figure 1b STRENGTH 1000 LBS. PER ANCHOR Bradley • 215-1586 Rev. D; ECN 13-08-025 4/9/2014...
  • Page 7 NOTE: The anchors will be used to mount the Express bowl and frame to the wall. 1-1/2" NPT DRAIN STUB OUT 2" 1/2" NOMINAL COPPER TUBING FOR HOT AND COLD SUPPLIES OR TEMPERED SUPPLY. STUB OUT 2" Figure 2 Bradley • 215-1586 Rev. D; ECN 13-08-025 4/9/2014...
  • Page 8 TERREON FRAME END CAP LEFT ³⁄₈" BOLTS AND WASHERS (6) PLACES ¼" - 20 SCREWS AND FINISHING WASHERS (6) PLACES STAINLESS STEEL TERREON ACCESS PANEL END CAP RIGHT FRONT VIEW Figure 3 Bradley • 215-1586 Rev. D; ECN 13-08-025 4/9/2014...
  • Page 9 ³⁄₈" BOLT AND WASHER FRAME SPRAYHEAD ³⁄₈" BOLT AND WASHER BOWL TERREON ¼"-20 x ½" END CAP (R) PAN HEAD SCREWS AND TERREON WASHERS END CAP (L) (4) PLACES Figure 4 BACK VIEW Bradley • 215-1586 Rev. D; ECN 13-08-025 4/9/2014...
  • Page 10 NAVIGATOR THERMOSTATIC MIXING VALVE SLOT IN FLEXIBLE FRAME SUPPLY HOSE Figure 5a Figure 5b Single Tempered Supply TO SUPPLY LINE FLEXIBLE SUPPLY HOSE TEMPERED (TO SOLENOID LINE ADAPTER BRACKET) (S39-804) Figure 5c Bradley • 215-1586 Rev. D; ECN 13-08-025 4/9/2014...
  • Page 11 4. Align the valve bracket mounting screws with slots on the frame. Let the valve bracket slide down to lock into place. NOTE: Optional Battery Power Pack (p/n S65-284) for quickstart power-up is available from Bradley. Bradley • 215-1586 Rev. D; ECN 13-08-025...
  • Page 12 SPRAYHEAD RH STATION) POWER MANAGEMENT MODULE SENSOR CABLE (FROM SPRAYHEAD GANG VALVE POWER-IN CENTER STATION) ASSEMBLY CABLE POWER SUPPLY CABLE GANG VALVE CIRCUIT BOARD SENSOR CABLE (FROM Figure 6b SPRAYHEAD LH STATION) Bradley • 215-1586 Rev. D; ECN 13-08-025 4/9/2014...
  • Page 13 Push cover down and tighten screw. 4. After testing is complete, reinstall access panel to frame. Fasten access panel with the six panel screws and washers provided (Figure 3, page 8). Figure 7 Bradley • 215-1586 Rev. D; ECN 13-08-025 4/9/2014...

  • Page 14: Cleaning And Maintenance

    • Repair kit: In the unlikely event your Terreon surface becomes damaged, it can easily be repaired. Contact your Bradley representative to order a repair kit and be sure to specify color when ordering. Stainless Steel Access Panel cleaning Stainless steel is extremely durable, and maintenance is simple and inexpensive.

  • Page 15: Assembly Of Components

    1/4"-20 x 1/2" 1/4"-20 (269-1697) DRAIN PLUG PAN HEAD WASHER OPTIONAL P-TRAP (P16-072) SCREW (qty. 4) (qty. 4) (CHROME-PLATED BRASS) (142-002DB) (160-389) 1/8" RUBBER WASHER (S29-094) (125-001DP) WASTE SHOE (111-062) WASTE TEE (111-063) Bradley • 215-1586 Rev. D; ECN 13-08-025 4/9/2014...
  • Page 16 FRAME ⁵⁄₁₆" I.D. BRAIDED HOSE NAVIGATOR MIXING VALVE Figure 9 SOLENOIDS SPRAYHEAD BODY SPRAYHEAD ASSEMBLY MOUNTING LOCATION S05-166 TO BOWL (5) PLACES Figure 10 Bradley • 215-1586 Rev. D; ECN 13-08-025 4/9/2014...
  • Page 17 30" (251-019A) 60" (251-019B) INFRARED WINDOW 269-1241 SPRAYHEAD 110-115 CONNECTOR ¼" TUBE 145-089 ACCESS PLATE 150-201 SCREW BUTTON HD SOCKET HOUSING, #10-24 160-138 Figure 11a FLOW CONTROL S05-142A WINDOW PURPLE EYE Figure 11b Bradley • 215-1586 Rev. D; ECN 13-08-025 4/9/2014...
  • Page 18 ¼" ELBOW (145-090) AERATOR HOUSING (115-133) O-RING INFRARED (125-001CK) WINDOW "A" (269-1241) DIFFUSER (269-508) SENSOR EYES STREAMFORMER LENGTH OF “A" = 36" (251-019A) (115-125) LENGTH OF “A" = 60" (251-019B) SCREW (160-289) Bradley • 215-1586 Rev. D; ECN 13-08-025 4/9/2014...

  • Page 19: Components

    Also check for severe vandalism or other physical damage to the sprayhead. If there is inadequate lighting available in the location where the unit is installed, add additional lighting. If additional lighting is unavailable, the system may be converted to battery power. Contact Bradley and order Battery Pack Kit S45-2083 (one per station) Cause: Improper water pressure.
  • Page 20 2. Inspect the stop valves for proper installation. 3. Inspect mixing valve for proper hot and cold installation. A red marking indicates the hot inlet. Bradley • 215-1586 Rev. D; ECN 13-08-025 4/9/2014...

  • Page 21: Solenoid Valve Parts

    125-165 O-RING, #2-013 SOLENOID VALVE W/CIRCUIT BOARD CLOSED BODY (S07-082) THRU BODY (S07-082A) CIRCUIT BOARD (S83-178) PAN-HEAD SCREW 6-19 x 3/4" (160-451) VALVE ASSEMBLY CLOSED BODY (S07-072) THRU BODY (S07-072A) Figure 12 Bradley • 215-1586 Rev. D; ECN 13-08-025 4/9/2014...

  • Page 22: Navigator ® Valve Maintenance And Parts

    198-014 Check Valve* 132-051 Retaining Ring* 118-319 Valve Body 146-079 U-Clip * Included with Prepack S65-326 Tempered Line Adapter Option Part no. S39-804 (replaces S59-4000 if tempered line is used) Strainer (173-028) Bradley • 215-1586 Rev. D; ECN 13-08-025 4/9/2014...
