215-1480 Rev. K; ECO 19-00-022
© 2019 Bradley
Page 1 of 15
7/10/2019

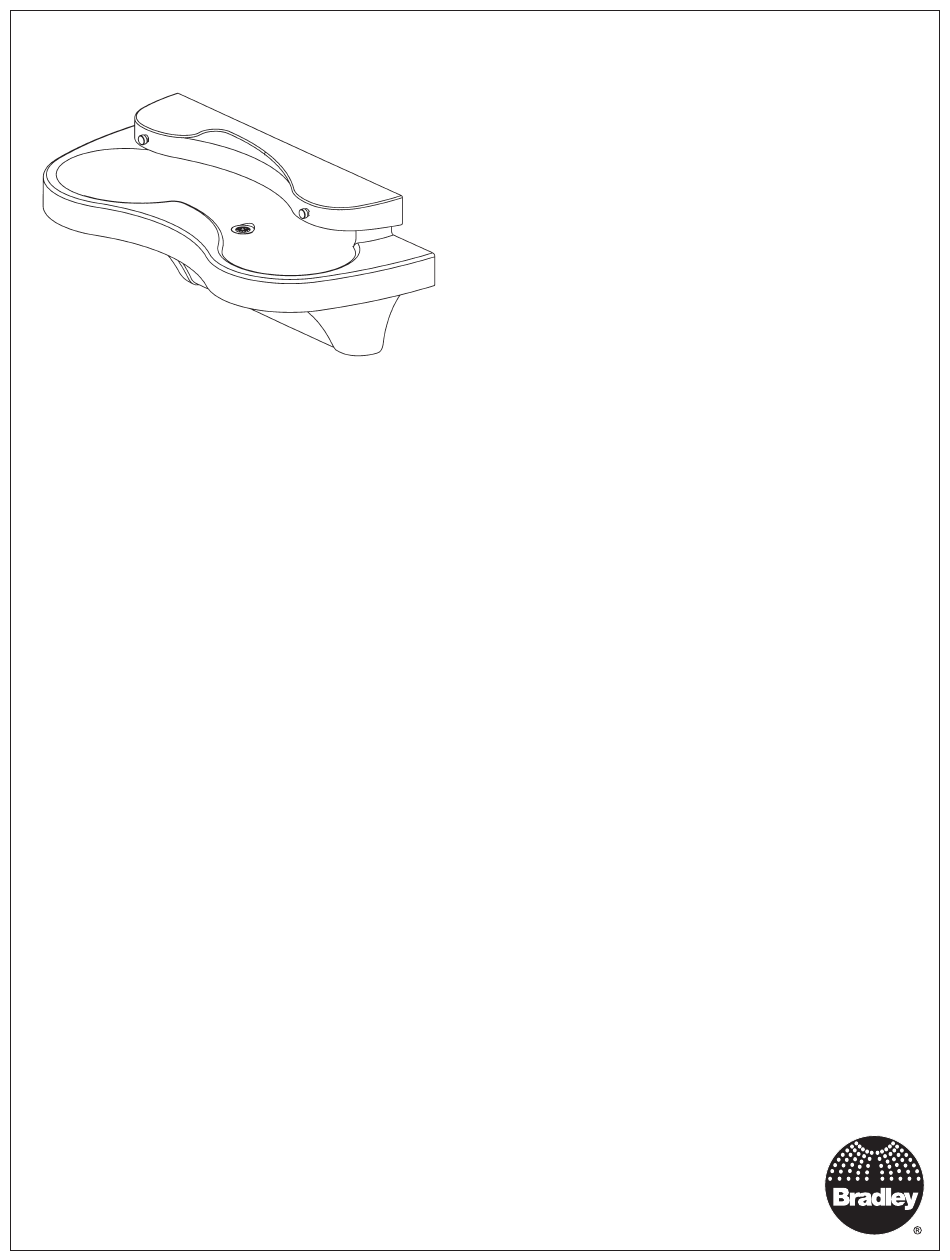

Installation
MG-2 TouchTime
Express

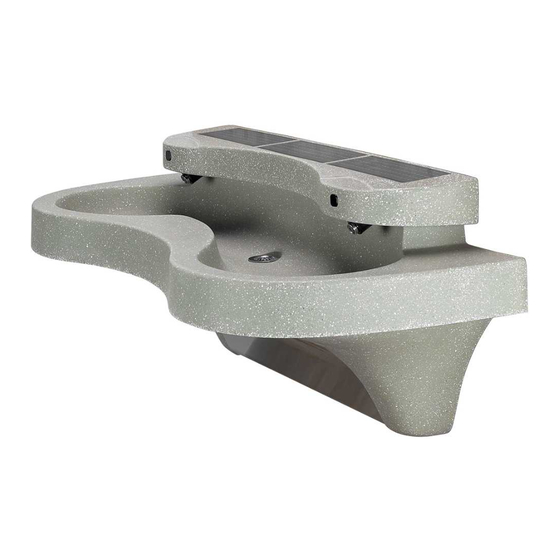

Lavatory System - MG Series
®
with TouchTime Metering
Table of Contents
Pre-Installation Information ................................................2
Supplies Required .............................................................2
Dimensions .....................................................................3-4
Rough-Ins ..........................................................................5
Mount the Frame ...............................................................6
Install the Bowl ..................................................................6
Connect the Supply ...........................................................7
Install the Drains ................................................................8
Connect the Electrical and Tubing .....................................8
Adjust the TouchTime Module ...........................................9
Mount TouchTime Modules ...............................................9
Adjust the Temperature....................................................10
Components ...............................................................11-12
Assembly and Solenoid Valve Access ........12
®
Cleaning and Maintenance ..............................................13
Troubleshooting ..........................................................14-15
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
+1 262 251 6000
®
P.O. Box 309
bradleycorp.com
Advertisement
Table of Contents
Related Manuals for Bradley TouchTime MG Series
Summary of Contents for Bradley TouchTime MG Series
-
Page 1: Table Of Contents
Assembly and Solenoid Valve Access ..12 ® Cleaning and Maintenance ..........13 Troubleshooting ............14-15 P.O. Box 309 215-1480 Rev. K; ECO 19-00-022 Menomonee Falls, WI 53052 USA © 2019 Bradley 800 BRADLEY (800 272 3539) +1 262 251 6000 Page 1 of 15 7/10/2019 bradleycorp.com... -
Page 2: Pre-Installation Information
• (8) 3/8" wall anchors, bolts and washers to mount frame and bowl to wall (minimum pull-out rating of 1,000 lbs.) • 1/2" Nominal copper tubing for hot and cold supplies and 1-1/2" NPT drain piping • 120V/220V 50/60Hz power source using Bradley supplied 120VAC/12V DC plug-in adapter Bradley • 215-1480 Rev. K; ECO 19-00-022... -
Page 3: Dimensions
27" (686) 47" (1194) 22" (mm) (559) 9½" (241) 21½" (546) *39" (991) *33½" (851) *29½" *17½" (749) (445) *Subtract 4" from vertical dimensions for compliance with ADA guidelines for children’s use. Bradley • 215-1480 Rev. K; ECO 19-00-022 7/10/2019... - Page 4 30" Grades Pre-K thru 5 or 6 (762) FLOOR 14" 26" (356) (660) (mm) 37½" (952) TAS Juvenile Height 32" Grades 6 thru 8 or 9 (813) FLOOR 16" 28" (406) (711) Bradley • 215-1480 Rev. K; ECO 19-00-022 7/10/2019...
-
Page 5: Rough-Ins
34" above finished floor to be compliant with Americans with Disabilities Act (ADA). When mounted at 33½" rim height, the MG-2 TouchTime Express meets ADA, ANSI and UFAS requirements for barrier-free ® clearances, reaches and controls. Always check local codes and ordinances for compliance. Bradley • 215-1480 Rev. K; ECO 19-00-022 7/10/2019... -
Page 6: Mount The Frame
Tighten the screws to secure the bowl assembly to the frame. Do not overtighten. If necessary, adjust sprayhead body to fit closely to the wall by adjusting the sprayhead mounting bolts. Refer to the components illustration for bolt locations. Bradley • 215-1480 Rev. K; ECO 19-00-022 7/10/2019... -
Page 7: Connect The Supply
Slide the valve bracket up and lift it from the frame. Connect one end of flexible hose to the tempered line adapter. Connect the other swivel end to the stop. Bradley • 215-1480 Rev. K; ECO 19-00-022 7/10/2019... -
Page 8: Install The Drains
TouchTime module. Connect button connector to TouchTime module. Splitter Plug-In Adapter (261-147A) Activation of the push button takes place only when it is released, thereby preventing “hold open” activation. Bradley • 215-1480 Rev. K; ECO 19-00-022 7/10/2019... -
Page 9: Adjust The Touchtime Module
A though F for 24 hours flush) as indicated on the module label. Power Connection Mount TouchTime Modules Secure (2) TouchTime modules with hook and loop fasteners to frame in approximate locations shown. Bradley • 215-1480 Rev. K; ECO 19-00-022 7/10/2019... -
Page 10: Adjust The Temperature
Reinstall the valve bracket. Turn on the water supply and check for leaks. Turn on the electrical power, trigger the TouchTime push button of each station until all air is purged from the lines and water is flowing smoothly. Reinstall the access panel. Bradley • 215-1480 Rev. K; ECO 19-00-022 7/10/2019... -
Page 11: Components
1/4"-20 x 1/2" 1/4"-20 P16-075 PAN HEAD WASHER SCREW (qty. 4) (qty. 4) Drain Plug (160-389) (142-002DB) P-Trap P16-072 269-1697 (Polypropylene) 1/8" Rubber Washer S29-094 125-001DP (Chrome-Plated Brass) Power Adapter (261-147A) TAILPIECE 129-056 Bradley • 215-1480 Rev. K; ECO 19-00-022 7/10/2019... -
Page 12: Touchtime ® Assembly And Solenoid Valve Access
1. Remove (2) screws and washers from the access plate assembly using a 1/8" Allen socket wrench. The access plate assembly is located underneath the sprayhead at two places. The assembly will drop down to access the pushbutton/ piezo switch assembly, aerator and tube connector. Bradley • 215-1480 Rev. K; ECO 19-00-022 7/10/2019... -
Page 13: Cleaning And Maintenance
For complete instructions on this additional maintenance, visit bradleycorp.com. Repair Kits: Terreon repair kits are available. Contact your Bradley representative or distributor for part numbers and pricing. Repair kits are made to order and have a shelf life of 30 days. -
Page 14: Troubleshooting
• reconnect to the adjacent valve and turn on the water supplies to the unit; • activate the pushbutton/piezo switch. If the station still fails to turn on, replace the pushbutton or piezo switch assembly. Bradley • 215-1480 Rev. K; ECO 19-00-022 7/10/2019... - Page 15 198-014 Check Valve* 132-051 Retaining Ring* 118-319 Valve Body 146-079 U-Clip * Included with Prepack S65-326 Tempered Line Adapter Option Part no. S39-804 (replaces S59-4000 if tempered line is used) Strainer (173-028) Bradley • 215-1480 Rev. K; ECO 19-00-022 7/10/2019...
