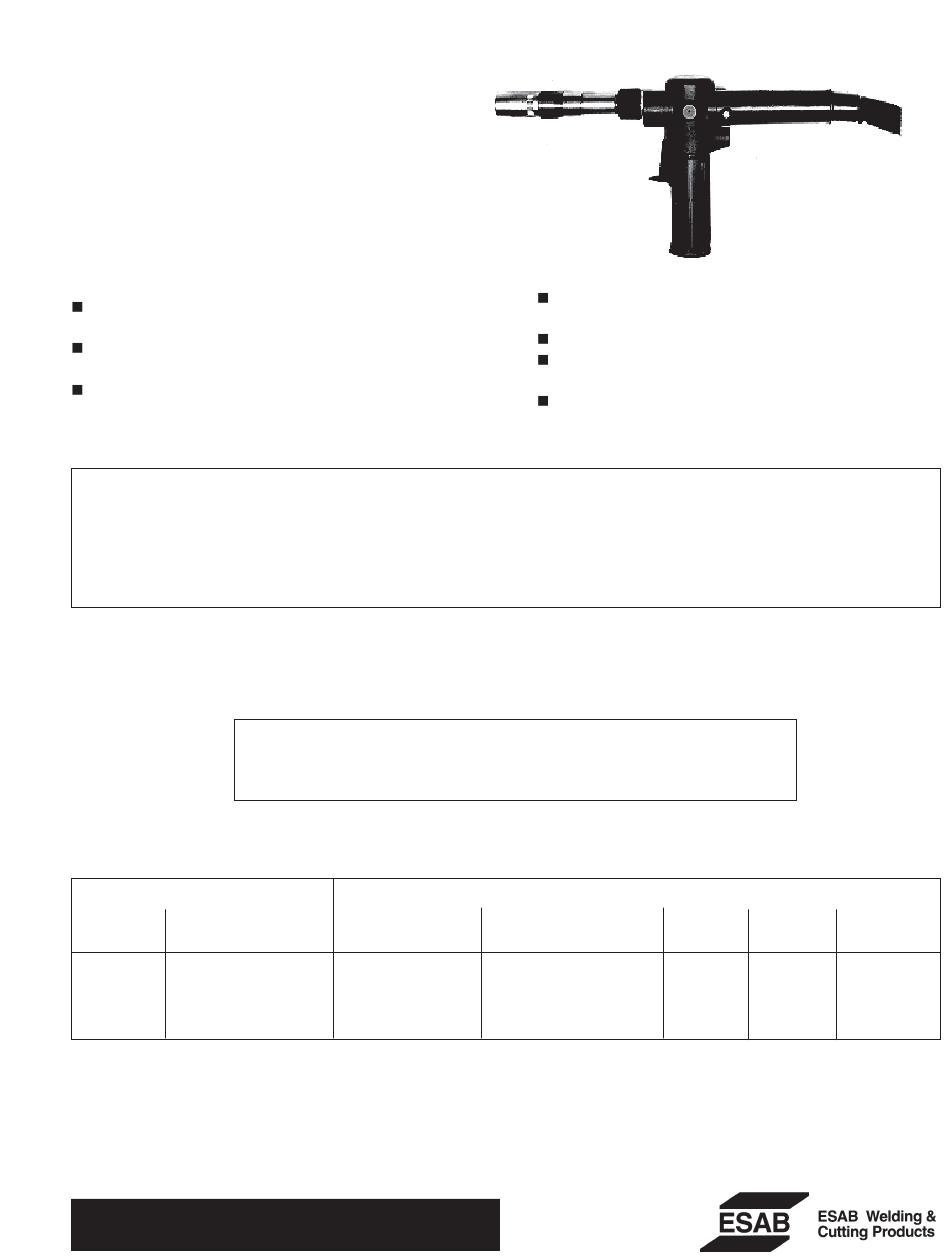

INSTRUCTIONS for
MIG-41
PUSH-PULL GUN
FEATURES/BENEFITS
couples up with most feeders to create a high
performance push-pull system
all electric drive automatically synchronizes with
wire feeder
liquid cooled design usable up to 450 amps;
uses ST16/21/21M consumables
These INSTRUCTIONS are for experienced operators. If you are not fully familiar with the principles of operation
and safe practices for electric welding equipment, we urge you to read our booklet, "Precautions and Safe
Practices for Electric Welding and Cutting," Form 52-529. Do NOT permit untrained persons to install, operate,
or maintain this equipment. Do NOT attempt to install or operate this equipment until you have read and fully
understand these instructions. If you do not fully understand these instructions, contact your supplier for further
information. Be sure to read the Safety Precautions on page 2 before installing or operating this equipment.
MIG-41 Gun Assembly
Torch Length
P/N
x Wire Size
600979
25-ft. x 0.035" soft
600980
25-FT. X 3/64" soft
604290
25-ft. x 1/16" soft
Be sure this information reaches the operator.
You can get extra copies through your supplier.
Table 1 - Available MIG-41 Push-Pull Gun Assemblies
MIG-41 Gun (25-ft. long) for 0.035-in. software ....................... 600979
MIG-41 Gun (25-ft. long) for 3/64-in. soft wire ......................... 600980
MIG-41 Gun (25-ft. long) for 1/16-in. soft wire ......................... 604290
Components Included with torch assembly
Contact Tip
P/N
632793 (.035)
632795 (3/64)
632797 (1/16)
ideal for feeding aluminum or other small diam-
eter wires long distances
quick disconnect convenience
repairable front end for easy low cost mainte-
nance
ideal for new installations or retrofits
Drive Roll
P/N
19269 (.035/.9mm)
19270 (3/64/1.2mm)
19736 (1/16/1.6mm)
F-14-363-A
October, 1997
Liner
Nozzle
Basic Gun
P/N
P/N
P/N
19304
(#10)*
(25-ft.)
19304
19305
