DMP Electronics 1184 Installation Manual

Description

The 1184 is a 3V battery powered wireless carbon
monoxide (CO) detector that provides early warning
when the electrochemical sensing technology measures
carbon monoxide levels in the air.
The detector consists of an electrochemical carbon
monoxide sensor assembly coupled with an 1100 Series
wireless transmitter and an audible sounder. The
transmitter can send alarm, trouble, tamper and low
battery condition messages to the alarm panel.
The 1184 is an ideal carbon monoxide detector for
difficult to wire locations, applications where room
aesthetics are critical or where hazardous materials
exist.

Compatibility

All DMP 1100 Series Wireless Receivers and Panels

What is Included

The 1184 Wireless Carbon Monoxide Detector includes the following items:
• One 1184 Carbon Monoxide Detector with DMP wireless transmitter installed
• One 3V lithium Model CR123-FIRE battery
• Hardware pack
• Zone name and number label
• Serial number labels

Transmitter Serial Number

For your convenience, an additional pre-printed serial number label is included. Prior to installing the device, record
the serial number or place the pre-printed serial number label on the panel programming sheet. This number is
required during programming. As needed, use the zone name and number label to identify a specific transmitter.

Programming the Transmitter in the Panel

Locate and record the detector serial number. This number is required during programming. Program the device
zone type in Zone Information during panel programming. At the Serial Number: prompt, enter the eight-digit serial
number. Continue to program the zone as directed in the panel programming guide. In addition to the detector's
audible sounder, if an Emergency zone type (EM) is selected, the bell output can also be programmed for a desired
indication in Bell Options panel programming.
Note: When a receiver is installed, powered up, or the panel is reset, the supervision time for transmitters is reset.
If the receiver has been powered down for more than one hour, wireless transmitters may take up to an additional
hour to send a supervision message unless tripped, tampered, or powered up. This operation extends battery life for
transmitters. A missing message may display on the keypad until the transmitter sends a supervision message.

Detector Annunciation Notifications

The 1184 provides the following transmitter messages, LED display, and audible annunciations:
Message
Alarm
Low battery
Detector head removed
Tamper
Detector End of Life
1184 Wireless Carbon Monoxide Detector
Keypad Display
ALARM
LO BAT
TROUBLE
TAMPER (XR100/XR500
XR150/XR350/XR550)
OPEN (XTL/XT30/XT50)
TROUBLE
Inst alla tIon GuIde
CO ENTRY PORTS

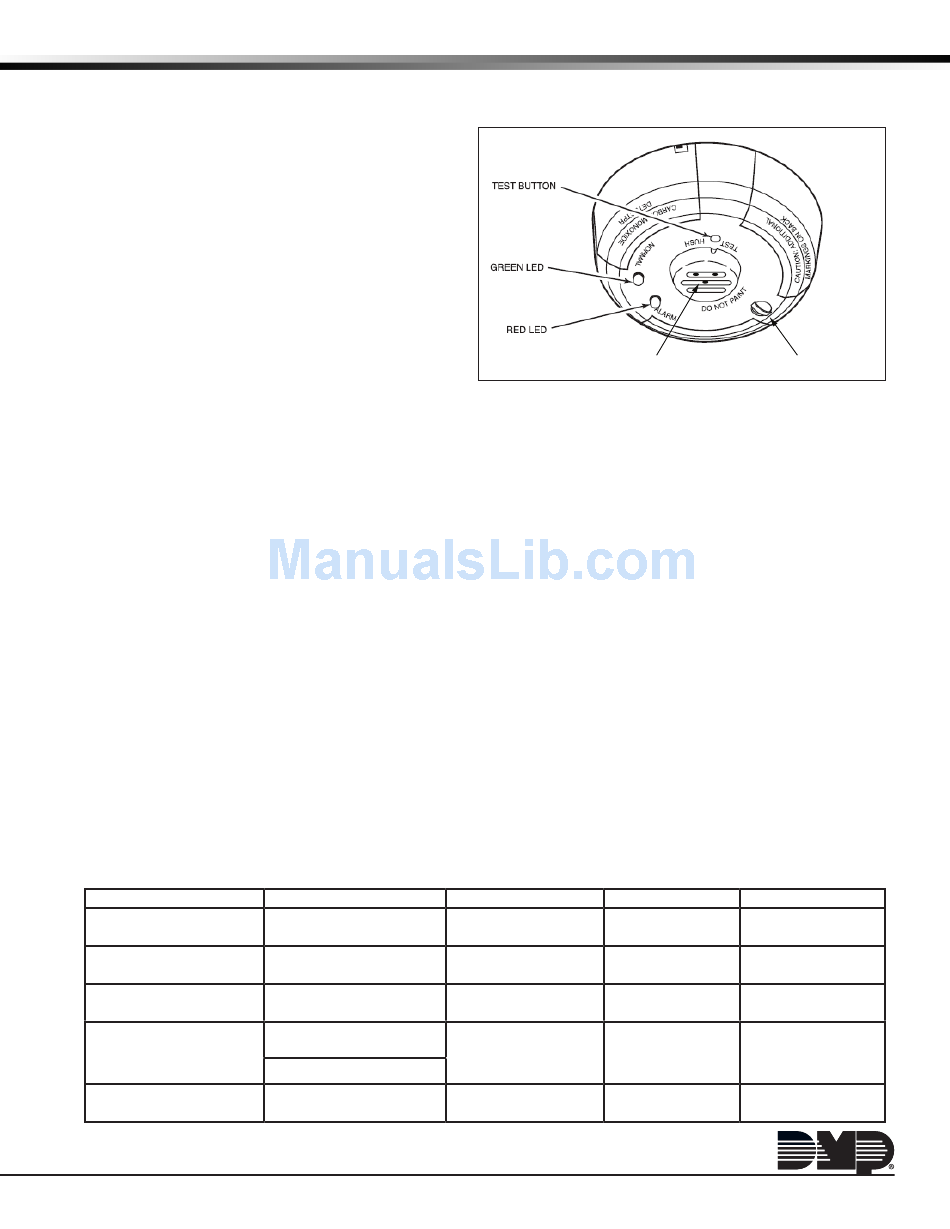

Figure 1: Carbon Monoxide Detector
Red LED
Blinks once every
second
Blinks once every 45
seconds
Blinks once every 5
seconds
Off
Blinks once every 10
seconds
AUDIBLE SOUNDER
Green LED Sounder
Off Temporal 4
Off Chirps after 7 days
Off One chirp every
45 seconds
On Off
Off One chirp every
45 seconds
