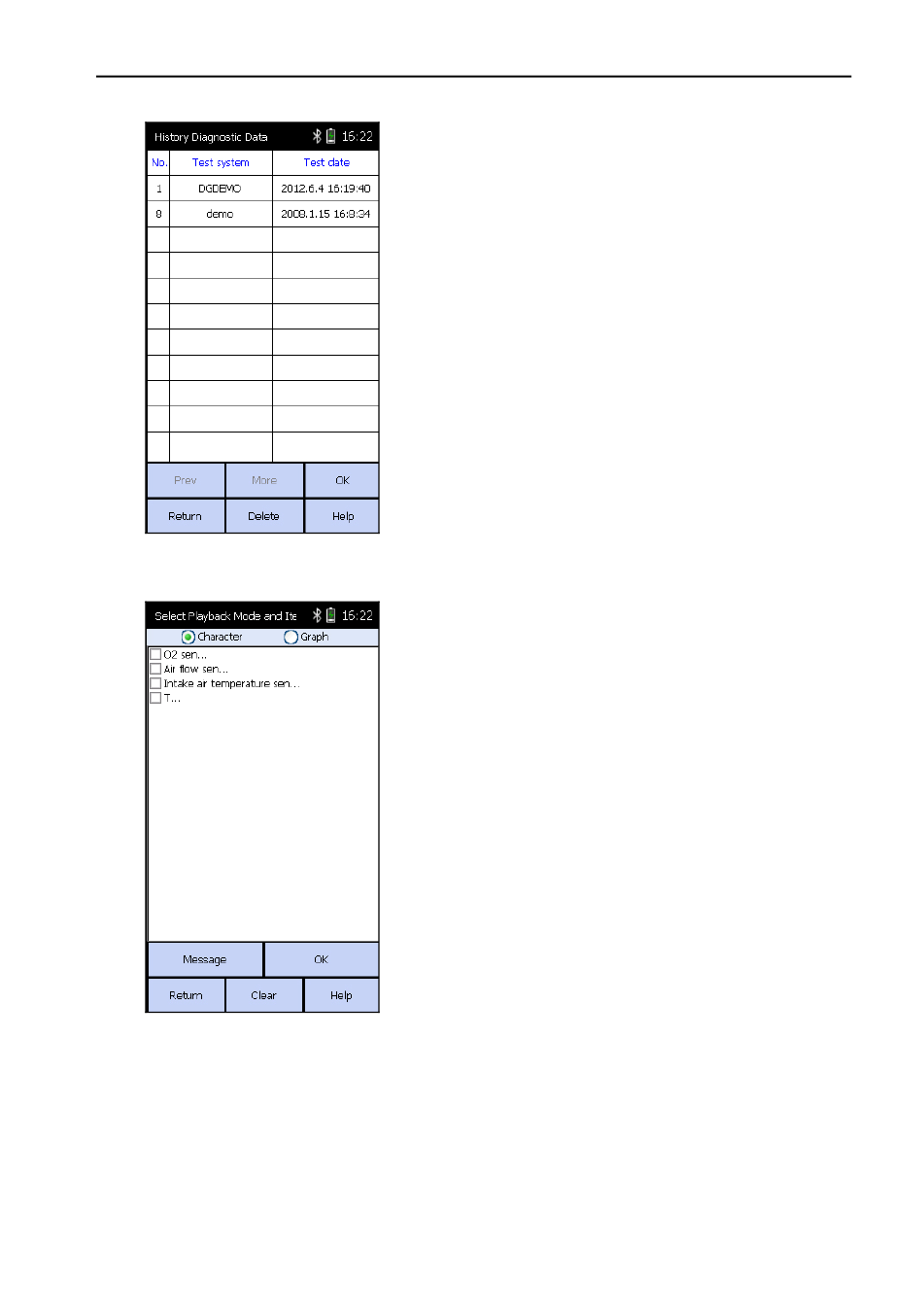

Fig. 3-21
Fig. 3-22
X-431 Diagun III English User's Manual
After clicking, the screen displays a list
of datastream file recorded in specific
durations for the tested vehicle make,
as shown on the left.
Click [OK] to view the recorded
datastream of the selected model in a
specific duration.
Button Description:
[Delete]: delete a record.
Click in the box to select parameters in
which you want to view the datastream,
the selected items will be marked with
'√'. You could select "Character" or
"Graph" to view datastream in different
form as you want, as shown on the left.
28
