convenience concepts 7100245 Assembly Instructions

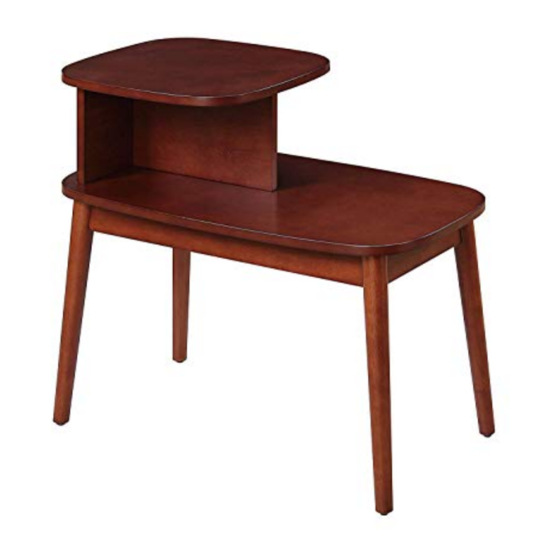

Maxwell end table

ASSEMBLY INSTRUCTIONS

We have designed our furniture with you , the customer in mind . Our clear , easy to follow ,

step by step instructions will guide you through the project from start to finish .

Feel confident that this will be a fun and rewarding project . The final product will be a quality

piece of furniture that will go together smoothly and give years of enjoyment .

Please do not return to the store

STOP

Broken or missing parts?

Need help with assembly?

If you have any questions just call 1-800-468-6447 or email us at

parts@convenience-concepts.com

MAXWELL END TABLE

7100245

Table of Contents

Need help?

Do you have a question about the 7100245 and is the answer not in the manual?

Page 1 MAXWELL END TABLE 7100245 ASSEMBLY INSTRUCTIONS We have designed our furniture with you , the customer in mind . Our clear , easy to follow , step by step instructions will guide you through the project from start to finish .
Page 2 Hardware List Bolt ( 8pcs ) Lock washer (8pcs) Flat washer (8pcs) Allen wrench ( 1pc ) Wood dowel ( 8pcs ) Panel List Top (1pc) Support panel (1pc) Support panel (1pc) Base (1pc) Leg (4pcs) Page 2 of 4...
Page 3 Step 1 *Place support panel on carpet or other soft surface. Insert 2.Connect support panel to support panel as shown . Step 2 Insert 2.Connect Support Panel assembly to base as shown . Press down Page 3 of 4...
Page 4 Step 3 Insert into Support Panel 2.Connect top to unit as shown . Press down Step 4 *Place unit on carpet or other soft surface. 1. Connect legs to base as shown using bolts (A) ,lock washers (B),ﬂat washers (C) and allen wrench (D) .
