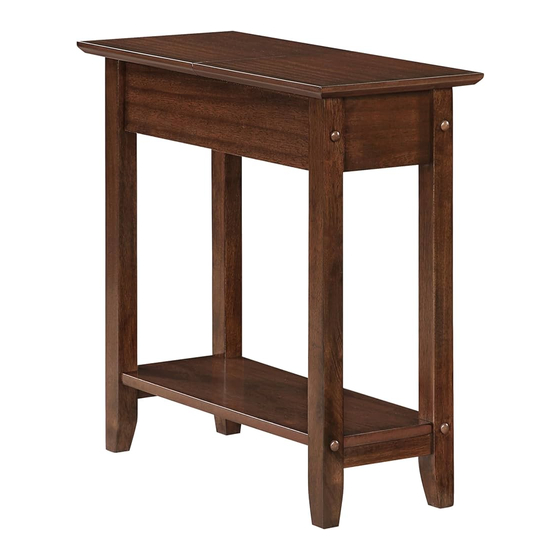

- Page 1 AMERICAN HERITAGE FLIP TOP STORAGE END TABLE 7105059 Page 1 of 4...
- Page 2 HARDWARE LIST PARTS LIST CODE NAME FIGURE Q'TY CODE NAME FIGURE Q'TY CAM LOCK 4PCS 4PCS CAM BOLT WOOD DOWEL 8PCS ( 6 x 30) Φ ALLEN BOLT 8PCS 2PCS (M4 x 60) 8PCS ALLEN WRENCH (M4 x 110) STEP 1 HARDWARE NEEDED A x 4...
- Page 3 STEP 3 1.) Insert Bottom Panel ( 5 ) into grooves of Panels ( 2 ) and ( 3 ) and slide it into groove of Side Panel ( 4 ) C x 4 STEP 4 E x 2 1.) Insert Wood Dowels ( C ) into Panels ( 2 ) and ( 3 ) as shown. 2.) Attach Side Frame ( 4 ) to Top Shelf Assembly.
- Page 4 STEP 6 D x 4 E x 4 1.) Using lat Head Screw (D), fasten Screws (D) *Do not overtighten Screws ( D )* STEP 7 1.) Turn Table Over 2.) Insert Plugs (E ) as shown. 3.) Enjoy your new quality piece of furniture for years to come! Page 4 of 4...
