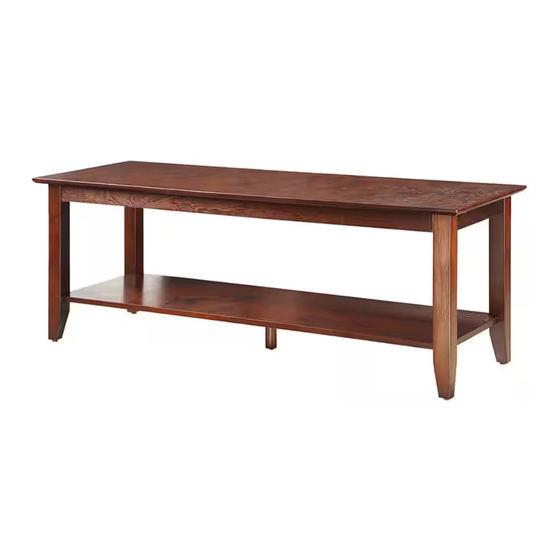

AMERICAN HERITAGE COFFEE TABLE WITH SHELF
HARDWARE LIST
CODE
NAME
CAM BOLTS
A
（6.5*35mmL）
CAM LOCKS
B
（
Ø
）
15x mm
9
ALLEN SCREW
C
（Ø1/4*45mmL）
WASHER
D
（Ø1/4*16mmL）
LOCK WASHER
E
(Ø1/4*11*1.5mmL)
ALLEN WRENCH
F
（4*21*57mmL）
Please do not return to the store
. Broken or Missing Parts?
. Need help with Assembly?
If you have any questions just call 1-800-468-6447 or email us at
parts@convenience-concepts.com
ITEM NO.
7104088
7103082BL
FIGURE
Q'TY
4PCS
4PCS
4PCS
4PCS
4PCS
1PC
PARTS LIST
CODE
NAME
1
TOP PANEL
2
BOTTOM PANEL
3
LEG
4
COLOR STICK
5
BOTTOM LEG
FIGURE
Q'TY
1PC
1PC
4PCS
1PC
1PC
