Snapmaker Enclosure Installation Manual page 10

Guide for Enclosure
Assemble the Enclosure
1:1
M4 x 4 Screw
x 4
Frame Piece x 1
Frame Piece with Bulges x 2
Frame Piece with Magnets x 1

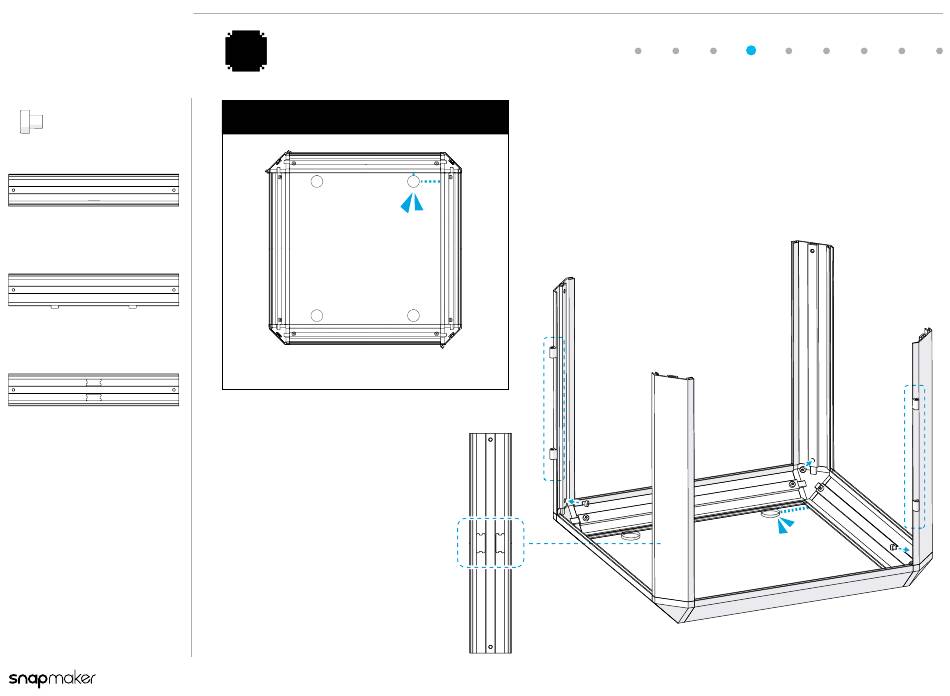

Connect the four frame pieces to the corner
4
brackets of the bottom as illustrated
Notice
1
4
Position the assembled part as illustrated.
Take 2 frame pieces with bulges and attach them to
2 corners 1 and 3. Attach the frame piece with magnets to
corner 4 and the last piece to corner 2.
1
3
Frame Piece
2
4
with Magnets
3
