R&G RGH0007BK Fitting Instructions Manual

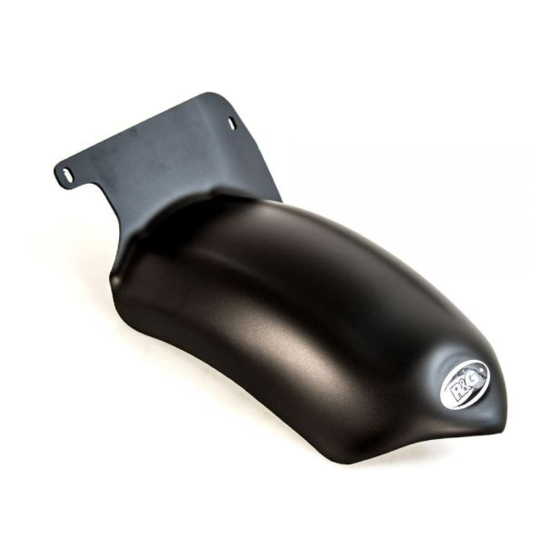

Rear hugger for honda nc700x/s/dct/integra&nc750x&s
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

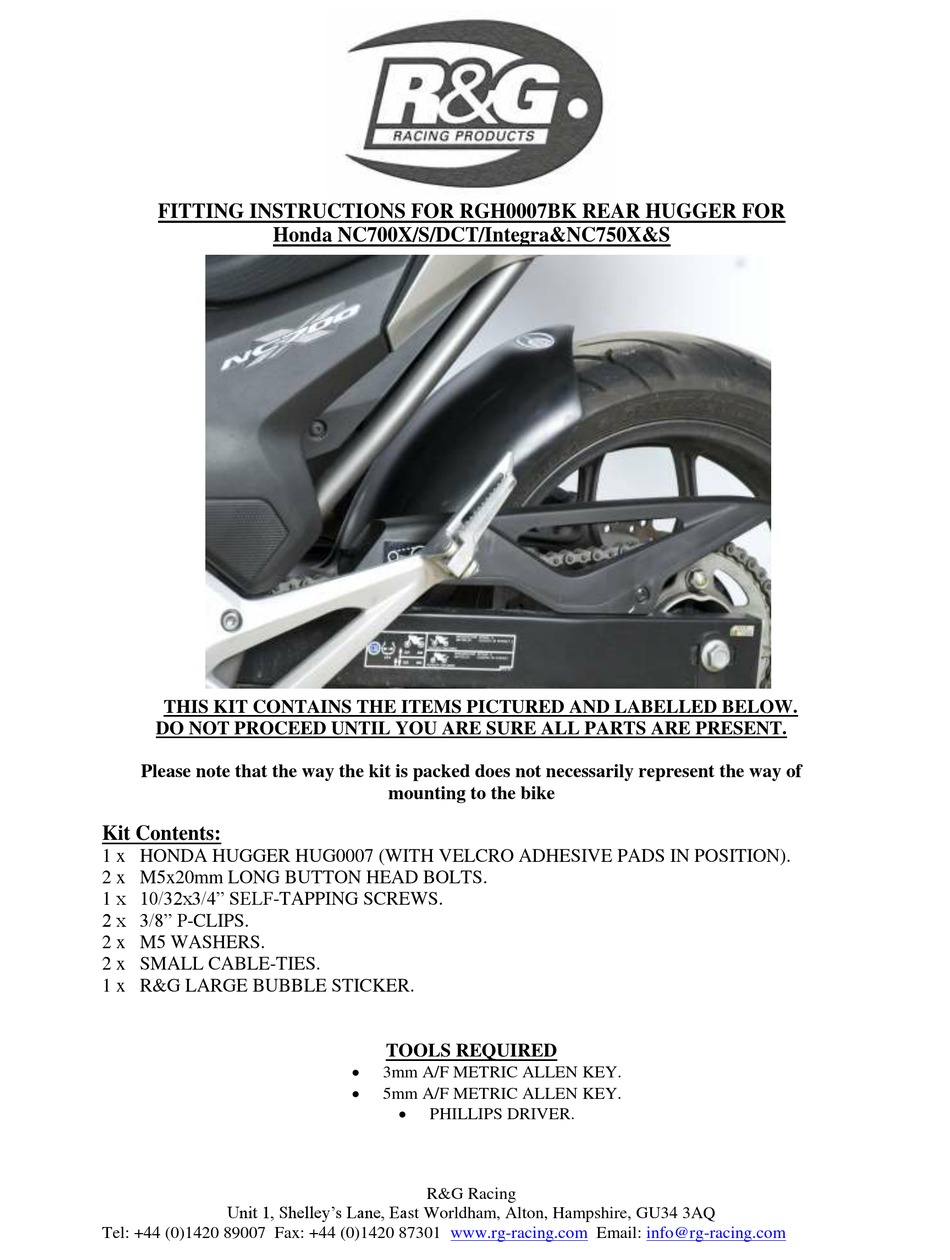

Fitting Instructions FOR RGH0007BK REAR HUGGER FOR
Honda NC700X/S/DCT/Integra&NC750X&S
THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW.
DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT.
Please note that the way the kit is packed does not necessarily represent the way of

Kit Contents:

1 x HONDA HUGGER HUG0007 (WITH VELCRO ADHESIVE PADS IN POSITION).
2 x M5x20mm LONG BUTTON HEAD BOLTS.
1 x 10/32x3/4" SELF-TAPPING SCREWS.
2 x 3/8" P-CLIPS.
2 x M5 WASHERS.
2 x SMALL CABLE-TIES.
1 x R&G LARGE BUBBLE STICKER.
