RSET027
FITTING INSTRUCTIONS FOR RSET027BK ADJUSTABLE REAR SET
FOR YAMAHA YZF-R1 2015-
Page | 1

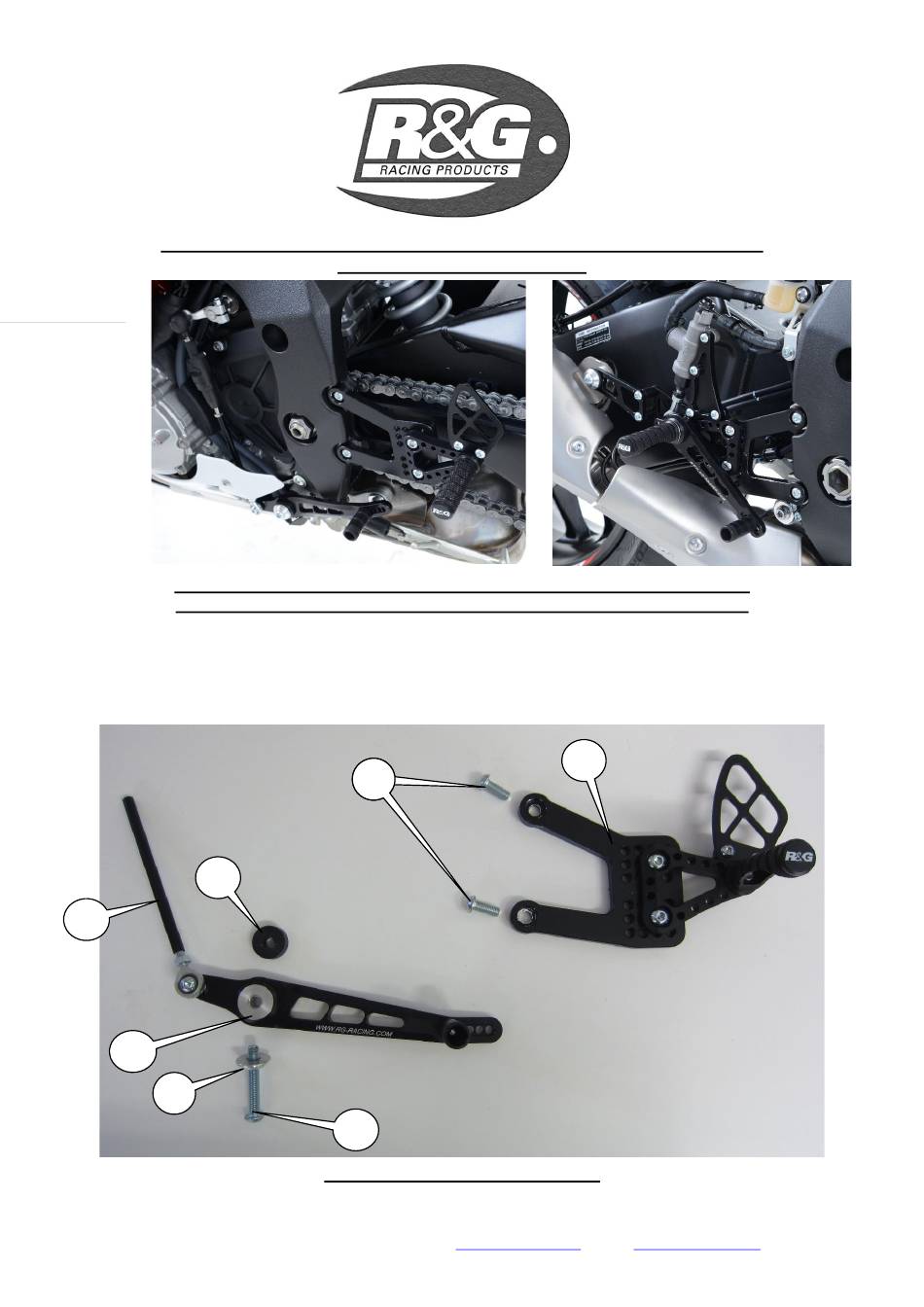

THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW.
DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT.
Please note that the way the kit is packed does not necessarily represent the way of
mounting to the bike
T
(
)
HE PARTS SHOWN MAY BE REPRESENTATIVE ONLY
FOR CLARITY OF INSTRUCTIONS ONLY
7
6
6
5
4
3
2
1
LEFT HAND/GEAR SHIFT SIDE
R&G Racing
Unit 1, Shelley's Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301
www.rg-racing.com
Email:
info@rg-racing.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for R&G RSET027BK
Summary of Contents for R&G RSET027BK
- Page 1 RSET027 FITTING INSTRUCTIONS FOR RSET027BK ADJUSTABLE REAR SET FOR YAMAHA YZF-R1 2015- Page | 1 THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW. DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT. Please note that the way the kit is packed does not necessarily represent the way of...
- Page 2 RSET027 Page | 2 RIGHT HAND/BRAKE SIDE R&G Racing Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com...
- Page 3 RSET027 LEGEND ITEM 1= GEAR SHIFT LEVER BOLT (M8x50mm long) (x1). ITEM 2= GEAR SHIFT LEVER SPACER (x1). ITEM 3= GEAR SHIFT LEVER ASSEMBLY (x1). ITEM 4= GEAR SHIFT SHAFT (130mm long) (x1). Page | 3 ITEM 5= GEAR SHIFT LEVER SPACER (10mm wide) (x1). ITEM 6= M8x20mm LONG BUTTON HEAD BOLTS (2x each side) (x4).
- Page 4 RSET027 Page | 4 PICTURE 3 PICTURE 4 PICTURE 5 PICTURE 6 PICTURE 7 PICTURE 8 R&G Racing Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com...
- Page 5 RSET027 Page | 5 PICTURE 9 PICTURE 10 PICTURE 11 PICTURE 12 PICTURE 13 PICTURE 14 R&G Racing Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com...
- Page 6 RSET027 Page | 6 PICTURE 15 PICTURE 16 PICTURE 17 PICTURE 18 PLEASE BE AWARE THAT EACH ASSEMBLY PROVIDED IS ONLY LOOSELY ASSEMBLED. FULL FITTING WILL REQUIRE TIGHTENING OF EACH BOLT TO RECOMMENDED TORQUE WITH THE ADDITION OF A THREAD LOCKING COMPOUND –...
- Page 7 RSET027 • Loosen the lock nut arrowed in picture 3 and remove the original gear shift rod. • Undo and remove the bolt arrowed in picture 19, then remove the gear shift shaft bracket and rotate through 180 degrees as indicated in picture 20. •...
- Page 8 RSET027 • Adjust the foot rest and toe peg for comfort and operation. • Before riding please check all bolts are tightened and the operation and position of all parts. • Tighten all bolts and lock-nuts. • Please check operation of the brake before riding. Brake Light Banjo Switch Page | 8 •...
- Page 9 RSET027 INSTRUCTIONS DE MONTAGE POUR RSET027BK JEU ARRIERE AJUSTABLE FOR YAMAHA YZF-R1 2015- Page | 9 Le kit contient les articles exposés ci-dessous, vérifier que toutes les pièces soient présentes avant de procéder au montage. La façon dont le kit est emballé ne correspond pas forcément à la façon de monter les pièces sur la moto.
- Page 10 RSET027 Page | 10 COTE DROIT / COTE FREIN R&G Racing Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com...
-
Page 11: Outils Requis
RSET027 LEGENDE ARTICLE 1= BOULON DE LEVIER DE VITESSES (M8x50mm de long) (x1). Page | 11 ARTICLE 2= ENTRETOISE DE LEVIER DE VITESSES (x1). ARTICLE 3= ASSEMBLAGE DE LEVIER DE VITESSES (x1). ARTICLE 4= ARBRE DE LEVIER DE VITESSES (130mm de long) (x1). ARTICLE 5= ENTRETOISE DE LEVIER DE VITESSES (10mm de large) (x1). - Page 12 RSET027 Page | 12 PHOTO 3 PHOTO 4 PHOTO 5 PHOTO 6 PHOTO 7 PHOTO 8 R&G Racing Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com...
- Page 13 RSET027 Page | 13 PHOTO 9 PHOTO 10 PHOTO 11 PHOTO 12 PHOTO 13 PHOTO 14 R&G Racing Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com...
- Page 14 RSET027 Page | 14 PHOTO 15 PHOTO 16 PHOTO 17 PHOTO 18 SACHEZ QUE CHAQUE ASSEMBLAGE FOURNI EST ASSEMBLÉ LIBREMENT. UN MONTAGE COMPLET NÉCESSITERA LE SERRAGE DE CHAQUE BOULON AU COUPLE RECOMMANDÉ AVEC L'ADDITION D'UN COMPOSÉ DE BLOCAGE DE FILET - TEL QUE R&G THREAD LOCK.
- Page 15 RSET027 Desserrer l’écrou de blocage, voir photo 3 puis enlever la rotule de levier de vitesses d’origine. • Enlever le boulon indiqué sur la photo 19, puis enlever le support d’arbre de levier de vitesses • avant de le tourner à 180 degrés, comme sur la photo 20. Remettre et insérer le boulon pour clipser le support d’arbre du levier de vitesses.
- Page 16 RSET027 ATTENTION : SI CELA N’EST PAS CORRECTEMENT INSTALLE, VOUS • POUVEZ POTENTELLEMENT RENCONTRER DES PROBLEMES DE FREIN A l’aide du boulon M8 et de l’entretoise (articles 10 and 11), fixez l’échappement, voir photo • Page | 16 • Ajuster le repose pied et repose cheville pour davantage de confort. •...
