PAGE 1 OF 9
FITTING INSTRUCTIONS FOR RAP0009 REAR INDICATOR ADAPTORS
THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED OVER PAGE
SOME PARTS MAY BE SHOWN FOR CLARITY OF INSTRUCTIONS ONLY
DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT
IF IN ANY DOUBT WHEN FITTING OUR PRODUCTS, CONSULT ONE OF OUR DEALERS
OR HAVE FITTED BY A QUALIFIED TECHNICIAN.
PLEASE NOTE THAT THE WAY THE KIT IS PACKED DOES NOT NECESSARILY REPRESENT THE WAY OF
IN THE EVENT OF RUBBER WASHERS BEING USED TO HOLD COMPONENTS ONTO BOLTS
DIGITAL COPIES OF THESE INSTRUCTIONS ARE AVAILABLE FROM:
Unit 1, Shelleys Lane, East Worldham, Alton, Hampshire GU34 3AQ.
Tel: +44 (0)1420 89007 Fax +44 (0)1420 87301
KTM 1290 SUPERDUKE GT 2019-
PLEASE READ ALL INSTRUCTIONS BEFORE PROCEEDING
MOUNTING TO THE BIKE
THESE RUBBER WASHERS CAN BE THROWN AWAY
WWW.RG-RACING.COM

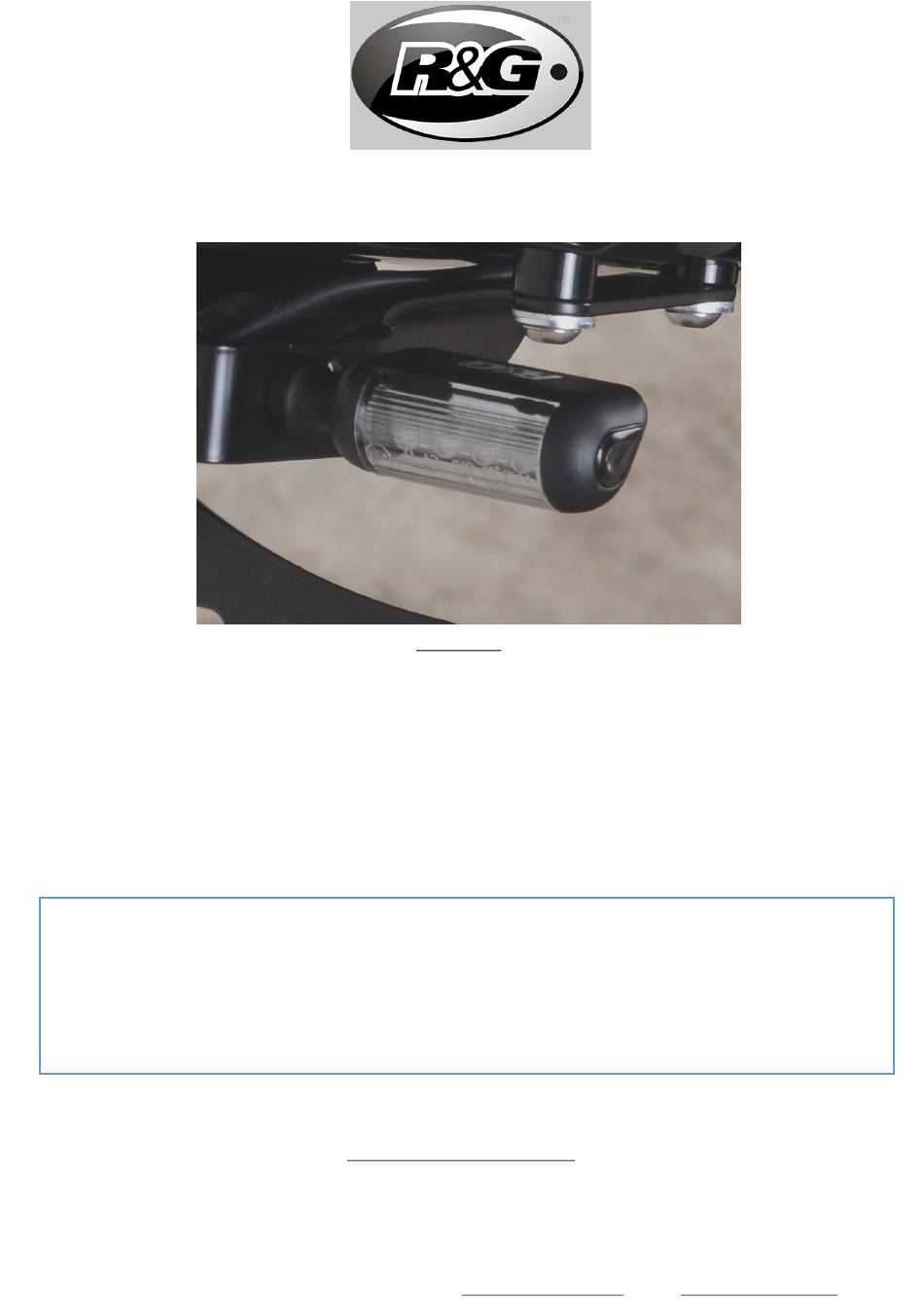

Picture A
.
R&G Racing
www.rg-racing.com
.
.
.
.
.
Email:
info@rg-racing.com
RAP0009
,
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for R&G RAP0009
Summary of Contents for R&G RAP0009
- Page 1 RAP0009 PAGE 1 OF 9 FITTING INSTRUCTIONS FOR RAP0009 REAR INDICATOR ADAPTORS KTM 1290 SUPERDUKE GT 2019- Picture A THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED OVER PAGE SOME PARTS MAY BE SHOWN FOR CLARITY OF INSTRUCTIONS ONLY DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT...
- Page 2 RAP0009 PAGE 2 OF 9 TOOLS REQUIRED GENERAL TORQUE SETTINGS • 13mm Spanner M4 BOLT = 8Nm • T15 Torx Tool M5 BOLT = • 10mm Socket and Wrench M6 BOLT = M8 BOLT = 20Nm 0 BOLT = 40Nm...
-
Page 3: Fitting Instructions
RAP0009 PAGE 3 OF 9 FITTING INSTRUCTIONS • Using the ignition key, remove the rear seat. • Disconnect the tail light connector as shown in picture 1. • As shown in picture 2, remove the 4x bolts securing the OEM license plate bracket using a 10mm socket and wrench, then gently withdraw the unit and wiring. - Page 4 RAP0009 PAGE 4 OF 9 NOTICE DE MONTAGE POUR RAP0009 ADAPTATEURS CLIGNOTANTS ARRIERE KTM 1290 SUPERDUKE GT 2019- Photo A E KIT CONTIENT LES ARTICLES EN PHOTO ET ETIQUETTES SUR LA PAGE LES PARTIES PRESENTÉES PEUVENT ETRE UNIQUEMENT REPRESENTATIVES POUR LA CLARTE DES INSTRUCTIONS E PAS ROCÉDER AU MONTAGE AVANT DE VOUS ÊTRES ASSURE QUE TOUTES LES PIECES SOIENT PRÉSENTES...
-
Page 5: Outils Requis
RAP0009 PAGE 5 OF 9 OUTILS REQUIS VALEURS DE SERRAGE • Clé à molette 13mm M4 BOULON = 8Nm • Cle Torx T15 M5 BOULON = • Clé à cliquet + douille 10mm M6 BOULON = M8 BOULON = 20Nm... -
Page 6: Notice De Montage
RAP0009 PAGE 6 OF 9 NOTICE DE MONTAGE • À l’aide de la clé de contact, retirez le siège arrière. • Débranchez le connecteur du feu arrière comme indiqué sur la photo 1. • Comme indiqué sur la photo 2, retirez les 4x boulons fixant le support de la plaque d'immatriculation d’origine à... - Page 7 RAP0009 PAGE 7 OF 9 MONTAGEANLEITUNG FÜR RAP0009 BLINKER-ADAPTER HINTEN KTM 1290 SUPERDUKE GT 2019- Abbldung A ALLE KIT-TEILE SIND UNTEN ABGEBILDET UND GEKENNZEICHNET IE ABGEBILDETEN EILE DIENEN LEDIGLICH ZUR RKLÄRUNG Ü BERPRÜFEN SIE DASS ALLE TEILE VORHANDEN SIND BEVOR SIE MIT DER...
-
Page 8: Sie Benötigen Folgendes Werkzeug
RAP0009 PAGE 8 OF 9 SIE BENÖTIGEN FOLGENDES WERKZEUG: ALLGEM. ANZUGSDREHMOMENT • 13mm Schraubenschlüssel M4 SCHRAUBE = 8Nm • T15 Torx-Schlüssel M5 SCHRAUBE = • 10mm Steckschlüssel M6 SCHRAUBE = M8 SCHRAUBE = 20Nm 0 SCHRAUBE = 40Nm M12 SCHRAUBE = 40Nm... - Page 9 RAP0009 PAGE 9 OF 9 MONTAGEANLEITUNG • Benutzen Sie den Zündschlüssel, um die hinteren Sitz zu entfernen. • Trennen Sie den Steckverbinder für die Kennzeichenbeleuchtung, die in Abbildung 1 abgebildet ist. • Wie in Abbildung 2 abgebildet, entfernen Sie die 4 Schrauben, die den original Kennzeichenhalter befestigen mit einem 10mm Steckschlüssel.
