FITTING INSTRUCTIONS FOR RAD9021 RADIATOR AND OIL COOLER GUARD
Page | 1
Please note that the way the kit is packed does not necessarily represent the way of mounting to the bike.
Please note that in cases where kits are packed with rubber washers holding the components onto the bolt – the
T
HE PARTS SHOWN MAY BE REPRESENTATIVE ONLY
Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301

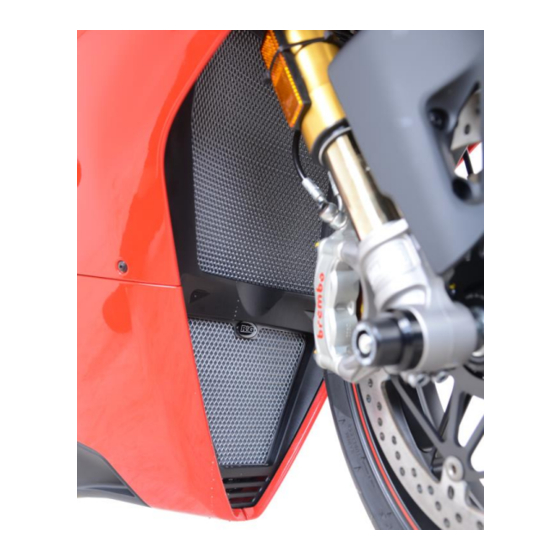

DUCATI PANIGALE V4, V4S, SPECIALE 2018-
THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW.
DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT.
rubber washers should be thrown away!
MAXIMUM TORQUE SETTINGS
Unit 1, Shelley's Lane, East Worldham, Alton, Hampshire, GU34 3AQ
(
FOR CLARITY OF INSTRUCTIONS ONLY
TOOLS REQUIRED
•
Set of metric Allen keys.
•
8mm spanner
•
Liquid lubricant.
•
M4 Bolt = 8 Nm
•
M5 Bolt = 12 Nm
•
M6 Bolt = 15 Nm
•
M8 Bolt = 20 Nm
R&G
www.rg-racing.com
).
Email:
info@rg-racing.com
