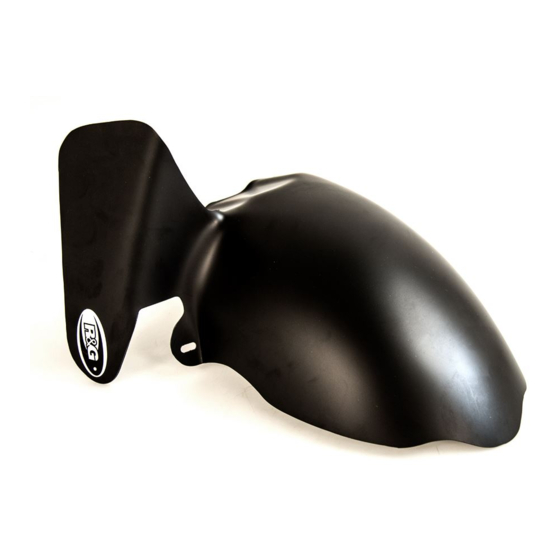

FITTING INSTRUCTIONS FOR RGH0001BK REAR WHEEL HUGGER

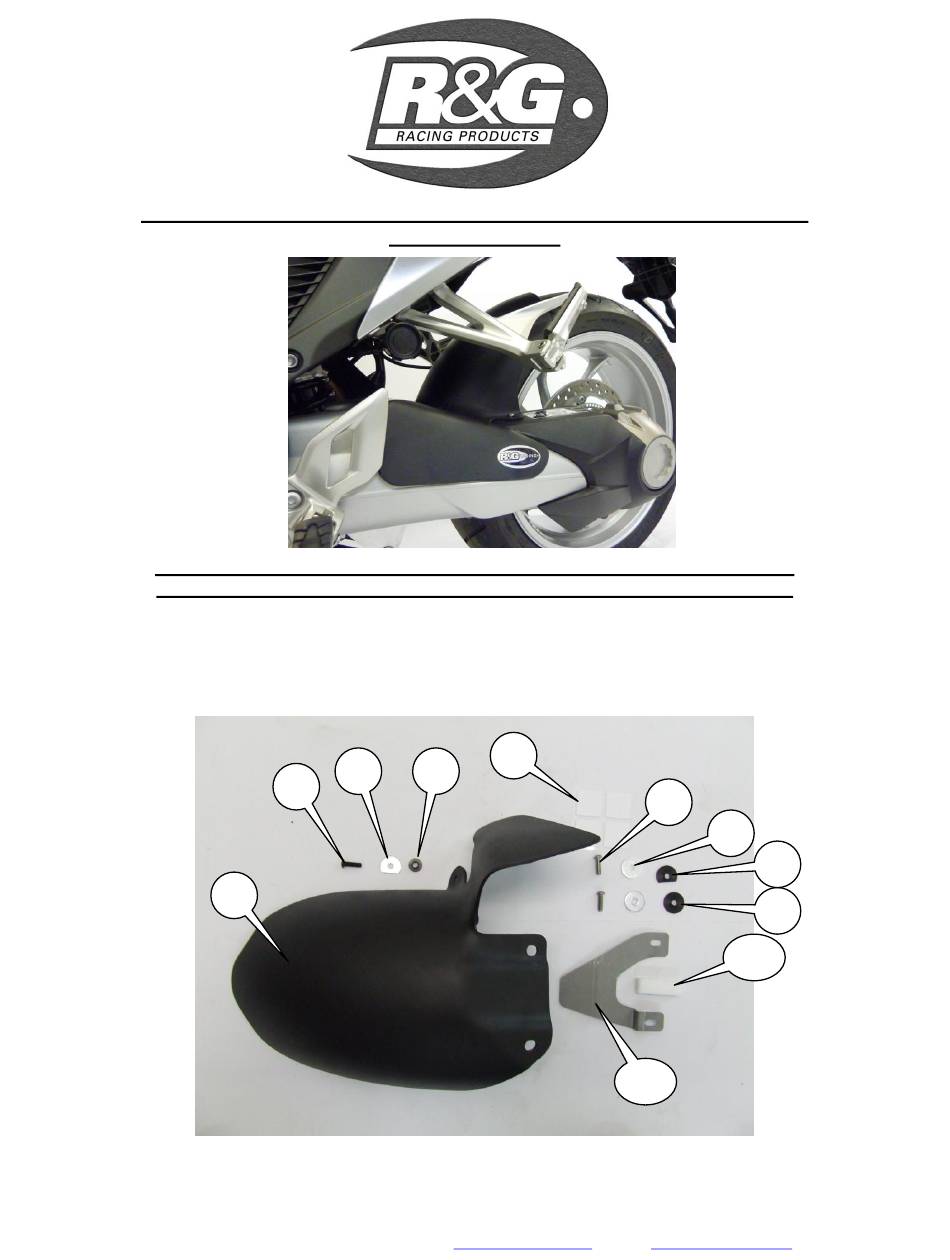

THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW.
DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT.
Please note that the way the kit is packed does not necessarily represent the way of
T
HE PARTS SHOWN MAY BE REPRESENTATIVE ONLY
1
Unit 1, Shelley's Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301
HONDA VFR 1200
mounting to the bike
3
4
6
R&G Racing
www.rg-racing.com
(
FOR CLARITY OF INSTRUCTIONS ONLY
5
6
11
Email:
info@rg-racing.com
)
7
8
9
10
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for R&G RGH0001BK
Summary of Contents for R&G RGH0001BK
- Page 1 FITTING INSTRUCTIONS FOR RGH0001BK REAR WHEEL HUGGER HONDA VFR 1200 THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW. DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT. Please note that the way the kit is packed does not necessarily represent the way of...
- Page 2 LEGEND ITEM 1 = HUGGER (HUG0001) (x1). ITEM 3 = M6 D-SHAPED WASHER (x1). ITEM 4 = BOOT GUARD SPACER (S0380) (x1). ITEM 5 = STICKY PADS (x5). ITEM 6 = M6x20mm LONG BUTTON HEAD BOLTS (x3). ITEM 7 = M6x25mm O/DIA WASHERS (x2). ITEM 8 = FLAT SIDED SPACER (S0385) (x1).
- Page 3 PICTURE 3 PICTURE 4 Remove the two plastic grommets from holes in position shown in picture 3. Remove original bolt from position shown in picture 4. Place spacer from kit (ITEM 4, S0380) into recess in position shown in picture 4. ...
- Page 4 Offer the anti vibration plate (ITEM 11, SMW0006) into position as shown in picture 7, place the two M6 washers (ITEMS 7) onto the two silver coloured button head bolts and clamp the assembly in place. Do not tighten at this stage. ...
- Page 5 FRANCE INSTRUCTIONS DE MONTAGE DU GARDE BOUE RGH0001BK HONDA VFR 1200 VERIFIER QUE TOUTES LES PIECES MONTREES SUR LES PHOTOS SONT BIEN PRESENTES DANS LE KIT. Le kit doit contenir également une entretoise blanche (non présentée sur les photos). ’...
- Page 6 Enlever les deux clips en plastique des trous (voir les positions sur la photo en dessus à gauche). Enlever la vis d’origine située sur la photo 4. Placer la rondelle du kit (article 4, S0380) dans le trou (photo 4). ...
