3259-X Flag Line Power Units - Chore-Time 75 Installation And Operators Instruction Manual

Flag System Drop Feeding

3259-X Flag Line Power Units

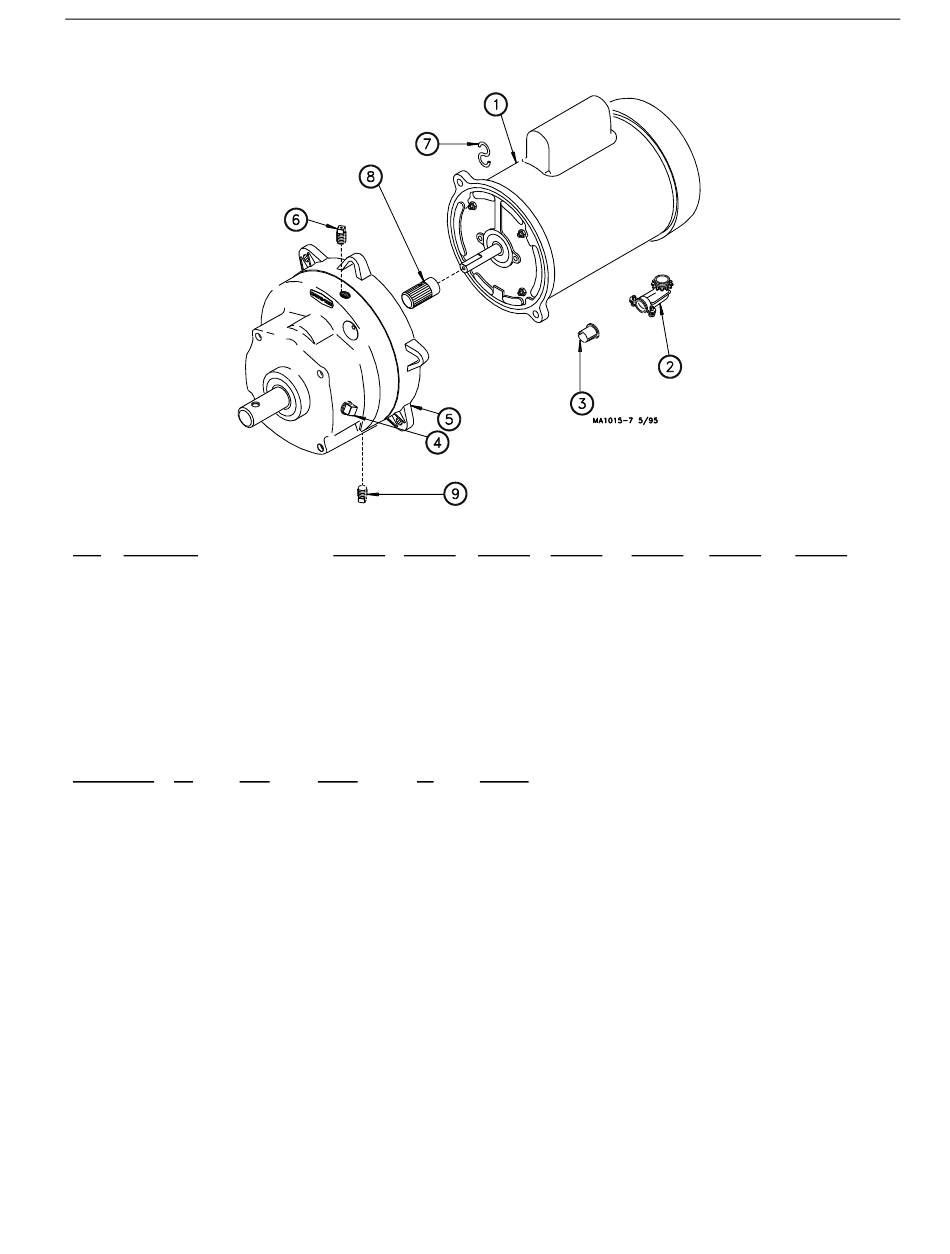

Item Description
1 Motor
2 90 Degree Connector
3 Anti-Short Bushing
4 Pipe Plug
5 Gearhead
6 Vent Plug
7 S Hook
8 Pinion Assembly
9 Magnetic Pipe Plug
Power Unit Assembly Part Numbers:
Part Number HP RPM
3259-34 1/3 HP 348 RPM
3259-39 1/2 HP 348 RPM
3259-78 3/4 HP 425 RPM
3259-79 1 HP 425 RPM
3259-80 1-1/2 HP 425 RPM
3259-98 1/2 HP 348 RPM
3259-100 1/2 HP 348 RPM
MA1015G
3259-34 3259-39 3259-98
Part No. Part No. Part No.
4229 5703
4228 4228
6304 6304
2755 2755
3261-5 3261-5
3523 3523
2805 2805
5046 5046
30160 30160
Phase Hz Voltage
Single Phase 60 Hz
Single Phase 60 Hz
Single Phase 60 Hz
Single Phase 60 Hz
Single Phase 60 Hz
Single Phase 50 Hz
Three Phase 50 Hz
3259-100 3259-78
Part No. Part No.
5977 28031 5051
4228 4228 ----
6304 6304 ----
2755 2755 2755
3261-11 3261-11 3261-10
3523 3523 3523
2805 2805 2805
5046 5046 5046
30160 30160 30160
230
230
230
230
230
220
220/380-415
Parts Listing
3259-79 3259-80
Part No. Part No.
6857 8782
---- ----
---- ----
2755 2755
3261-10 3261-10
3523 3523
2805 2805
5046 5046
30160 30160
31
