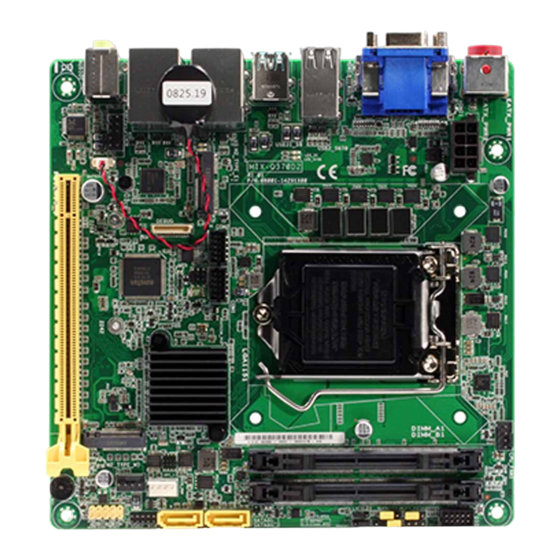

Aaeon MIX-Q370D2 Manual

Industrial motherboard
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MIX-Q370D2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MIX-Q370D2 and is the answer not in the manual?

Questions and answers

Related Manuals for Aaeon MIX-Q370D2

Summary of Contents for Aaeon MIX-Q370D2

  • Page 1 MIX-Q370D2...
  • Page 2 E16751 First Edition June 2020 Copyright Notice This document is copyrighted, 2020. All rights are reserved. The original manufacturer reserves the right to make improvements to the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of the original manufacturer.

  • Page 3: Table Of Contents

    Contents Chapter 1 Product overview Package contents................. 1-1 Features ..................1-1 Specifications ................1-2 Chapter 2 Motherboard information Before you proceed ..............2-1 Motherboard layout ..............2-2 Screw size ..................2-4 2.3.1 Component side .............. 2-4 2.3.2 Solder side ..............2-5 Central Processing Unit (CPU) ...........
  • Page 4 Chipset menu ................3-8 3.4.1 System Agent (SA) Configuration ........3-8 3.4.2 PCH-IO Configuration ............. 3-9 Security menu ................3-9 3.5.1 Administrator Password ..........3-9 3.5.2 User Password ..............3-9 Boot menu .................. 3-10 3.6.1 Boot Configuration ............3-10 3.6.2 FIXED BOOT ORDER Priorities ........3-10 Save &...

  • Page 5: Chapter 1 Product Overview

    Chapter 1 Product overview Package contents Check your industrial motherboard package for the following items. 1 x Industrial Motherboard 1 x SATA 6.0Gb/s cable 1 x SATA power cable 1 x I/O Shield 1 x Support DVD If any of the above items is damaged or missing, contact your distributor or sales representative immediately.

  • Page 6: Specifications

    12V/16A DC-IN Operating temperature F~140 F (0 C~60 Operating humidity 0%~90% relative humidity, non-condensing Certificate CE & FCC Form factor Mini ITX Form Factor: 6.7”x 6.7” (170mm x 170mm) Weight 1.1 lb (0.5 Kg) (continued on the next page) MIX-Q370D2...
  • Page 7 Storage 2 x SATA 6.0Gb/s ports 1 x M.2 slot (M-key), 2242/2280 (SATA & NVMe) 6 x USB 3.2 Gen2 ports (6 ports in Rear I/O) 6 x USB 2.0 ports (4 ports in Rear I/O; 2 internal headers) Display 2 x HDMI +1 x VGA + 1 x eDP Serial port 1 x RS-232/422/485 supports 5V/12V/RI option (Internal)
  • Page 8 Others OS support Windows 10 64-bit ® Ubuntu 18.04.1/Kernel 4.15/64 bits Accessories 1 x SATA cable 1 x SATA power cable 1 x I/O shield 1 x Support DVD NOTE: Specifications are subject to change without notice. MIX-Q370D2...

  • Page 9: Chapter 2 Motherboard Information

    Chapter 2 Motherboard information Before you proceed Take note of the following precautions before you install motherboard components or change any motherboard settings. CAUTION! • Unplug the power cord from the wall socket before touching any component. • Before handling components, use a grounded wrist strap or touch a safely grounded object or a metal object, such as the power supply case, to avoid damaging them due to static electricity.

  • Page 10: Motherboard Layout

    HDMI1 HDMI2 LGA1151 Place this side USB2_5678 towards the rear of the chassis USB31_56 COM2 COM1 219V LAN1_USB31_12 Intel ® 128Mb BIOS M2_TYPE_E1 Q370 COM1_V1 SPI_1 LAN2_USB31_34 211AT Super 128Mb BIOS 2280 AUDIO1 AAFP BATTERY_H 2242 PCIEX16_1 19 18 MIX-Q370D2...
  • Page 11 Connectors/Jumpers/Slots Page 12VDC connector (8-pin EATX_PWR2) 2-18 Intel LGA1151 CPU socket ® CPU and Chassis Fan headers (4-pin CPU_FAN1, 4-pin CHA_FAN1) 2-18 DDR4 DIMM slots 2-11 Digital I/O connector (10-pin DIO) 2-19 AT/ATX mode selection (3-pin ATX_AT) 2-14 2-13 ® Intel ME Jumper (3-pin DIS_ME) Chassis intrusion jumper (4-1 pin CHASSIS)

  • Page 12: Screw Size

    Screw size 2.3.1 Component side 168.40 168.40 166.97 167.62 165.35 165.35 164.97 164.36 164.36 156.97 156.97 154.69 145.54 153.54 145.54 133.22 136.09 118.36 92.71 77.92 64.58 55.09 45.45 38.56 18.74 21.54 11.84 11.20 10.49 10.49 7.15 0.00 33.40 MIX-Q370D2...

  • Page 13: Solder Side

    2.3.2 Solder side 165.10 165.10 134.98 130.21 130.21 110.71 101.74 96.49 92.71 74.71 58.49 55.21 55.21 45.09 33.02 10.16 0.00 Chapter 2: Motherboard information...

  • Page 14: Central Processing Unit (Cpu)

    Return Merchandise Authorization (RMA) requests only if the motherboard comes with the cap on the LGA1151 socket. • The product warranty does not cover damage to the socket contacts resulting from incorrect CPU installation/removal, or misplacement/loss/ incorrect removal of the PnP cap. MIX-Q370D2...

  • Page 15: Installing The Cpu

    2.4.1 Installing the CPU CAUTION! Ensure that you install the correct CPU designed for LGA1151 only. DO NOT install a CPU designed for LGA1155 and LGA1156 sockets on the LGA1151 socket. Chapter 2: Motherboard information...
  • Page 16 MIX-Q370D2...

  • Page 17: Cpu Heatsink And Fan Assembly Installation

    2.4.2 CPU heatsink and fan assembly installation CAUTION! Apply the Thermal Interface Material to the CPU heatsink and CPU before you install the heatsink and fan if necessary. To install the CPU heatsink and fan assembly Chapter 2: Motherboard information...
  • Page 18 To uninstall the CPU heatsink and fan assembly MIX-Q370D2 2-10...

  • Page 19: System Memory

    System memory This motherboard comes with two Double Data Rate 4 (DDR4) Small Outline Dual Inline Memory Modules (SO-DIMM) sockets. The figure illustrates the location of the DDR4 DIMM sockets: NOTE: Use the DIMM_A1 slot when inserting only one SO-DIMM. Installing a DIMM To install a DIMM DIMM_A1*...

  • Page 20: Jumpers

    You do not need to clear the RTC when the system hangs due to overclocking. For system failure due to overclocking, use the CPU Parameter Recall (C.P.R) feature. Shut down and reboot the system so the BIOS can automatically reset parameter settings to default values. MIX-Q370D2 2-12...
  • Page 21 COM1 Ring/+5V/+12V selection jumper (6-pin COM1_V1) COM1_V1 +12V Ring (Default) Setting Pins +12V Ring (Default) Intel ME Jumper (3-pin DIS_ME) ® This jumper allows you to force the Intel Management Engine (ME) to boot ® from recovery mode when ME becomes corrupted. DIS_ME ME Enable ME Disable...
  • Page 22 Move the jumper cap to pins 1-2 when you intend to use the chassis intrusion detection feature. CHASSIS Chassis Intruder -Unused Chassis Intruder - Unused Chassis Intruder - Used PIN1 Pins Enables the chassis intrusion detection feature Disables the chassis intrusion detection feature (Default) MIX-Q370D2 2-14...
  • Page 23 eDP voltage selection (3-pin LJ1) (Default) Setting Pins +3.3V (Default) Panel backlight selection (3-pin J2) +12V (Default) Setting Pins 5V (Default) Chapter 2: Motherboard information 2-15...

  • Page 24: Connectors

    1 Gbps connection LAN port (Blinking) Orange Ready to wake (Blinking up from S5 then steady) mode Line Out port (lime). This port connects to a headphone or a speaker. Microphone port (pink). This port connects to a microphone. MIX-Q370D2 2-16...
  • Page 25 USB 3.2 Gen 2 ports. These 9-pin Universal Serial Bus (USB) ports connect to USB 3.2 Gen 2 devices. NOTES: • USB 3.2 Gen 2 devices can only be used for data storage. • Due to the design of the Intel 300 series chipset, all USB devices ®...

  • Page 26: Internal Connectors

    SENSE CAUTION: Do not forget to connect the fan cables to the fan connectors. Insufficient air flow inside the system may damage the motherboard components. These are not jumpers! Do not place jumper caps on the fan connectors! MIX-Q370D2 2-18...
  • Page 27 Digital I/O header (10-pin DIO) This header includes 8 I/O lines (In/Out programmable). All of the Digital I/O lines are programmable and each I/O pin can be individually programmed to support various devices. PIN 1 NOTE: To configure the I/O pins in BIOS, go to the Advanced tab > Digital IO Port Configuration.
  • Page 28 These connectors connect to Serial ATA 6.0 Gb/s hard disk drives via Serial ATA 6.0 Gb/s signal cables. SATA6G_1 RSATA_RXP RSATA_RXN SATA6G_2 RSATA_TXN RSATA_TXP IMPORTANT: When using hot-plug and NCQ, set the SATA Mode Selection item in the BIOS to [AHCI]. See section 3.3.3 SATA Configuration for details. MIX-Q370D2 2-20...
  • Page 29 USB 2.0 connectors (10-pin USB910) These USB connectors comply with USB 2.0 specifications. USB2_910 S_USB_PN10 S_USB_PP9 S_USB_PP10 S_USB_PN9 PIN 1 Never connect a 1394 cable to the USB connector. Doing so will damage the motherboard. M.2 E-Key and M-Key slots These slots allow you to install M.2 (NGFF) modules.
  • Page 30 This 2-pin header is for the chassis-mounted reset button for system reboot without turning off the system power. 10. BIOS programmable header (8-pin SPI_1) Use this header to flash the BIOS ROM. SPI_1 PIN 1 +3V_SPI S_SPI_CS0#Q S_SPI_CLK_1Q S_SPI_MISO_1Q S_SPI_MOSI_1Q (NC) MIX-Q370D2 2-22...
  • Page 31 11. Battery connector (2-pin BATTERY_H) This connector is for the lithium CMOS battery. BATTERY_H PIN 1 +BAT 12. Front Panel Audio header (10-1 pin AAFP) This header is for a chassis-mounted front panel audio I/O module that supports HD Audio audio standard. Connect one end of the front panel audio I/O module cable to this header.
  • Page 32 These headers are for serial (COM) ports. Connect the serial port module cable to the header, then install the module to a slot opening at the back of the system chassis. COM2 COM1 PIN 1 PIN 1 NOTE: The COM module is purchased separately. MIX-Q370D2 2-24...

  • Page 33: Chapter 3 Bios Setup

    Chapter 3 BIOS setup BIOS setup Use the BIOS Setup to update the BIOS or configure settings. The BIOS screens include navigation keys and help to guide you in using the BIOS Setup program. Entering BIOS Setup at startup To enter BIOS Setup at startup: Press <Delete>...

  • Page 34: Main Menu

    Allows you to enable or disable case open warning function. Configuration options: [Disabled] [Enabled] [Clear] 3.3.1 CPU Configuration The items in this menu show CPU-related information the BIOS automatically detects. The items shown in the submenu may be different depending on the type of CPU installed. MIX-Q370D2...

  • Page 35: Trusted Computing

    Intel (VMX) Virtualization Technology [Enabled] [Enabled] Allows a hardware platform to run multiple operating systems separately and simultaneously, enabling one system to virtually function as several systems. [Disabled] Disables this function. 3.3.2 Trusted Computing Security Device Support [Enable] Allows you to enable or disable BIOS support for security devices. Configuration options: [Disable] [Enable] Pending operation [None] Allows you to schedule an operation for security devices.

  • Page 36: Sata Configuration

    Configuration options: [Enabled] [Disabled] The following sub-items appear only when you set CPU Smart Fan Control or CHA_FAN1 Smart Fan Control to [Enabled]. Fan Control Mode [Smart Fan IV Mode] Configuration options: [Manual Mode] [Thermal Cruise Mode] [Smart Fan IV Mode] MIX-Q370D2...
  • Page 37 The following items appear only when you set Fan Control Mode to [Smart Fan IV Mode]. Temperature 1 [40] / Temperature 2 [50] / Temperature 3 [60] / Temperature 4 [70] Sets the temperature value for the Smart Fan IV mode. Fan PWM 1 [150] / Fan PWM 2 [170] / Fan PWM 3 [200] / Fan PWM 4 [220] Sets the Fan PWM value for the Smart Fan IV mode.

  • Page 38: Sio Configuration

    [Use Automatic Settings] [IO=3F8h; IRQ=4;] [IO=3E8h; IRQ=7] Mode [RS232] Allows you to select the Serial Port mode. Configuration options: [RS232] [RS422] [RS485] [*Active*] Serial Port 2 Use this device [Enabled] Allows you to enable or disable this logical device. Configuration options: [Enabled] [Disabled] MIX-Q370D2...

  • Page 39: Amt Configuration

    The following two items appear only when you set Use this device to [Enabled]. Possible [Use Automatic Settings] Allows you to select an optimal setting for Super I/O devices. Configuration options: [Use Automatic Settings] [IO=3E8h; IRQ=7;] [IO=3F8h; IRQ=4] 3.3.7 AMT Configuration AMT BIOS Features [Enabled] When disabled, you are not able to access the MEBx setup.

  • Page 40: Digital Io Port Configuration

    VGA mode is supported only on primary display. Configuration options: [VBIOS Default] [eDP] [VGA] [HDMI1] [HDMI2] PCIEX16 Gen Speed [Auto] Allows you to select the PCI Express port speed. Configuration options: [Auto] [Gen1] [Gen2] [Gen 3] MIX-Q370D2...

  • Page 41: Pch-Io Configuration

    3.4.2 PCH-IO Configuration HD Audio [Enabled] This item controls the detection of HD Audio devices. Configuration options: [Disabled] [Enabled] Security menu The Security menu items allow you to change the system security settings. 3.5.1 Administrator Password If you have set an administrator password, we recommend that you enter the administrator password for accessing the system.

  • Page 42: Boot Menu

    USB Key] [UEFI Hard Disk] [UEFI USB Hard Disk] [UEFI Network] [UEFI USB Lan] [UEFI CD/DVD] [UEFI USB CD/DVD] [UEFI USB Floppy] [USB Key] [Hard Disk] [USB Hard Disk] [Network] [USB Lan] [CD/DVD] [USB CD/DVD] [USB Floppy] [Disabled] MIX-Q370D2 3-10...

  • Page 43: Save & Exit Menu

    Save & Exit menu Save Changes and Reset Once you are finished making your selections, choose this option from the Save & Exit menu to ensure the values you selected are saved. When you select this option, a confirmation window appears. Select Yes to save changes and reset. Discard Changes and Exit This option allows you to exit the Setup program without saving your changes.
  • Page 44 MIX-Q370D2 3-12...

  • Page 45: Appendix

    Check local regulations for disposal of electronic products. DO NOT throw the mercury-containing button cell battery in municipal waste. This symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste. MIX-Q370D2...
  • Page 46 ○ ○ ○ ○ 外部信號連接頭 × ○ ○ ○ ○ ○ 及線材 中央處理器與內 × ○ ○ ○ ○ ○ 存 本表格依據 SJ/T 11364 的規定編制。 ○： 表示該有害物質在該部件所有均質材料中的含量均在 GB/T 26572 規 定的限量要求以下。 ×： 表示該有害物質至少在該部件的某一均質材料中的含量超出 GB/T 26572 規定的限量要求，然該部件仍符合歐盟指令 2011/65/EU 的 規范。 備註：此產品所標示之環保使用期限，係指在一般正常使用狀況下。 MIX-Q370D2...
