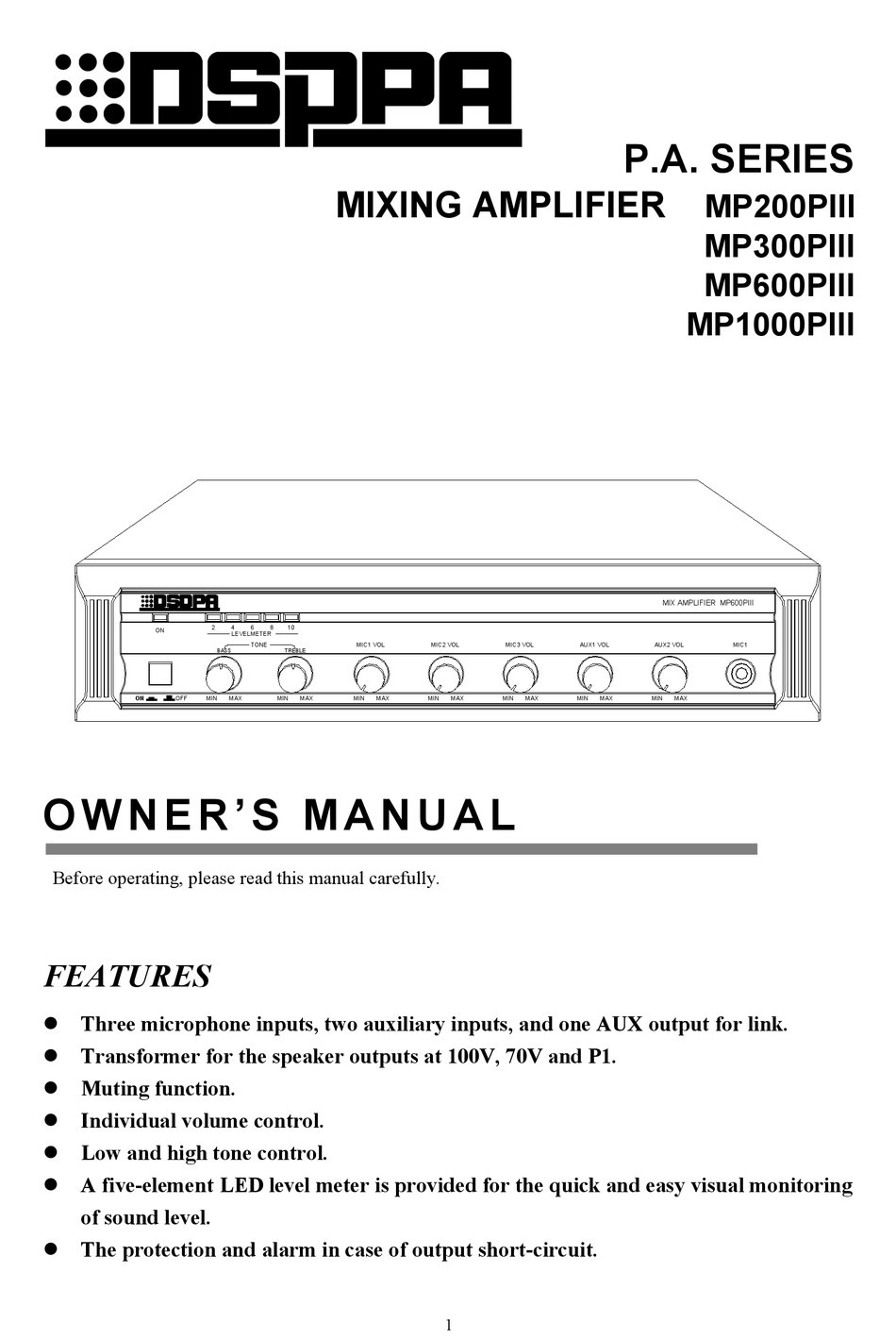

O W N E R ' S M A N U A L
Before operating, please read this manual carefully.
FEATURES
Three microphone inputs, two auxiliary inputs, and one AUX output for link.
Transformer for the speaker outputs at 100V, 70V and P1.
Muting function.
Individual volume control.
Low and high tone control.
A five-element LED level meter is provided for the quick and easy visual monitoring
of sound level.
The protection and alarm in case of output short-circuit.

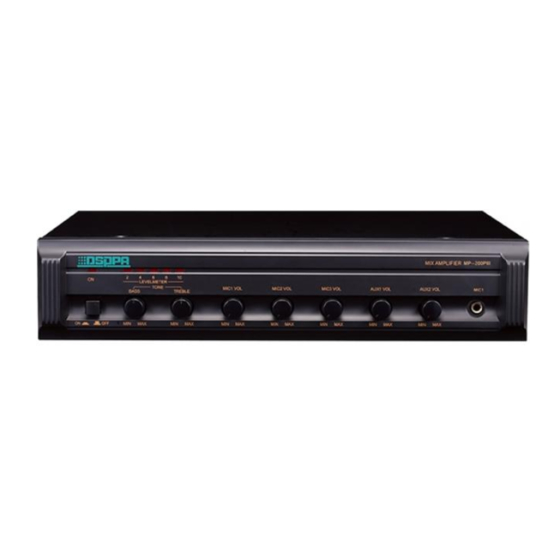

MIXING AMPLIFIER
2
4
6
8
10
LEVELMETER
TONE
MIC1 VOL
BASS
TREBLE
MAX
MIN
MAX
MIN
MAX
MIC2 VOL
MIC3 VOL
AUX1 VOL
MIN
MAX
MIN
MAX
MIN
1
P.A. SERIES
MP200PIII
MP300PIII
MP600PIII
MP1000PIII
MIX AMPLIFIER MP600PIII
AUX2 VOL
MIC1
MAX
MIN
MAX
Advertisement
Table of Contents
Related Manuals for DSPPA P.A. Series
Summary of Contents for DSPPA P.A. Series
- Page 1 P.A. SERIES MIXING AMPLIFIER MP200PIII MP300PIII MP600PIII MP1000PIII MIX AMPLIFIER MP600PIII LEVELMETER TONE MIC1 VOL MIC2 VOL MIC3 VOL AUX1 VOL AUX2 VOL MIC1 BASS TREBLE O W N E R ’ S M A N U A L Before operating, please read this manual carefully.
- Page 2 This page is left blank for the user’s notes.
- Page 3 In such a case, adjust each volume controlling button, until LED element 4 (+8dB) and LED element 5(+10dB) shall flash. REAR PANEL FUSE TYPE/ 保险丝规格 广州市迪士普音响科技有限公司 DSPPA MP200P MP300P 100V Guangzhou DSPPA Audio Co.,Ltd. F2AL250V F4AL250V MIC2 MIC3 AUX1 AUX2 MUTE Nur Sicherung 250V...
- Page 4 Connections AMP. DECK TUNER 100V AUX OUT AUX2 AUX1 MIC3 MIC2 MIX AMPLIFIER MP600PIII LEVELMETER TONE MIC1 VOL MIC2 VOL MIC3 VOL AUX1 VOL AUX2 VOL MIC1 BASS TREBLE Priority MIC or Chairman’s MIC MUTING FUNCTION This model provides muting function. The inputs from Mic2, Mic3, Aux 1 and Aux 2 are automatically muted by the input from Mic1, as the signal from Mic1 overrides other input signals.
- Page 5 PRECAUTION OF INSTALLATIOM 1. Do not block ventilation holes. 2. Do not use this unit if the electrical power cord is frayed or broken. 3. The amplifier should not be placed in any of the areas: 1) with poor ventilation; 2) with high humidity or heavy dust;...
- Page 6 The unit connect to the mains by the plug. Pull out the plug when the unit is in fault or danger ● status. So the socket for the unit plugging must be set in the place can be easy to plug into and pull out the plug. Guangzhou DSPPA Audio Co., Ltd.
