POWER
User's Manual
Thank you for using DSPPA Public Address System. For better use of the product, please read this manual
carefully before use.
Pre Amplifier
PROFESSIONAL PERIPHERAL DEVICE
+
+
+
+
+
+
+
+
+
+
MIC1 MIC2 MIC3 MIC4 MIC5 AUX1 AUX2 AUX3 AUX4 AUX5
Public Address System
+12dB
+8dB
+6dB
+2dB
0dB
-2dB
-6dB
-18dB
-40dB
Guangzhou DSPPA Audio Co., Ltd.
PC1011PII

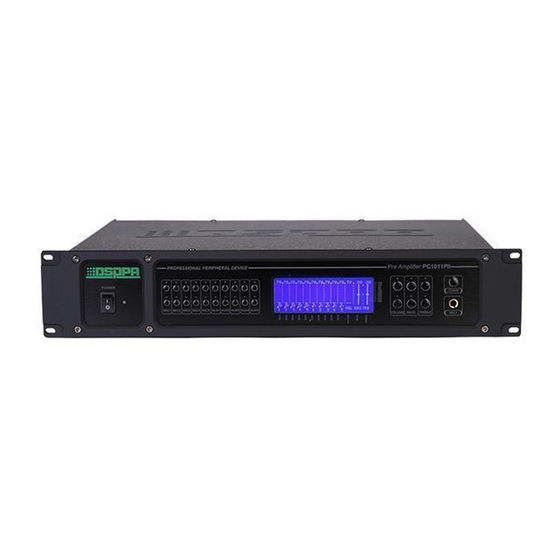

Pre Amplifier PC1011PII
+
+
+
CHIME
VOLUME
BASS
TREBLE
http: //www.DSPPA.com
Advertisement
Table of Contents
Related Manuals for DSPPA PC1011PII
Summary of Contents for DSPPA PC1011PII
- Page 1 MIC1 MIC2 MIC3 MIC4 MIC5 AUX1 AUX2 AUX3 AUX4 AUX5 VOLUME BASS TREBLE User’s Manual Thank you for using DSPPA Public Address System. For better use of the product, please read this manual carefully before use. Guangzhou DSPPA Audio Co., Ltd. http: //www.DSPPA.com...
-
Page 2: Table Of Contents
* Fire-fighting/public addressing system Series PC10 Contents A. Characteristics of product ..................3 B. Introduction to appearance function ..............3 (A) Front panel ...................... 3 (B) Rear panel ......................6 C. Operation Instructions ................... 7 (A) Selection of Power Supply Mode ..............7 (B) Address setting .................... -
Page 3: Characteristics Of Product
Function of address setting, by which a set of system is able to connect up to 16 local machines in a parallel manner. Three voltage operation modes including AC110V/AC220V/DC24V. B. Introduction to appearance function (A) Front panel Pre Amplifier PC1011PII PROFESSIONAL PERIPHERAL DEVICE +12dB +8dB +6dB +2dB... - Page 4 * Fire-fighting/public addressing system Series PC10 volume, the scale cursor moves downward. 4. AUX1-AUX5 volume control button Buttons AUX1 through AUX5 are used to regulate the volumes of the five auxiliary inputs respectively. Button ‘+’ is used to increase the volume, and the button ‘-’ is used to decrease the volume, with the amplitude displayed on the display screen in a real-time manner: Display of numeral: The maximum volume is “79”, and the minimum volume is “00”.
- Page 5 * Fire-fighting/public addressing system Series PC10 in bass tune, the scale cursor moves downward. Attention: If it is not necessary to increase or attenuate the bass tune, please turn the bass tune to the position of scale “0”. 8. Treble control button Button TREBLE is used to increase or attenuate the tune of the treble.
-
Page 6: (B) Rear Panel
+24VDC 广州市迪士普音响科技有限公司 +24VDC GND. MODEL: 公共广播系统控制器 Guangzhou DSPPA Audio Co.,Ltd. 1. Remote-control input port The remote-control input port connected to the previous equipment. Reverse Input 2. Remote-control output port The remote-control input port connected to the next equipment. 3. Bell tune control knob To regulate the output volume of the bell tune by turning clockwise to increase the volume, and turning counterclockwise to decrease the volume. -
Page 7: Operation Instructions
PC-series PC-series PC-series PC-series Panel Chime OUTPUT AUX3 AUX2 AUX1 EMC2 EMC1 MIC2 Pre Amplifier PC1011PII PROFESSIONAL PERIPHERAL DEVICE +12dB +8dB +6dB +2dB CHIME -2dB -6dB POWER -18dB -40dB MIC1 MIC2 MIC3 MIC4 MIC5 AUX1 AUX2 AUX3 AUX4 AUX5 VOLUME... -
Page 8: (B) Address Setting
The address of the equipment makes use of 4 binary codes “0” and “1” for setting. By means of the address setting, it is possible to connect 16 PC1011PII equipments in a set of system in a parallel manner. The setting method is described as follows. -
Page 9: (C) Remote-Control Operation
Afterwards, connect the other equipments one by one in series. All the network cables are connected by the method for T-568A ~ T-568A network cable. The connecting method is as shown in the following figure. PC1011PII Peripheral equipment Peripheral equipment... -
Page 10: Packing List
Series PC10 D. Packing list One PC1011PII (Preamplifier) equipment, one operation instruction, one warranty card, one certificate, one 568A-568A cable, one SY542 audio cable, two (2) audio conversion plugs, one power cable, M5*18 cup-head stainless steel screws, black gaskets, one 24V strand wire with plugs at both ends. -
Page 11: Operation Instructions
MAIN AMP’S INPUT Main’s AMP.-2 PC SERIES MAIN AMP’S INPUT AUDIO IN AUDIO IN—CH1 —CH2 Alarm signal Other signal PC1010P PC1016E PC1010R MIC1 PC1015E PC1011PII EMC1 EMC2 AUX4 AUX1 AUX2 AUX3 DC 24V AC 220V Power PC1006D PC1007C PC1008R PC1017PII... -
Page 12: Attachment
When the “Power switch” is off, please pull out the power cord from the socket. Please keep the equipment out of water. ● To reduce the risk of electric shock, do not remove the cover. ● No user parts inside. Refer servicing to qualified service personnel. Guangzhou DSPPA Audio Co., Ltd.
