PAVA9500 8-Zone Amplifier Host with Main/Backup Switching
PAVA9500E 8-Zone Expansion Amplifier with Main/Backup Switching
8-Zone Amplifier Host with Main/Backup Switching
Description
EN54-16 fire emergency broadcasting system provides manual operation and timing programming, and gives
priority to the former over the latter; supports real-time monitoring of equipment operating status and
recording of operating logs. It meets the relevant standard of "EN54-16 Voice Alarm Control and Indicating
Equipment". The broadcasting system can be used for fire emergency broadcasting, daily service
broadcasting and background broadcasting; this system is positioned as a small emergency broadcasting
system, mainly used in small shopping malls, small office buildings and exhibition halls, etc.

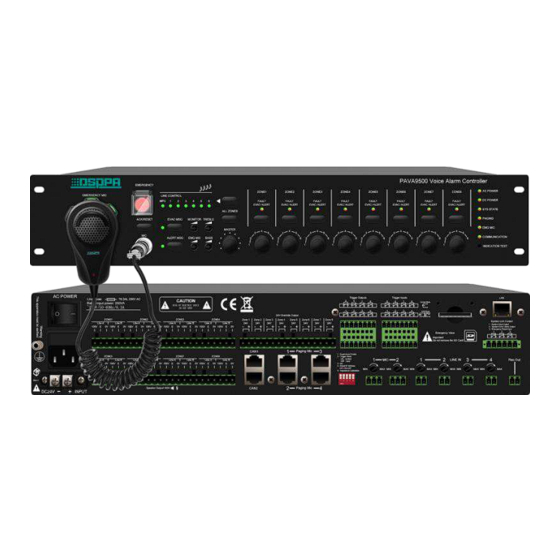

PAVA9500 is an 8-zone amplifier host with main/backup switching function in the EN54-16 system, and is
designed to be 2U high, with timed audio sources, 2 microphone inputs, 4 analog inputs, 1 line output and a
fire emergency broadcast panel; supports the total power of up to 500W; holds 8 zone outputs, with the
total power of 500W for all zones.
PAVA9500E is an 8-zone expansion amplifier with main/backup switching function in the EN54-16 system,
and is designed to be 2U high, with 2 microphone inputs, 4 analog inputs and 1 line output; supports the
total power of up to 500W; holds 8 zone outputs, with the total power of 500W for all zones.
Features
Host Features
Designed with a standard 2U chassis, made of high-end oxidized blackened aluminum alloy with a
frosted panel, revealing a premium look and high-class quality.
With one-button alarm and two editable alarm voices, with EMC MIC for on-site guidance in case of
emergency.
With EVAC voice message and Chimes management, allowing for a maximum of 10 customized
export@dsppa.com
/
www.dsppatech.com
PAVA9500
PAVA9500E
8-Zone Expansion Amplifier with Main/Backup Switching
The specifications will be subject to change without prior notice.
Copyright © Guangzhou DSPPA Audio Co., Ltd. All rights reserved.
Advertisement
Related Manuals for DSPPA PAVA9500
Summary of Contents for DSPPA PAVA9500
- Page 1 PAVA9500 is an 8-zone amplifier host with main/backup switching function in the EN54-16 system, and is designed to be 2U high, with timed audio sources, 2 microphone inputs, 4 analog inputs, 1 line output and a fire emergency broadcast panel;...
- Page 2 Broadcasting > Recording and Broadcasting Function of Handheld MIC on Host Panel > Local BGM Player = 1-6 External Inputs. export@dsppa.com www.dsppatech.com The specifications will be subject to change without prior notice. Copyright © Guangzhou DSPPA Audio Co., Ltd. All rights reserved.
- Page 3 Designed with a standard 2U chassis, made of high-end oxidized blackened aluminum alloy with a frosted panel, revealing a premium look and high-class quality. Work with the amplifier host PAVA9500, and can be combined with the expansion amplifier PAVA9425E for emergency broadcasting and background music broadcasting.
-
Page 4: Specifications
Note: Specifications are subject to change without notice. Front / Rear Panel Front Panel PAVA9500 (8-Zone Amplifier Host with Main/Backup Switching Function) export@dsppa.com www.dsppatech.com The specifications will be subject to change without prior notice. Copyright © Guangzhou DSPPA Audio Co., Ltd. All rights reserved. - Page 5 If triggered by EVAC/ALERT, it will continue to broadcast the alarm voice. 8—Green PLAY Button export@dsppa.com www.dsppatech.com The specifications will be subject to change without prior notice. Copyright © Guangzhou DSPPA Audio Co., Ltd. All rights reserved.
- Page 6 When the Long Press ALL SET indicator light of the machine is currently on, short press or long press this button for 1 export@dsppa.com www.dsppatech.com The specifications will be subject to change without prior notice. Copyright © Guangzhou DSPPA Audio Co., Ltd. All rights reserved.
-
Page 7: Rear Panel
Green - Indicates that the current device is connected normally. Off - Indicates that the current expansion host is not logically or physically connected to the host PAVA9500. a. Host: It is not connected to the software PAVA9000 and connected to the expansion host normally. - Page 8 “3” for none. “4” - indicates default value resetting of the host IP. IP address: 192.168.5.192; port number: 10086. export@dsppa.com www.dsppatech.com The specifications will be subject to change without prior notice. Copyright © Guangzhou DSPPA Audio Co., Ltd. All rights reserved.
- Page 9 4th digit mentioned in the item “7” and then dialing up it again. 3) The host PAVA9500 can be directly connected to the PC via this port and automatically identify TIE/EIA-568B and TIE/EIA-568A standards. In order to unify the interface, it is recommended to use the TIE/EIA-568B standard connection method.
- Page 10 When the current device is working in fire alarm mode, the interface can be used to reset and switch to normal mode. When the current device is working in normal mode, no operation is required. export@dsppa.com www.dsppatech.com The specifications will be subject to change without prior notice. Copyright © Guangzhou DSPPA Audio Co., Ltd. All rights reserved.
