User's Manual
Welcome to use DSPPA public address system. For the better use of this product, please read this instruction carefully
prior to use.
Public Address System
2 4 6 8 10
LEVELMETER
MIC1 VOL
BASS
TREBLE
TONE
MIN
MAX
MIN
MAX
MIN
MIC2 VOL
MIC3 VOL
MAX
MIN
MAX
MIN
MAX
MP200PIII
MP300PIII
MP600PIII
MP1000PIII

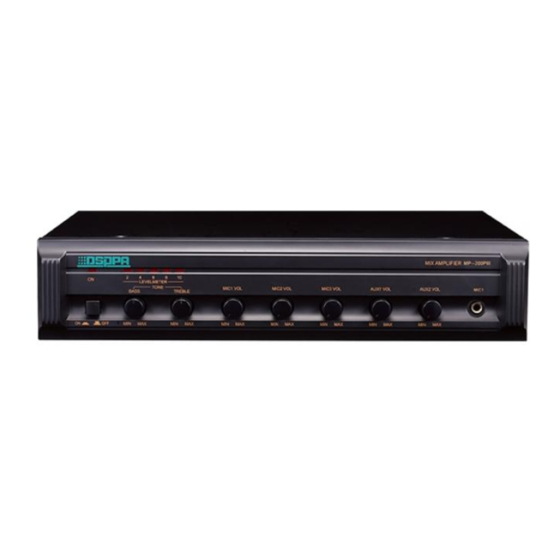

MIX AMPLIFIER MP600PIII
AUX1 VOL
AUX2 VOL
MIC1
MIN
MAX
MIN MAX
Guangzhou DSPPA Audio Co., Ltd
http://www.dsppatech.com
Advertisement
Table of Contents
Related Manuals for DSPPA MP200PIII
Summary of Contents for DSPPA MP200PIII
- Page 1 AUX1 VOL AUX2 VOL MIC1 BASS TREBLE TONE MIN MAX User's Manual Welcome to use DSPPA public address system. For the better use of this product, please read this instruction carefully prior to use. Guangzhou DSPPA Audio Co., Ltd http://www.dsppatech.com...
- Page 2 Mini Amplifier Caution To assure the finest performance, please use or operate the product in accordance with corresponding instructions. This symbol indicates "forbidden content" This symbol indicates "compulsory content" ■ Please make sure that the ■ When the equipment is in use, DO NOT block the air power wire is NOT damaged.
-
Page 3: Table Of Contents
Mini Amplifier Content 1. Features .................................. 1 2. Description of Appearance ............................. 1 2.1 Description of front panel ..........................1 2.2 Description of rear panel ..........................2 3. Connection Diagram ............................... 3 Safety Precautions ..............................4 Matters needing attention ............................4 Packing List ................................ -
Page 4: Features
1. Features Three microphone inputs, two auxiliary inputs, and one AUX output for link. Transformer for the speaker outputs at 100V, 70V and P1. Muting function. Individual volume control. Low and high tone control. A five-element LED level meter is provided for the quick and easy visual monitoring of sound level. -
Page 5: Description Of Rear Panel
2.2 Description of rear panel FUSE TUPE 保险丝规格 广州市迪士普音响科技有限公司 DSPPA MP200P MP300P 100V Guangzhou DSPPA Audio Co.,Ltd. F2AL250V F4AL250V MIC2 MIC3 AUX1 AUX2 ~220-240V/50-60Hz/6A MUTE Nur Sicherung 250V Use Only With A 250V Fuse AUDIO OUTPUTS Employer Unlquement Avec Fusible De 250V 请勿打开，以免触电... -
Page 6: Connection Diagram
3. Connection Diagram AMP. DECK TUNER 100V AUX OUT AUX2 AUX1 MIC3 MIC2 MIX AMPLIFIER MP600PIII LEVELMETER TONE MIC1 VOL MIC2 VOL MIC3 VOL AUX1 VOL AUX2 VOL MIC1 BASS TREBLE Priority MIC or Chairman’s MIC Muting Function This model provides muting function. The inputs from Mic2, Mic3, Aux 1 and Aux 2 are automatically muted by the input from Mic1, as the signal from Mic1 overrides other input signals. -
Page 7: Safety Precautions
For issues and precautions not mentioned in this User Manual, if required, please contact the distributor or visit our website at http://www.DSPPA.com In case of any failure in the warranty period, please contact service personnel (or distributor) of our company for service. -
Page 8: Packing List
SY542 connectors（AV Audio line） Output Insurance Box Mains Line Warranty Card Certificate User’s Manual Specification Note: The performance specifications are subject to changes without further notification. Model MP200PIII MP300PIII MP600PIII MP1000PIII Rated output power 120W 250W 350W ≤3dB (from off-load to full load) - Page 9 All terminals on the device marked with are live and dangerous, and should be connected by trained personnel. Guangzhou DSPPA Audio Co., Ltd ● This is connected to power source via the plug and any failure or danger occurs, the user can disconnect the device from power source by pulling out the plug out from the socket, therefore, it is required that the power socket should be located somewhere with easy access.
