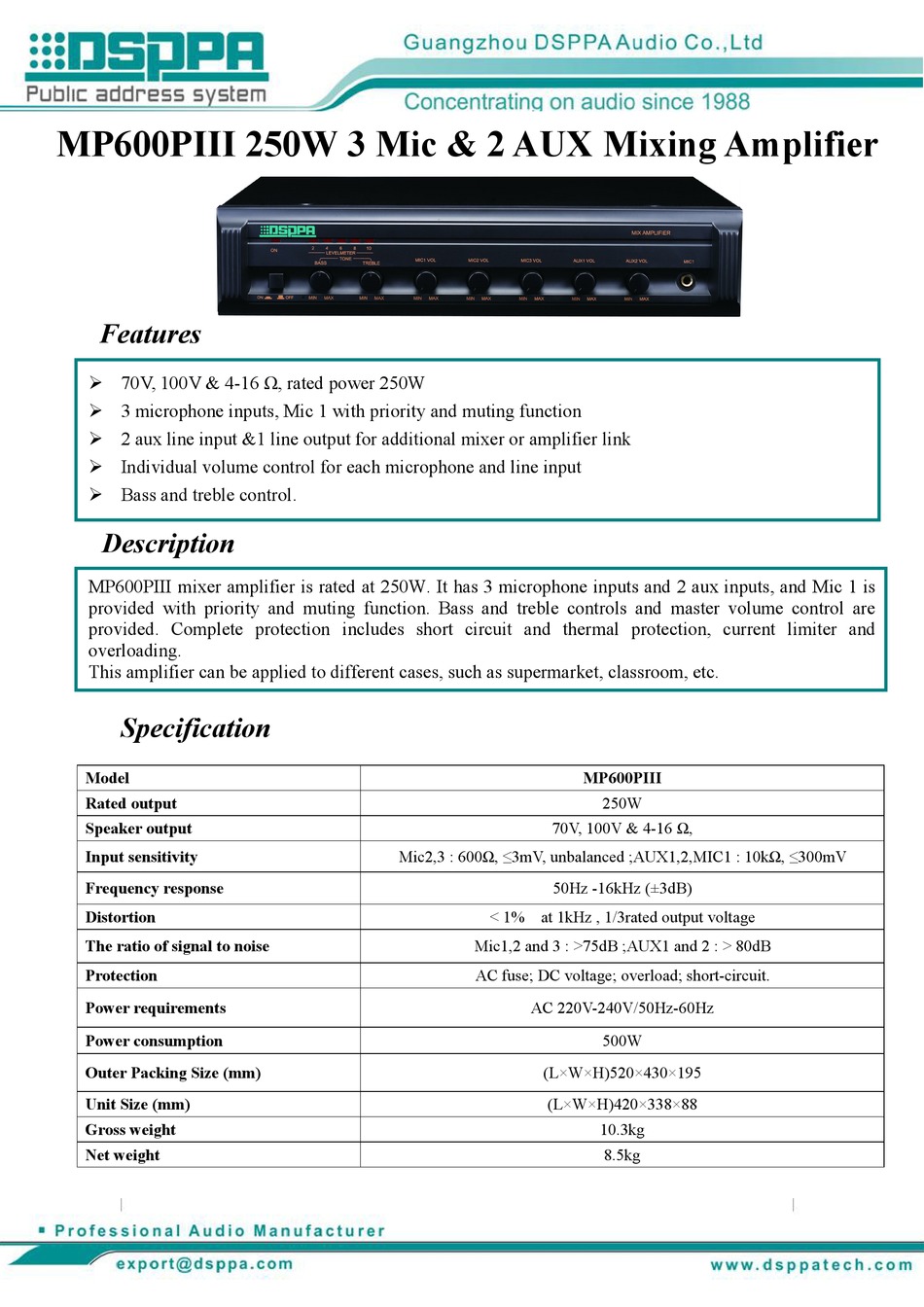

DSPPA MP600PIII Quick Start Manual

1

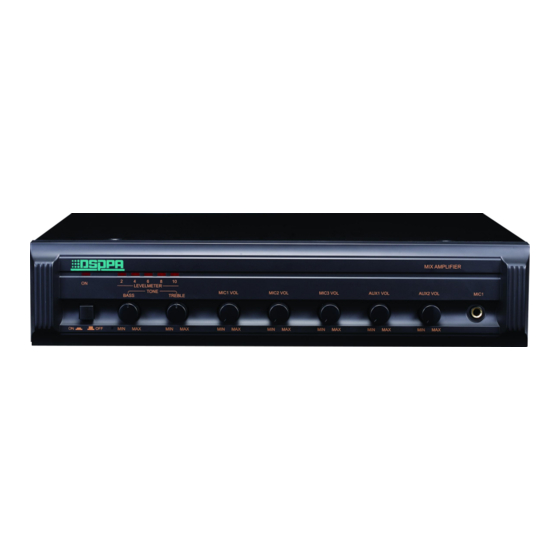

MP600PIII 250W 3 Mic & 2 AUX Mixing Amplifier
2
3
4
5
6
7
8
9
0
1
Features
2
3
4
 70V, 100V & 4-16 Ω, rated power 250W
5
 3 microphone inputs, Mic 1 with priority and muting function
6
 2 aux line input &1 line output for additional mixer or amplifier link
7
8
 Individual volume control for each microphone and line input
9
 Bass and treble control.
0
1
Description
2
3
4
MP600PIII mixer amplifier is rated at 250W. It has 3 microphone inputs and 2 aux inputs, and Mic 1 is
5
provided with priority and muting function. Bass and treble controls and master volume control are
6
provided. Complete protection includes short circuit and thermal protection, current limiter and
7
overloading.
8
This amplifier can be applied to different cases, such as supermarket, classroom, etc.
9
0
1
Specification
2
Model
Rated output
Speaker output
Input sensitivity
Frequency response
Distortion
The ratio of signal to noise
Protection
Power requirements
Power consumption
Outer Packing Size (mm)
Unit Size (mm)
Gross weight
Net weight
3
4
70V, 100V & 4-16 Ω,
Mic2,3 : 600Ω, ≤3mV, unbalanced ;AUX1,2,MIC1 : 10kΩ, ≤300mV
50Hz -16kHz (±3dB)
< 1% at 1kHz , 1/3rated output voltage
Mic1,2 and 3 : >75dB ;AUX1 and 2 : > 80dB
AC fuse; DC voltage; overload; short-circuit.
AC 220V-240V/50Hz-60Hz
(L×W×H)520×430×195
(L×W×H)420×338×88
1
MP600PIII
250W
500W
10.3kg
8.5kg
