Summary of Contents for DSPPA MP2708

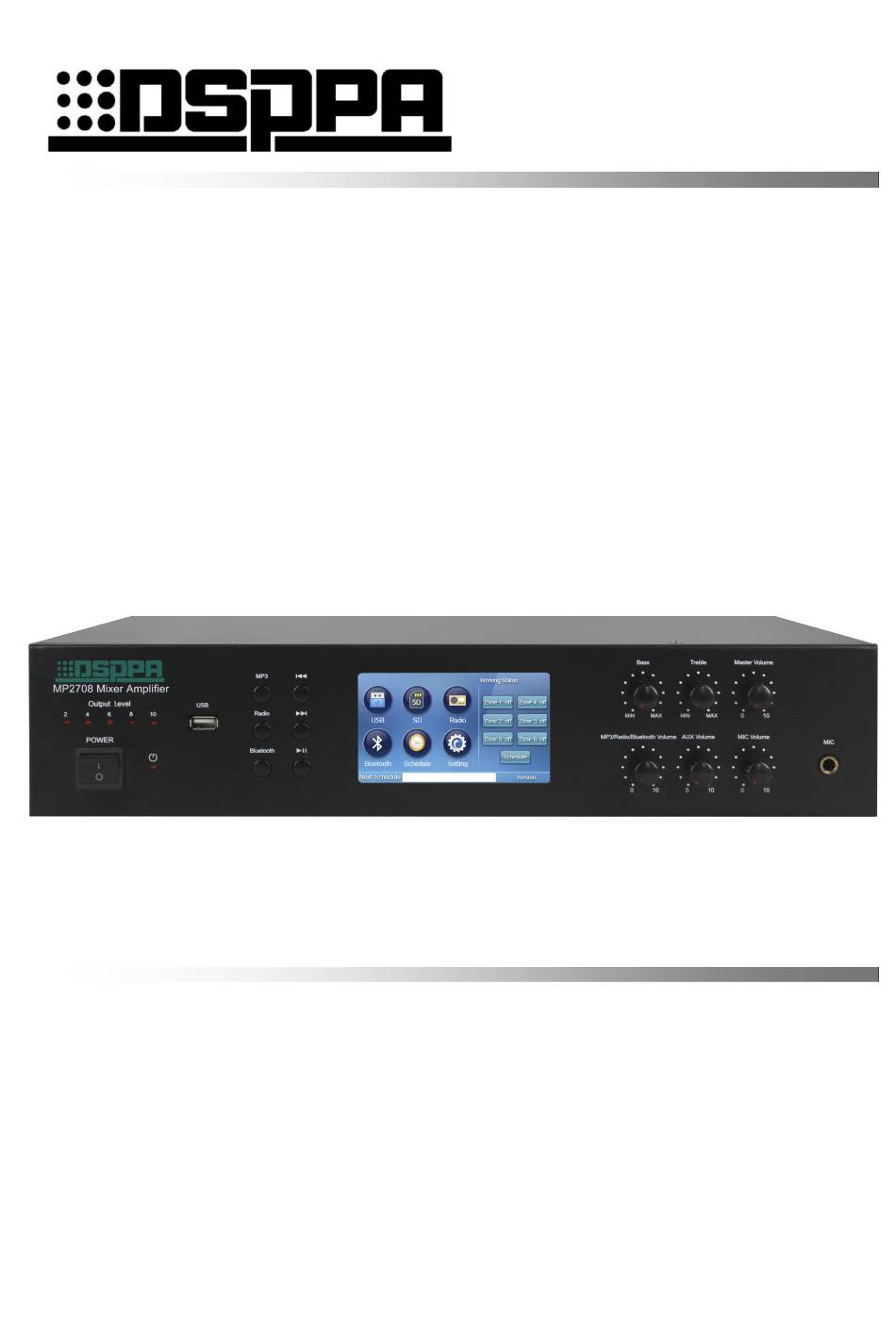

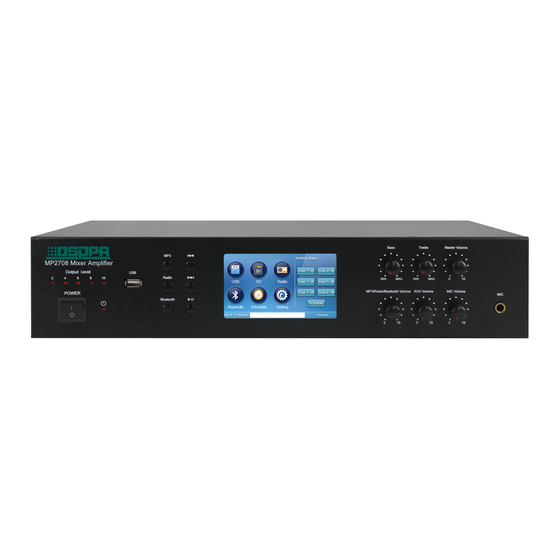

  • Page 1 6 Zones Mixer Amplifier with Sources & Scheduler MP2708 MP2715 MP2725 MP2735 MP2745 MP2765 User’s Manual Welcome to use DSPPA public address system. For the better use of this product, please read this instruction carefully prior to use Guangzhou DSPPA Audio Co., LTD http://www.dsppatech.com...
  • Page 2: Table Of Contents

    Mix Amplifier Content 1. Product Description............................. 1 1.1 Features..............................1 2. Appearance Description............................2 2.1 Front panel..............................2 2.2 Rear panel..............................3 3. Operational Guidelines............................. 4 3.1 General Operation........................... 4 3.2 Operation of Microphone........................... 9 3.3 External audio source..........................9 Packing list................................10...
  • Page 3: Product Description

    Mix Amplifier 1. Product Description 1.1 Features  Support USB/SD/MP3/AM & FM/Bluetooth/schedule player  6 zones output with separated switch control  4.3” TFT capacitance touch screen.  Touch and button-pressing control. Can operate with physical buttons when touch screen is broken. ...
  • Page 4: Appearance Description

    Mix Amplifier 2. Appearance Description 2.1 Front panel 1. Power switch Power indicator 3. USB port It is used to connect external MP3 program memory and it can be connected to ordinary flash drive. (Note: Before inserting and pulling out the flash drive, please turn off the machine power first.) 4.
  • Page 5: Rear Panel

    Mix Amplifier 2.2 Rear panel 1. AM/FM antenna please turn off the machine first.) 5.Zone output terminal Connect the AM/ FM antenna when using the radio. Connect with speakers in 6 zones, can be 2.Aux input interface controlled at random. Connect such other sources as CD, tuner, deck 6.Power wire and so on.
  • Page 6: Operational Guidelines

    Mix Amplifier 3. Operational Guidelines. 3.1 G e n e r a l Operation Turn on the power and the machine will boot into following start interface: Wait for 10 seconds then get into the interface (Figure 1)- host interface, and operation will start as below: Figure 1: Interface of the host 1)USB / SD Card music As the picture above shows, press flash drive’s or SD ‘s music button and you will go into MP3 music...
  • Page 7 Mix Amplifier Figure 2:MP3 playing interface (2)Radio In homepage, press radio button and you will go into radio play interface, which is showed as figure 3. In this interface, press return button and you will go back to main menu. Figure 3: Radio interface Operation in radio interface:...
  • Page 8 Mix Amplifier 3)Bluetooth music source In the home menu interface, press Bluetooth music source button and users will go into Bluetooth music interface as shown as figure 4. Press return button and you will go back to the home menu. Figure 4:Bluetooth music source playing interface In the above interface, the MP3 and radio source will automatically be turned off and switched to Bluetooth sound source.
  • Page 9 Mix Amplifier Figure 6:schedule point browsing interface As the interface shown in figure 6,you can see schedule points that you saved. The contents of the schedule point includes serial number, time when to conduct the schedule point,the week carried out,sound source that is going to play, program name and zone on or off.
  • Page 10 Mix Amplifier Figure 7:schedule point browsing interface Choose FM Choose Figure 8:schedule point browsing interface (5)System setting Choose system setting button in main interface and you will enter the system setting interface. In this interface, you can change or adjust the current system time in addition to setting schedule points.You also can set back- light(always bright and automatic)and touch sound controlling(yes/no)...
  • Page 11: Operation Of Microphone

    Mix Amplifier Figure 10: System Setup Interface (6) Zone / program settings In the main interface, press the "zone 1:", "zone 2:" icon button and users can turn on or off the output of two zone speakers: in the main interface, press the "program" or "manual" icon button and users can switch the current controlling state, in the program-controlled state.
  • Page 12: Packing List

    350W 450W 560W 800W Size(L×W×H) 418×338×88mm Packing list List Quantity MP2708/ MP2715/ MP2725/ MP2735/ MP2745/ MP2765 Manual Guarantee Card Conformity Certification 1.5M Audio Cable in RCA FM/AM Antenna Cable Bluetooth Antenna 8G SD card Guangzhou DSPPA Audio Co., Ltd. - 10 -...
