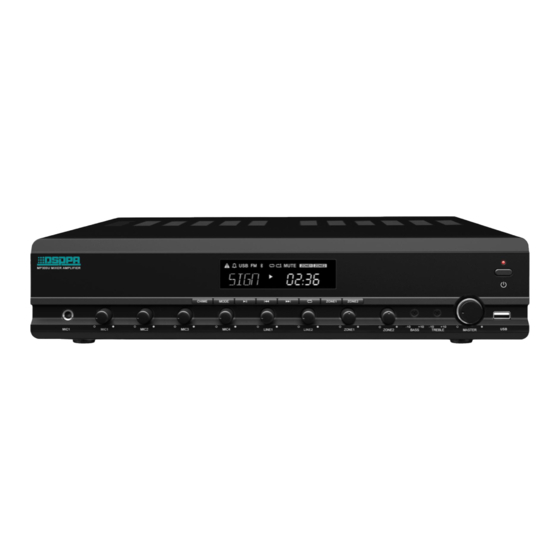

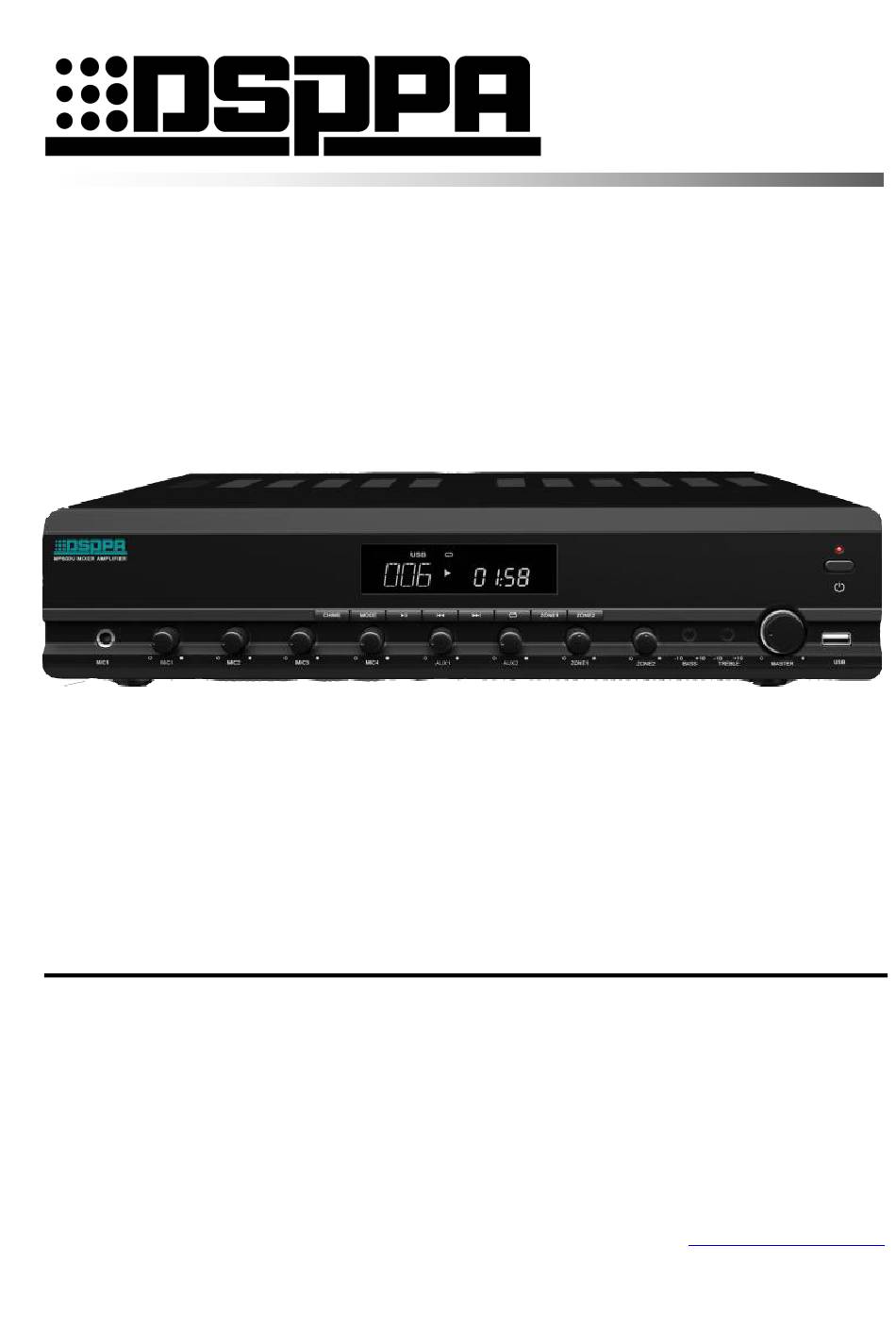

- Page 1 Public Address System Mixer Amplifier MP200U MP300U MP600U MP1000U User Manual Thank you for using our DSPPA public address system. Please read this User Manual carefully to make better use of this equipment. Guangzhou DSPPA Audio Co., Ltd. http://www.DSPPA.com http://www.dsppatech.com...
- Page 2 Matters needing attention Please read the following before operating the product. Warning The following basic requirements must be strictly observed, to avoid potential personal injury and equipment or property damages to you or any person nearby. The basic requirements include without limitation to the following: Power source/power cable When abnormal conditions are realized...
-
Page 3: Table Of Contents
PA Mixer Amplifier Content 1.Product Instruction..............................2 2. Feature..................................3 3. Description of Appearance............................4 3.1 Description of front panel..........................4 3.2 Description of rear panel..........................5 4. Connection Diagram..............................6 5. Operation Instruction..............................7 Specification................................11... -
Page 4: Feature
1. Product Description This is a newly developed combined amplifier of DSPPA. Total MP200U/ MP300U/ MP600U/ MP1000U four models, with open mold plastic panel, standard 2U cabinet type, chassis and cover plate on both sides of the circular design, is the only design of the industry, filling the appearance of exquisite and elegant. -
Page 5: Description Of Appearance
PA Mixer Amplifier 3. Description of Appearance 3.1 Description of Front Panel 1. LCD Screen 9. Zone 2 selection key 17. Zone 1 Volume Control 2. Chime Button 10. Power On/Off Switch 18. Aux 2 Input Volume Control 3. Mode Selection Key 11. -
Page 6: Description Of Rear Panel
PA Mixer Amplifier 3.2 Description of Rear Panel 5 6 7 10 11 12 13 1. 24V DC Input Interface 12. Line out 2. Zone 1 Speaker Output 13. Expanded preamplifier Interface 3. Zone 2 Speaker Output 14. FM Tuner Antenna 4. -
Page 7: Connection Diagram
PA Mixer Amplifier 4. Connection Diagram Recorderor Tuner, CD, anotherAmp Cassette To MIC 1 ckon Input Ja Recorderor Tuner, CD, anotherAmp. Cassette To MIC 1 ckon Input Ja MIC 1 with Priority... -
Page 8: Operation Instruction
PA Mixer Amplifier 5. Operation Instruction 16 15 14 1. Screen 9. Zone 2 17. Zone 1 Volume 2. Chime 10. Power Switch 18. AUX 2 Input Volume 3. Mode selection key 11. Power Indicator 19. AUX 1 Input Volume 4. - Page 9 PA Mixer Amplifier Press button 4 under normally running status. The device will play or pause under “BT” and “USB” mode. It will mute. Long press the button and it will start to search radio stations and save searched ones. Press button 5 under normally running status.
- Page 10 PA Mixer Amplifier decrease. 15. BASS switch This switch is to adjust bass under any mode. Switch clockwise to increase. Switch Counterclockwise to decrease. 16. Zone 2 switch This switch is to control volume of zone 2. Switch clockwise to volume up. Switch Counterclockwise to volume down.
- Page 11 PA Mixer Amplifier down. 22. MIC 2 switch This switch is to control volume of MIC 2. Switch clockwise to volume up. Switch Counterclockwise to volume down. 23. MIC 1 switch This switch is to control volume of MIC 1. Switch clockwise to volume up. Switch Counterclockwise to volume down.
-
Page 12: Specification
PA Mixer Amplifier 8. Siren Volume 19. Gain Adjustment 9. Chime Volume 20. Mic 2, 3, 4 Interface 10. Aux Input 1 21. 48V Phantom Power 11. Aux Input 2 22. AC Power Interface 1. 24V Input Interface 2. Zone 1 Output Connect positive electrode of constant voltage speakers to interface “100V”... - Page 13 PA Mixer Amplifier 8. Siren volume This switch is to control volume of alarm. Switch clockwise to volume up. Switch Counterclockwise to volume down. 9. Chime volume This switch is to control volume of Chime. Switch clockwise to volume up. Switch Counterclockwise to volume down.
- Page 14 PA Mixer Amplifier 14. FM 15. Fan Port 16. Electromagnetic compatible Interface 17. Paging Mic Interface 18. Dialing switch 19. Gain Adjustment 20. Mic 2, 3, 4 Interface 21. 48V Phantom Power 22. AC Power Interface...
- Page 15 PA Mixer Amplifier 1. On/off 2. EQ. Under MP3 playing mode, you can choose different sound effect- Classic, Jazz, Rock, Mega bass and Pop. Under TUNER mode, you can play radios that have been saved. 3. Rewind/Previous song 4. Number button 5.
- Page 16 PA Mixer Amplifier Safety Precautions 1. Safety Precautions Please do NOT connect this device to the power source, before the system is correctly wired. It is important to ensure that input voltage to the device is the same as required voltage of the device, ...
- Page 17 PA Mixer Amplifier Specification Note: The performance specifications are subject to changes without further notification. Item MP200U MP300U MP600U MP1000U Rated output power 120W 250W 350W MIC1 :5mv (unbalanced 6.35 interface input) MIC2-MIC4:±5mv (balanced XLR input) Input sensitivity AUX IN:300mv±30mv(unbalanced RCA input) EMC IN:375mv±30mv(unbalanced terminal)
- Page 18 ● This is connected to power source via the plug and any failure or danger occurs, the user can disconnect the device from power source by pulling out the plug out from the socket, therefore, it is required that the power socket should be located somewhere with easy access. Guangzhou DSPPA Audio Co., Ltd...
