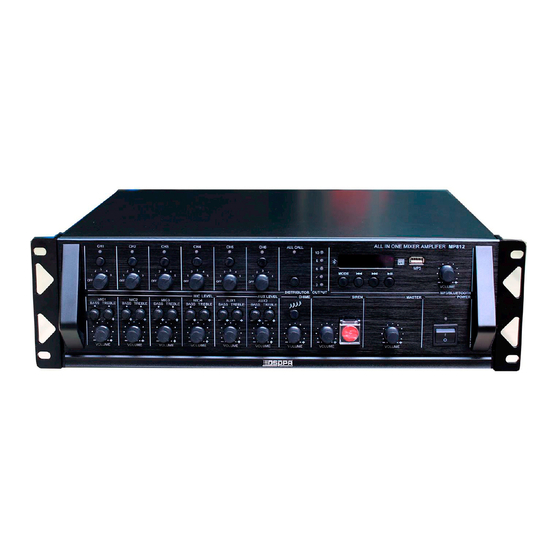

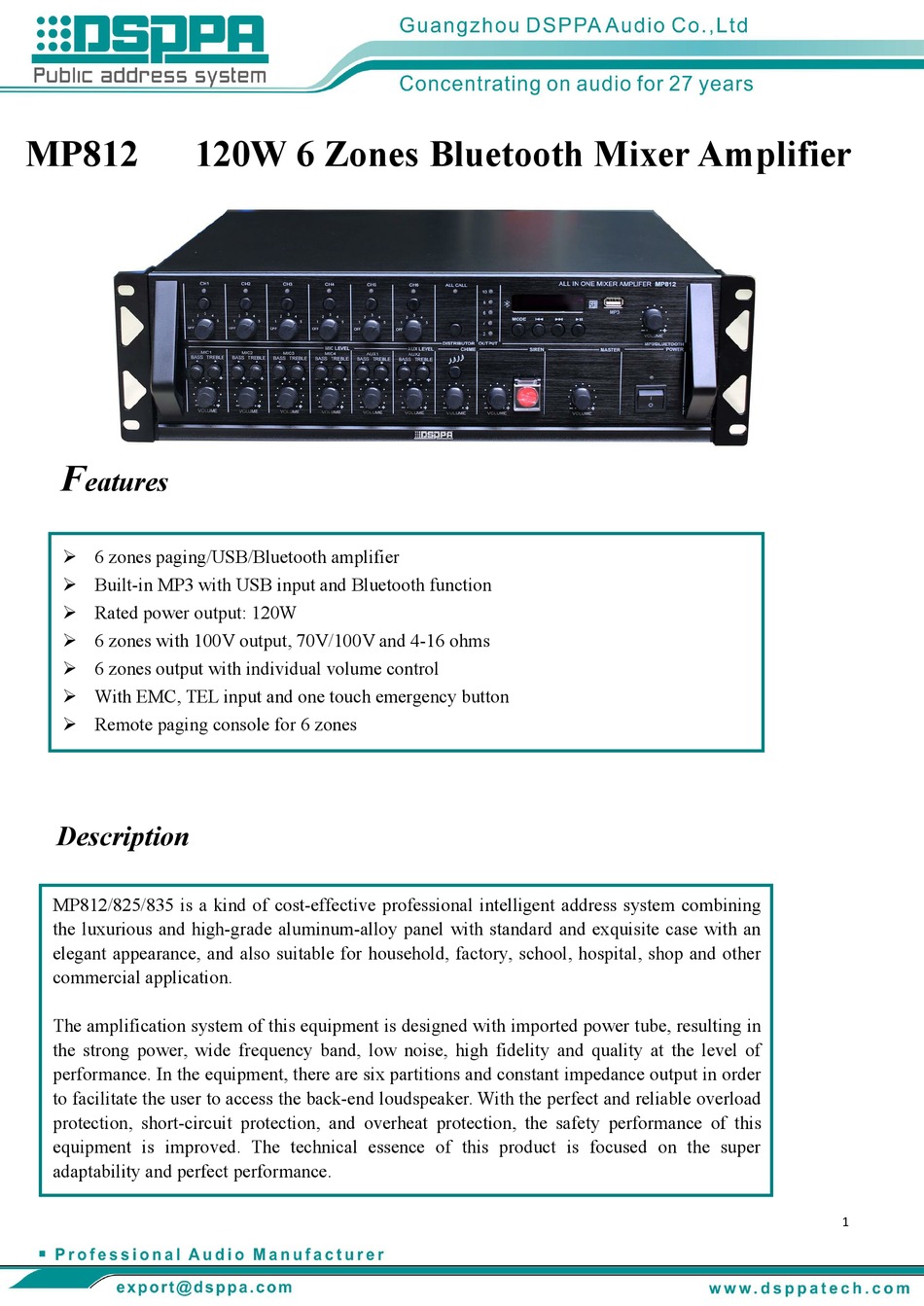

MP812
120W 6 Zones Bluetooth Mixer Amplifier
F
eatures
 6 zones paging/USB/Bluetooth amplifier
 Built-in MP3 with USB input and Bluetooth function
 Rated power output: 120W
 6 zones with 100V output, 70V/100V and 4-16 ohms
 6 zones output with individual volume control
 With EMC, TEL input and one touch emergency button
 Remote paging console for 6 zones
Description
MP812/825/835 is a kind of cost-effective professional intelligent address system combining
the luxurious and high-grade aluminum-alloy panel with standard and exquisite case with an
elegant appearance, and also suitable for household, factory, school, hospital, shop and other
commercial application.
The amplification system of this equipment is designed with imported power tube, resulting in
the strong power, wide frequency band, low noise, high fidelity and quality at the level of
performance. In the equipment, there are six partitions and constant impedance output in order
to facilitate the user to access the back-end loudspeaker. With the perfect and reliable overload
protection, short-circuit protection, and overheat protection, the safety performance of this
equipment is improved. The technical essence of this product is focused on the super
adaptability and perfect performance.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP812 and is the answer not in the manual?

Questions and answers

Related Manuals for DSPPA MP812

Summary of Contents for DSPPA MP812

  • Page 1  Remote paging console for 6 zones Description MP812/825/835 is a kind of cost-effective professional intelligent address system combining the luxurious and high-grade aluminum-alloy panel with standard and exquisite case with an elegant appearance, and also suitable for household, factory, school, hospital, shop and other commercial application.
  • Page 2 Type MP812 MP825 MP835 Rated power 120W 250W 350W Constant voltage output 70V, 100V Constant impedance output 4-16Ω (balanced, not grounded) Line input sensitivity 300mV(±50mV), 1kHz/unbalanced; 3.0mV(±0.5mV), 1kHz/unbalanced; Microphone input sensitivity 5.5mV(±0.5mV), 1kHz/balanced EMC input sensitivity 300mV(±50mV), 1kHz/unbalanced; Telephone...

  • Page 3: Description Of Appearance

    II. Description of Appearance 2.1 Description of Front Panel 1 2 3 ALL IN ONE MIXER AMPLIFER MP812 ALL CALL B L U E MODE VOLUME DISTRIBUTOR OUTPUT MP3/BLUETOOTH MIC LEVEL AUX LEVEL CHIME SIREN MASTER POWER MIC1 MIC2 MIC3...
  • Page 4 Taking central position as benchmark, turn counterclockwise to attenuate the treble, and turn clockwise to enhance the treble, and then MIC2, MIC3, MIC4 and so on. Auxiliary input AUX1 bass adjustment knob BASS Taking central position as benchmark, turn counterclockwise to attenuate the base, and turn clockwise to enhance the base, and so on.

  • Page 5: Description Of Rear Panel

    DO NOT OPEN FB-AC F4AL F6AL F8AL ATTENTION: FB-DC F15AL F25AL F30AL RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR 4-16? Guangzhou DSPPA Audio Co.,Ltd. PHANTOM PHANTOM PHANTOM PHANTOM FB-AC Nur Sicherung 250V PUSH PUSH PUSH PUSH Use Only With A 250V Fuse...
