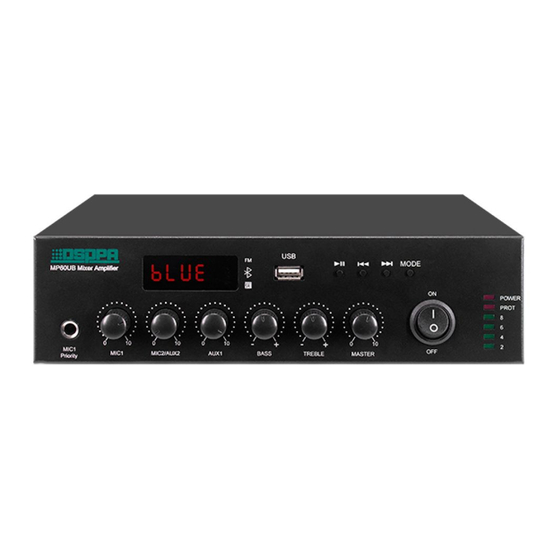

- Page 1 Public Address System Mini Mixer Amplifier MP35UB MP60UB Operation Instructions Welcome to use DSPPA public address system. For the better use of this product, please read this instruction carefully prior to use. Guangzhou DSPPA Audio Co., Ltd http://www.dsppatech.com - 1 -...
- Page 2 About this User Manual This User Manual is available and effective upon completion of development of the mixer amplifier MP35UB/MP60UB. The User Manual includes system description, matters needing attentions in use, instructions on system connection, instructions on use of product and technical specifications of the network address center. Please read this User Manual carefully before connection, installation and use and operate in accordance with corresponding instructions in the Manual.
-
Page 3: Table Of Contents
Contents 1. Product Description ................................ 1 1.1 Features ..................................1 2. Appearance Description ..............................1 2.1 Front panel ................................1 2.2 Rear panel ................................3 2.3 Side Panel ................................. 4 3. Working mode ................................4 3.1 MIC mode ................................4 3.2 Bluetooth mode ................................ -
Page 4: Product Description
1. Product Description 1.1 Features Fashionable design, compact mini size public address amplifier. Speaker output of 100V or 70V & 4 -16 ohms，rated power outputs of 60W, 35W. Built in Mp3 player, FM radio & Bluetooth with remote controller. ... - Page 5 In FM mode, this key is to search the audio automatically Last song/（Last radio when in FM mode） In USB and Bluetooth mode, press this key to switch to the “last song”, In FM mode, press this key to switch to the “last radio” In FM/Bluetooth/USB mode, long press this key to turn down the volume Next song/（Next radio when in FM mode）...
-
Page 6: Rear Panel
2.2 Rear panel AC~110-240V 50/60Hz Power input The interface to supply the working power. Insert the plug onto the machine, and then connect the power grid. Radio antenna interface Radio antenna connect to this interface DC 24V power input DC 24V stand-by power input interface Audio power output Note: No terminal is connectable to “Earth wire”... -
Page 7: Side Panel
2.3 Side Panel Heat dissipation vent 3. W orking mode 3.1 MIC mode When the Microphone is broadcasting in any mode, the system will detect the MIC and mute the others sources. It will return to the original play status when the MIC has no signal. 3.2 Bluetooth mode Press MODE to display “BLUE”... -
Page 8: Remote Control Instructions
4. Remote control instructions As shown in the following figure: Function key description： ① Mode main function key，working mode switch. ② Power switch (only control Bluetooth/USB/FM) ③ Play & Pause/（Search the audio aromatically when in FM) ④ EQ sound effect ⑤... -
Page 9: Safety Precautions
Safety Precautions 1. Safety Precautions Please do NOT connect this device to the power source, before the system is correctly wired. It is important to ensure that input voltage to the device is the same as required voltage of the device; otherwise the device may be damaged. -
Page 10: Packing List
Packing list List Quantity MP35UB or MP60UB Manual Power line Remote control FM antenna 4P 5.08 wiring terminal 2P 3.81 wiring terminal Performance Model MP35UB MP60UB Description PA Amplifier with USB/SD & FM & Bluetooth Rated power Speaker Outputs 100V or 70V & 4Ohms-8 Ohms-16 Ohms Mic1 input by unbalance 6.3mm phone jack... - Page 11 ● This is connected to power source via the plug and any failure or danger occurs, the user can disconnect the device from power source by pulling out the plug out from the socket, therefore, it is required that the power socket should be located somewhere with easy access. Guangzhou DSPPA Audio Co., Ltd.
- Page 12 Warning Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
